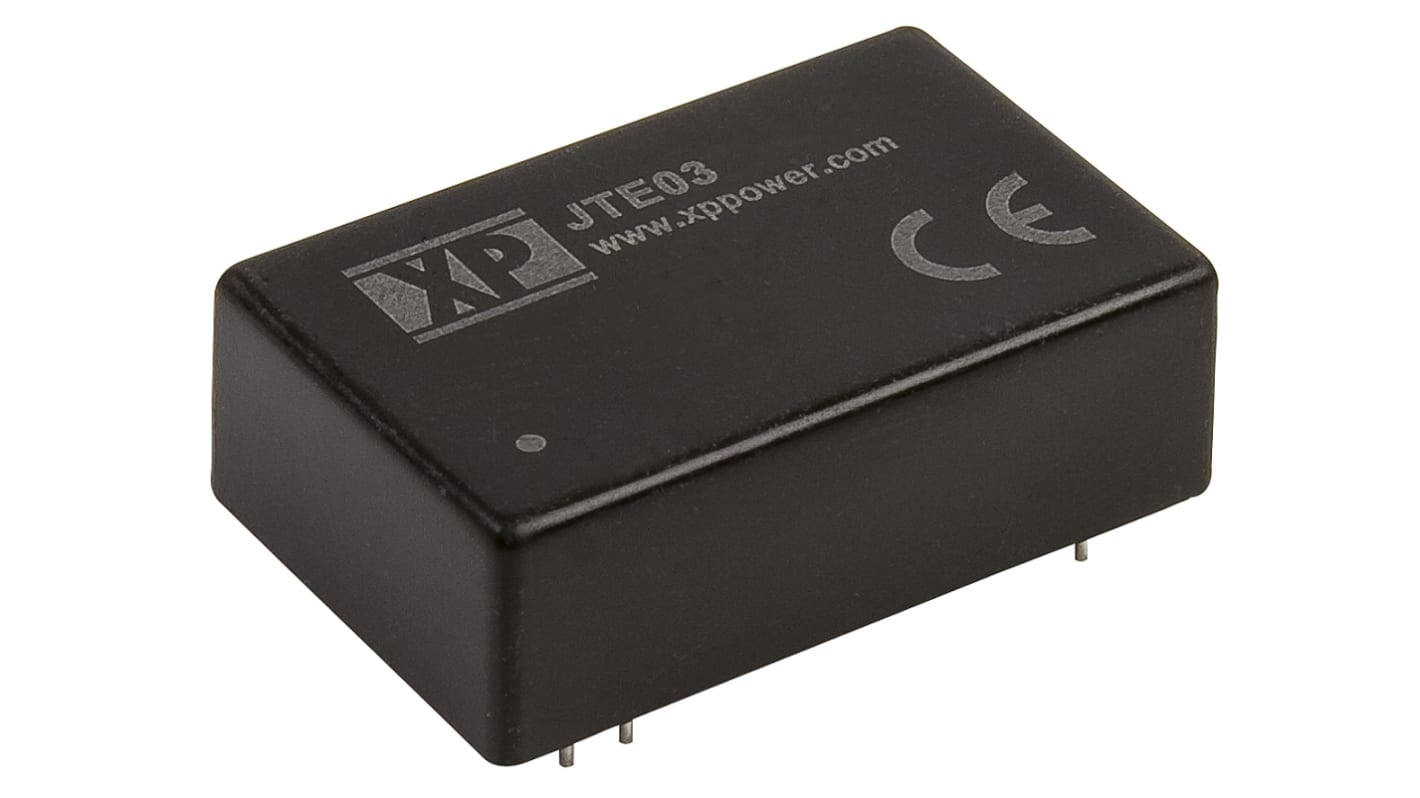

XP Power JTE03 DC-DC Converter, 5V dc/ 600mA Output, 18 → 75 V dc Input, 3W, Through Hole, +100°C Max Temp -40°C
- RS Stock No.:
- 167-2233
- Mfr. Part No.:
- JTE0348S05
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 10 units)*
£121.82
(exc. VAT)
£146.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £121.82 | £12.182 |
| 5 - 9 | £118.17 | £11.817 |
| 10 - 24 | £114.51 | £11.451 |
| 25 - 49 | £110.86 | £11.086 |
| 50 + | £107.19 | £10.719 |
*price indicative
- RS Stock No.:
- 167-2233
- Mfr. Part No.:
- JTE0348S05
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 600mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 31.75mm | |
| Width | 20.32mm | |
| Depth | 10.16mm | |
| Series | JTE03 | |
| Load Regulation | ±1.2% | |
| Maximum Temperature | +100°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 79% | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 600mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Length 31.75mm | ||
Width 20.32mm | ||
Depth 10.16mm | ||
Series JTE03 | ||
Load Regulation ±1.2% | ||
Maximum Temperature +100°C | ||
Minimum Temperature -40°C | ||
Efficiency 79% | ||
