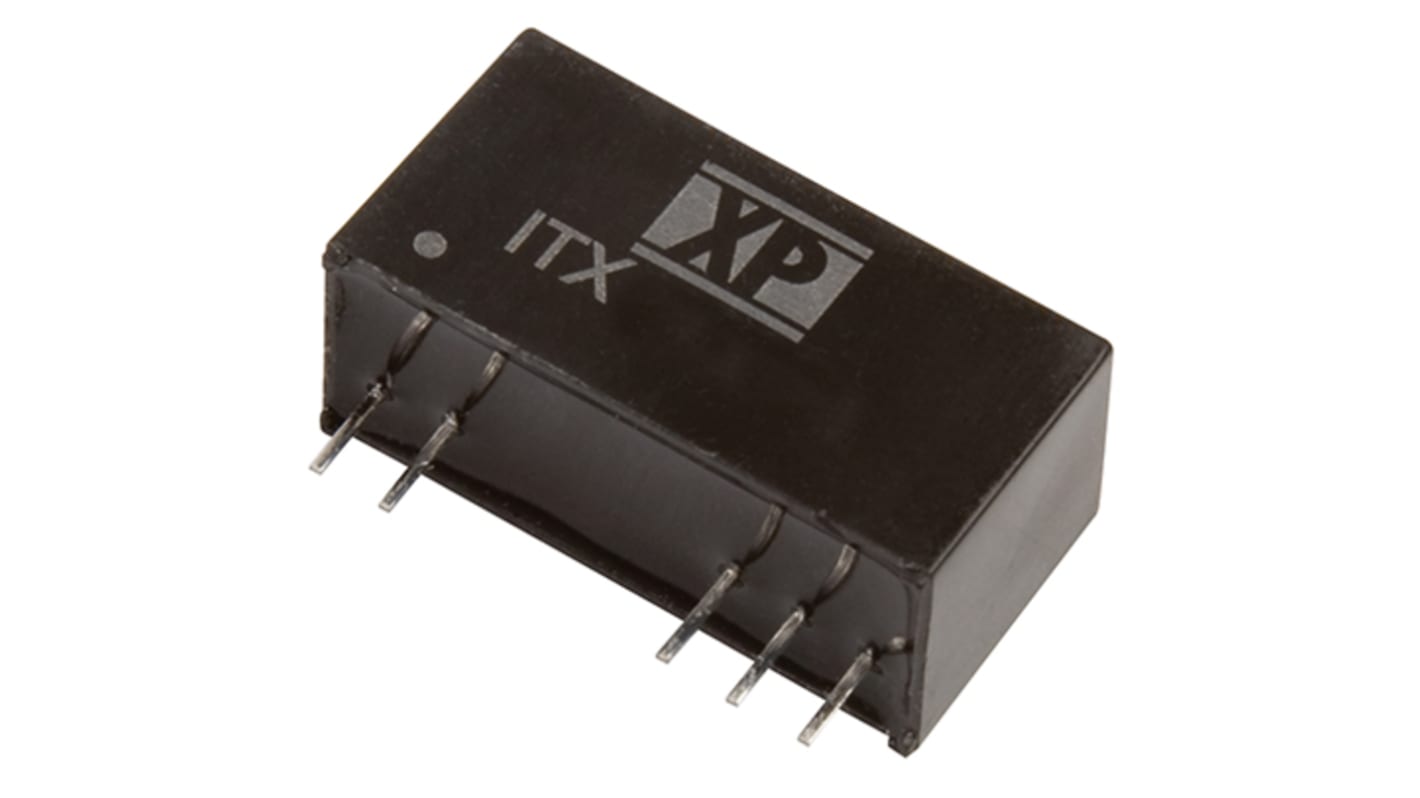

XP Power ITX DC-DC Converter, ±15V dc/ ±200mA Output, 36 → 75 V dc Input, 6W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 167-2195
Mfr. Part No.:: ITX4815S
Brand:: XP Power

XP Power ITX DC-DC Converter, ±15V dc/ ±200mA Output, 36 → 75 V dc Input, 6W, Through Hole, +90°C Max Temp -40°C

Available to back order for despatch 28/11/2024

Price 1 Tube of 20

£356.13

(exc. VAT)

£427.36

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£356.13	£17.806
5 - 9	£345.45	£17.272
10 - 24	£334.76	£16.738
25 - 49	£324.08	£16.204
50 +	£313.39	£15.67

*price indicative

RS Stock No.:: 167-2195
Mfr. Part No.:: ITX4815S
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	36 → 75 V dc
Power Rating	6W
Input Voltage Nominal	48 V dc
Output Current	±200mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 8
Isolation Voltage	1.5kV dc
Length	21.85mm
Depth	11.1mm
Width	9.2mm
Series	ITX
Load Regulation	±1%
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
Efficiency	85%
Minimum Temperature	-40°C
Maximum Temperature	+90°C

XP Power ITX DC-DC Converter, ±15V dc/ ±200mA Output, 36 → 75 V dc Input, 6W, Through Hole, +90°C Max Temp -40°C

XP Power - ITX Series of Isolated DC-DC Converters
