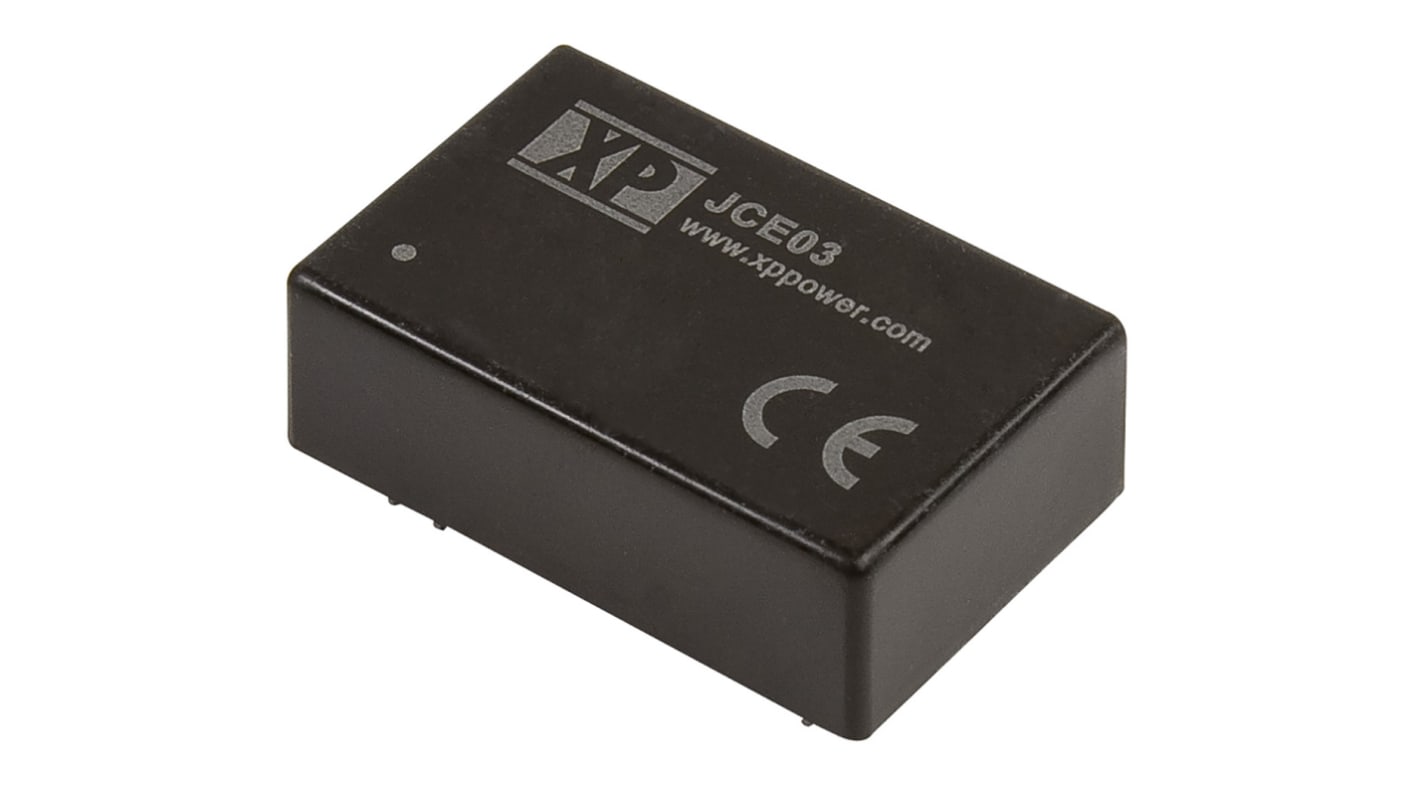

XP Power JCE03 DC-DC Converter, 5V dc/ 600mA Output, 36 → 75 V dc Input, 3W, Through Hole, +100°C Max Temp -40°C
- RS Stock No.:
- 167-2060
- Mfr. Part No.:
- JCE0348S05-H
- Brand:
- XP Power
Available to back order for despatch 15/10/2024
Added
Price 1 Tube of 10
£136.81
(exc. VAT)
£164.17
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £136.81 | £13.681 |
| 5 - 9 | £132.71 | £13.271 |
| 10 - 24 | £128.60 | £12.86 |
| 25 - 49 | £124.50 | £12.45 |
| 50 + | £120.39 | £12.039 |
| *price indicative | ||
- RS Stock No.:
- 167-2060
- Mfr. Part No.:
- JCE0348S05-H
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCE03 Series of Isolated DC-DC Converters
The JCE03 series from XP Power offers a highly reliable range of fully regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1500 VDC in isolation (3000 VDC option available) and is available in an industry standard DIP24 package. These compact DC-DC converters feature a 2:1 input range, no minimum load requirements and a wide -40 °C to +90 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.
3 W, Isolated DC-DC converters
1500 VDC in isolation, 3000 VDC option available
Regulated single and dual output
Industry standard DIP24 package
No minimum load requirement
Wide -40 °C to +90 °C operating temperature range
1500 VDC in isolation, 3000 VDC option available
Regulated single and dual output
Industry standard DIP24 package
No minimum load requirement
Wide -40 °C to +90 °C operating temperature range
XP Power Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 36 → 75 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 3kV dc |
| Depth | 10.16mm |
| Length | 31.75mm |
| Width | 20.32mm |
| Series | JCE03 |
| Load Regulation | ±1.2% |
| Efficiency | 79% |
| Maximum Temperature | +100°C |
| Minimum Temperature | -40°C |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
