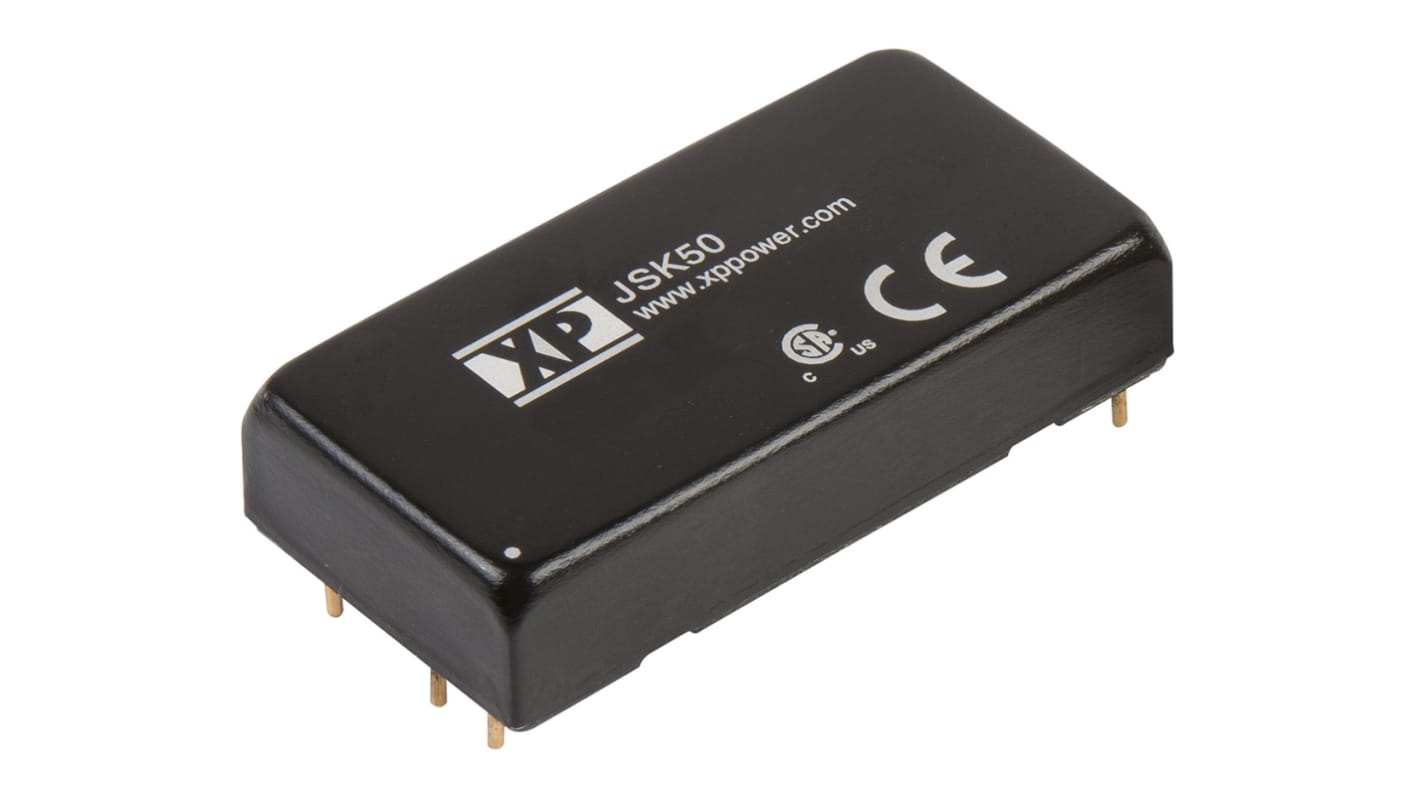

XP Power JSK50 DC-DC Converter, 24V dc/ 2.08A Output, 18 → 36 V dc Input, 50W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2023
Mfr. Part No.:: JSK5024S24
Brand:: XP Power

XP Power JSK50 DC-DC Converter, 24V dc/ 2.08A Output, 18 → 36 V dc Input, 50W, Through Hole, +105°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£759.40

(exc. VAT)

£911.28

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£759.40	£75.94
5 - 9	£739.66	£73.966
10 - 24	£720.67	£72.067
25 - 49	£703.20	£70.32
50 +	£686.50	£68.65

*price indicative

RS Stock No.:: 167-2023
Mfr. Part No.:: JSK5024S24
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	18 → 36 V dc
Power Rating	50W
Input Voltage Nominal	24 V dc
Output Current	2.08A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.5kV dc
Depth	11mm
Width	25.4mm
Length	50.8mm
Series	JSK50
Load Regulation	±0.5%
Maximum Temperature	+105°C
Minimum Temperature	-40°C
Standards Met	EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE, MIL-HDBK-217F, UL/cUL 60950-1

XP Power JSK50 DC-DC Converter, 24V dc/ 2.08A Output, 18 → 36 V dc Input, 50W, Through Hole, +105°C Max Temp

XP Power - JSK50 Series of Isolated DC-DC Converters
