Murata Power Solutions NKE DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C
- RS Stock No.:
- 167-0901
- Mfr. Part No.:
- NKE1205DC
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 tube of 40 units)*
£249.57
(exc. VAT)
£299.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £249.57 | £6.239 |
| 5 - 9 | £242.09 | £6.052 |
| 10 - 24 | £234.60 | £5.865 |
| 25 - 49 | £227.10 | £5.678 |
| 50 + | £219.63 | £5.491 |
*price indicative
- RS Stock No.:
- 167-0901
- Mfr. Part No.:
- NKE1205DC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | PDIP | |
| Isolation Voltage | 3kV dc | |
| Depth | 5.4mm | |
| Length | 11.5mm | |
| Series | NKE | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package PDIP | ||
Isolation Voltage 3kV dc | ||
Depth 5.4mm | ||
Length 11.5mm | ||
Series NKE | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- CN

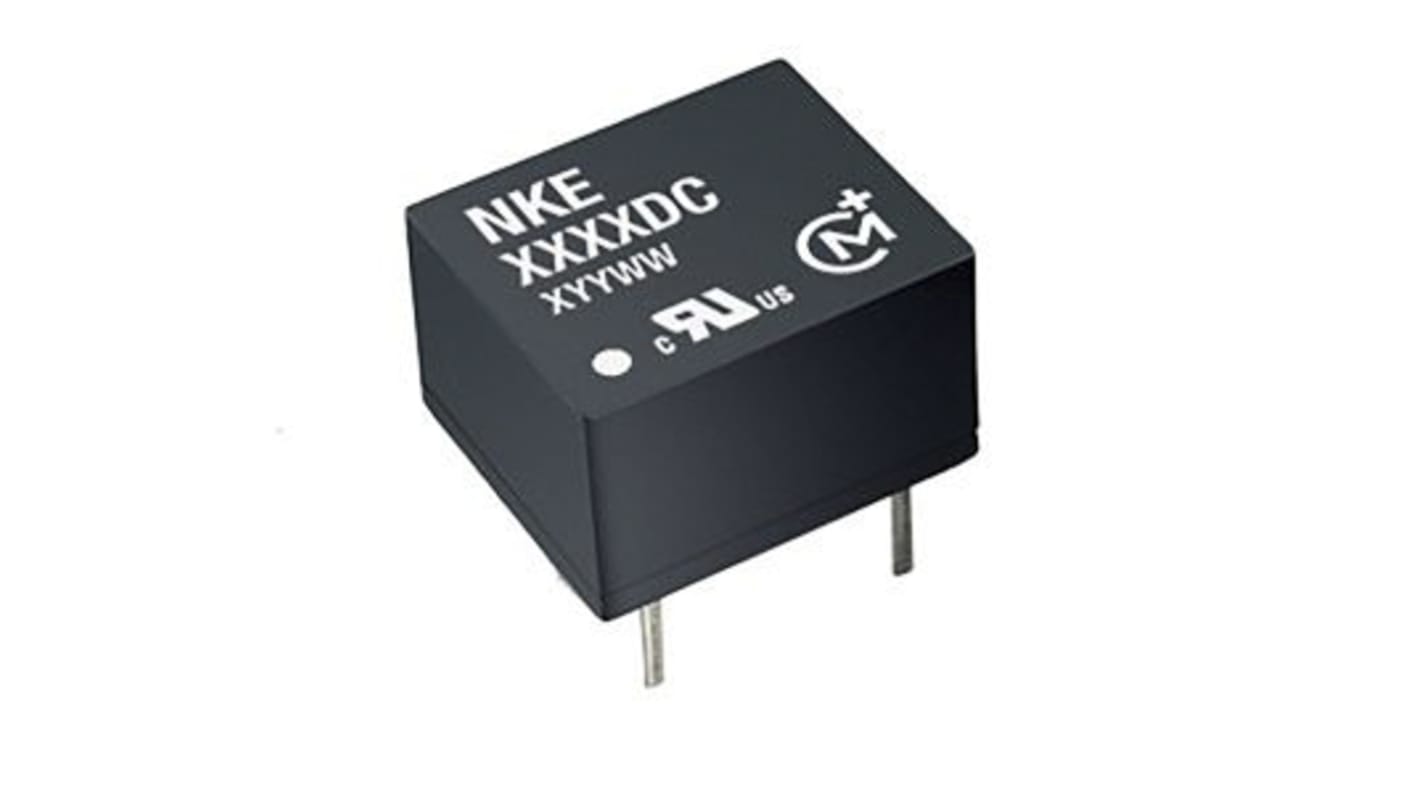

Murata 1W DIP Single Output Unregulated Isolated DC-DC Converter - NKE Series
Isolated sub miniature SIP4 module
3kVdc isolation
Fully encapsulated
UL 94V-0 package material
3kVdc isolation
Fully encapsulated
UL 94V-0 package material
Murata Power Solutions - DIP
