Murata Power Solutions CRE1 DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole,
- RS Stock No.:
- 167-0859
- Mfr. Part No.:
- CRE1S1205SC
- Brand:
- Murata Power Solutions
Available to back order for despatch 13/05/2024
Added
Price 1 Tube of 35
£80.61
(exc. VAT)
£96.73
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £80.61 | £2.303 |
| 5 - 9 | £78.19 | £2.234 |
| 10 - 24 | £75.77 | £2.165 |
| 25 - 49 | £73.36 | £2.096 |
| 50 + | £70.94 | £2.027 |
| *price indicative | ||
- RS Stock No.:
- 167-0859
- Mfr. Part No.:
- CRE1S1205SC
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

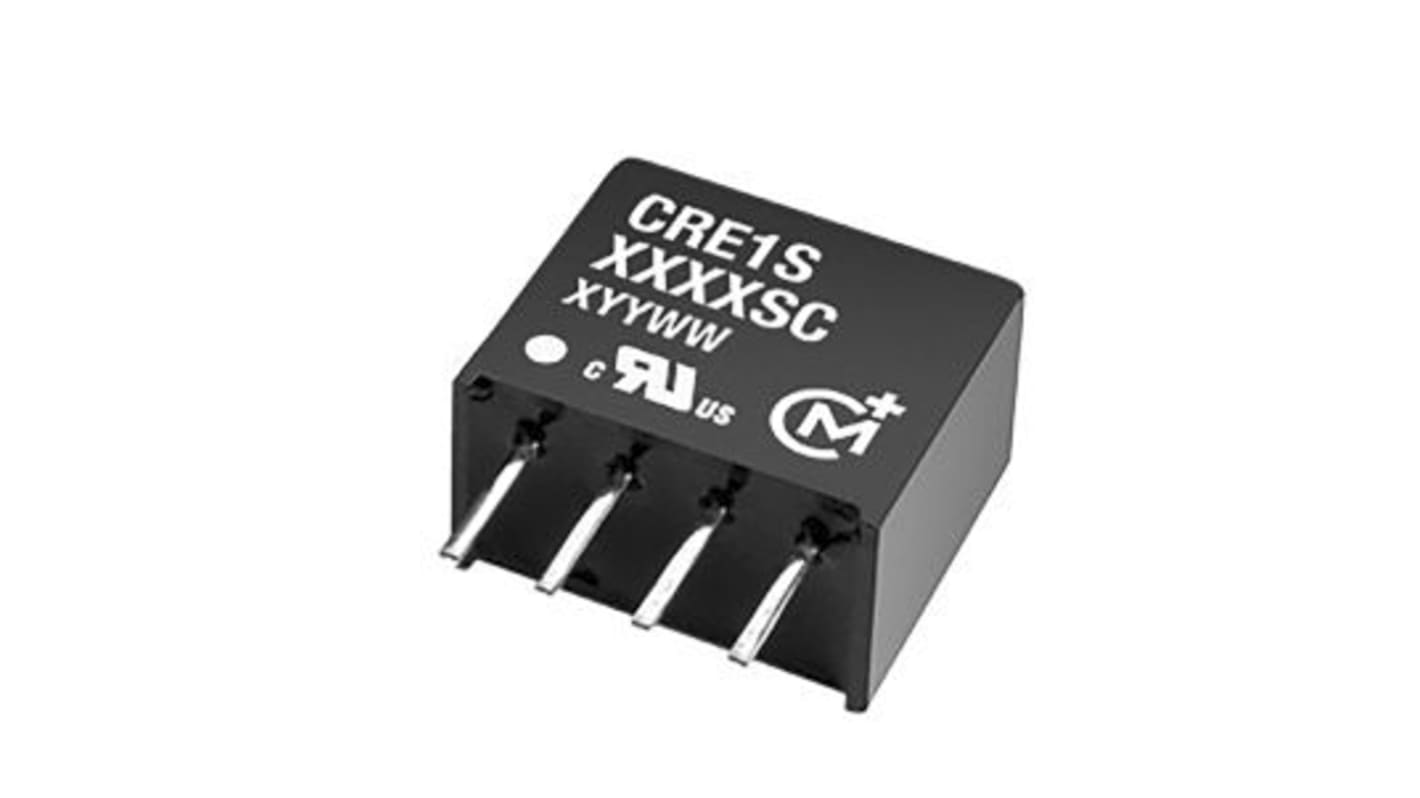

Murata CRE Series Isolated DC-DC Converter
The Murata CRE series is a cost effective isolated DC-DC converter series, constructed within an industry standard package & pinout. The CRE series is a great choice for integration into a wide variety of applications thanks to the standard pinouts & output voltages available. The series can provide a solution to negative rail installations where only positive rails exists, thanks to the series utilising galvanic isolation.
Features and Benefits
Wide full load temperature range of -40°C to + 85°C.
Isolated single output.
Industry standard package & pinout.
Galvanic isolation.
Murata Power Solutions - 0.75W to 15W
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 200mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 4 |
| Isolation Voltage | 1kV dc |
| Length | 11.53mm |
| Width | 6.1mm |
| Depth | 10mm |
| Series | CRE1 |
| Load Regulation | Maximum of 10% |
| Maximum Temperature | +85°C |
| Efficiency | 71% |
| Minimum Temperature | -40°C |
