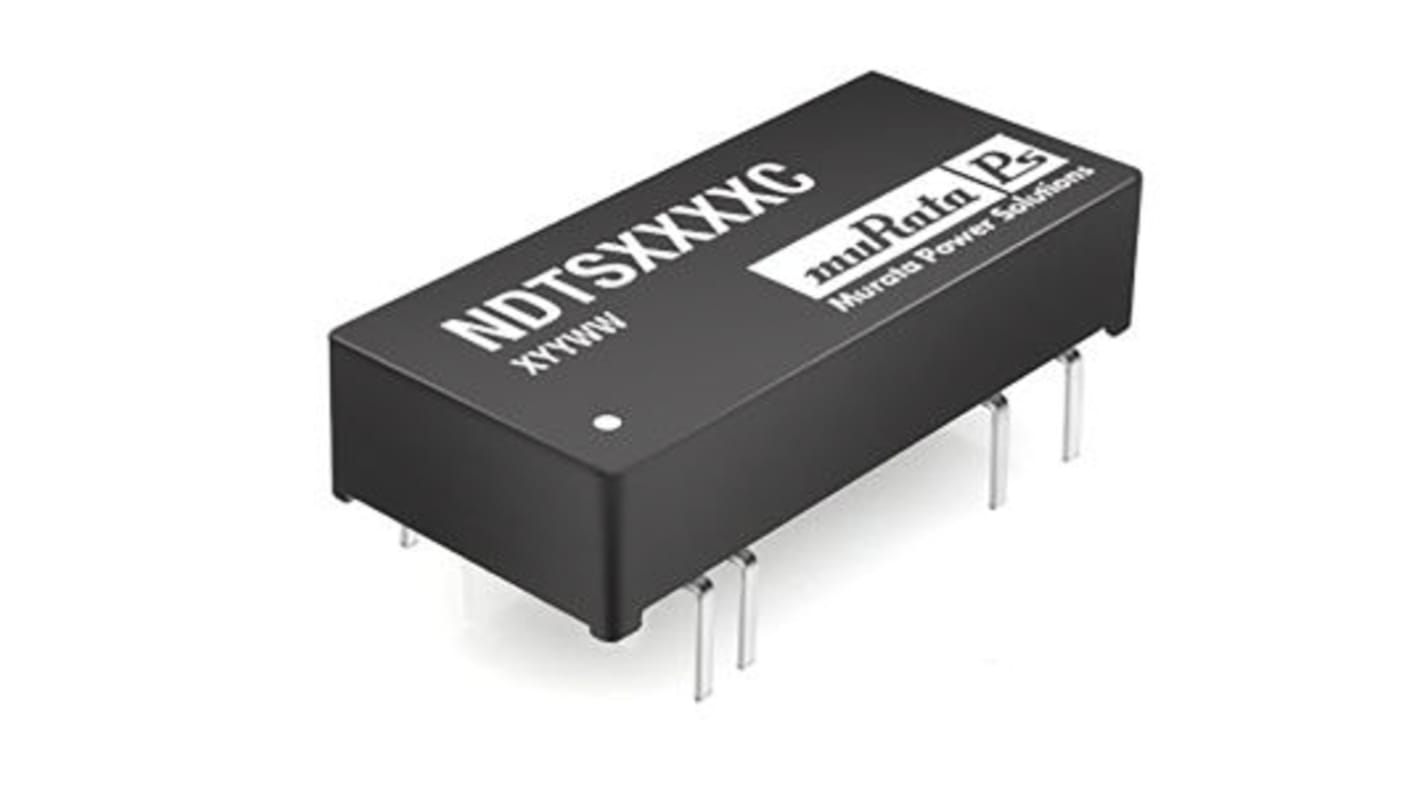

Murata Power Solutions NDTS DC/DC Converter, 5V dc/ 600 mA, 9V dc Input, 4.5V Input 3 W, Through Hole, 85 °C Max Temp
- RS-stocknr.:
- 167-0811
- Fabrikantnummer:
- NDTS0505C
- Fabrikant:
- Murata Power Solutions
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 tube van 15 eenheden)*
€ 246,45
(excl. BTW)
€ 298,20
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Tijdelijk niet op voorraad
- Verzending 1 stuk(s) vanaf 12 maart 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Tube(s) | Per tube | Per stuk* |
|---|---|---|
| 1 - 4 | € 246,45 | € 16,43 |
| 5 - 9 | € 239,05 | € 15,937 |
| 10 - 24 | € 231,65 | € 15,443 |
| 25 - 49 | € 224,26 | € 14,951 |
| 50 + | € 216,86 | € 14,457 |
*prijsindicatie
- RS-stocknr.:
- 167-0811
- Fabrikantnummer:
- NDTS0505C
- Fabrikant:
- Murata Power Solutions
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 9V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 600mA | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| Number of Outputs | 1 | |
| Ripple and Noise | 150mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 3W | |
| Package Type | DIP | |
| Series | NDTS | |
| Width | 32.26mm | |
| Standards/Approvals | RoHS | |
| Weight | 6.2g | |
| Length | 32.26mm | |
| Depth | 7mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 71% | |
| Alles selecteren | ||
|---|---|---|
Merk Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 9V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 600mA | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
Number of Outputs 1 | ||
Ripple and Noise 150mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 3W | ||
Package Type DIP | ||
Series NDTS | ||
Width 32.26mm | ||
Standards/Approvals RoHS | ||
Weight 6.2g | ||
Length 32.26mm | ||
Depth 7mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 71% | ||
Murata 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - NDTS/NDTD Series
Wide 2:1 input voltage range
Regulated output
1kV input/output isolation
Low profile
No heatsink required
Internal SMD construction
Continuous short circuit protection
DIP24 plastic package
UL 94V-0 package material
Murata Power Solutions - DIP
Note
MTBF to MIL-HDBK-217F (25°C).
