Murata Power Solutions NTA DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount,
- RS Stock No.:
- 167-0579
- Mfr. Part No.:
- NTA0505MC
- Brand:
- Murata Power Solutions
1 In stock - FREE next working day delivery available
Added
Price 1 Tube of 25
£184.46
(exc. VAT)
£221.35
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £184.46 | £7.378 |
| 5 - 9 | £178.92 | £7.157 |
| 10 - 24 | £173.39 | £6.936 |
| 25 - 49 | £167.85 | £6.714 |
| 50 + | £162.32 | £6.493 |
| *price indicative | ||
- RS Stock No.:
- 167-0579
- Mfr. Part No.:
- NTA0505MC
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

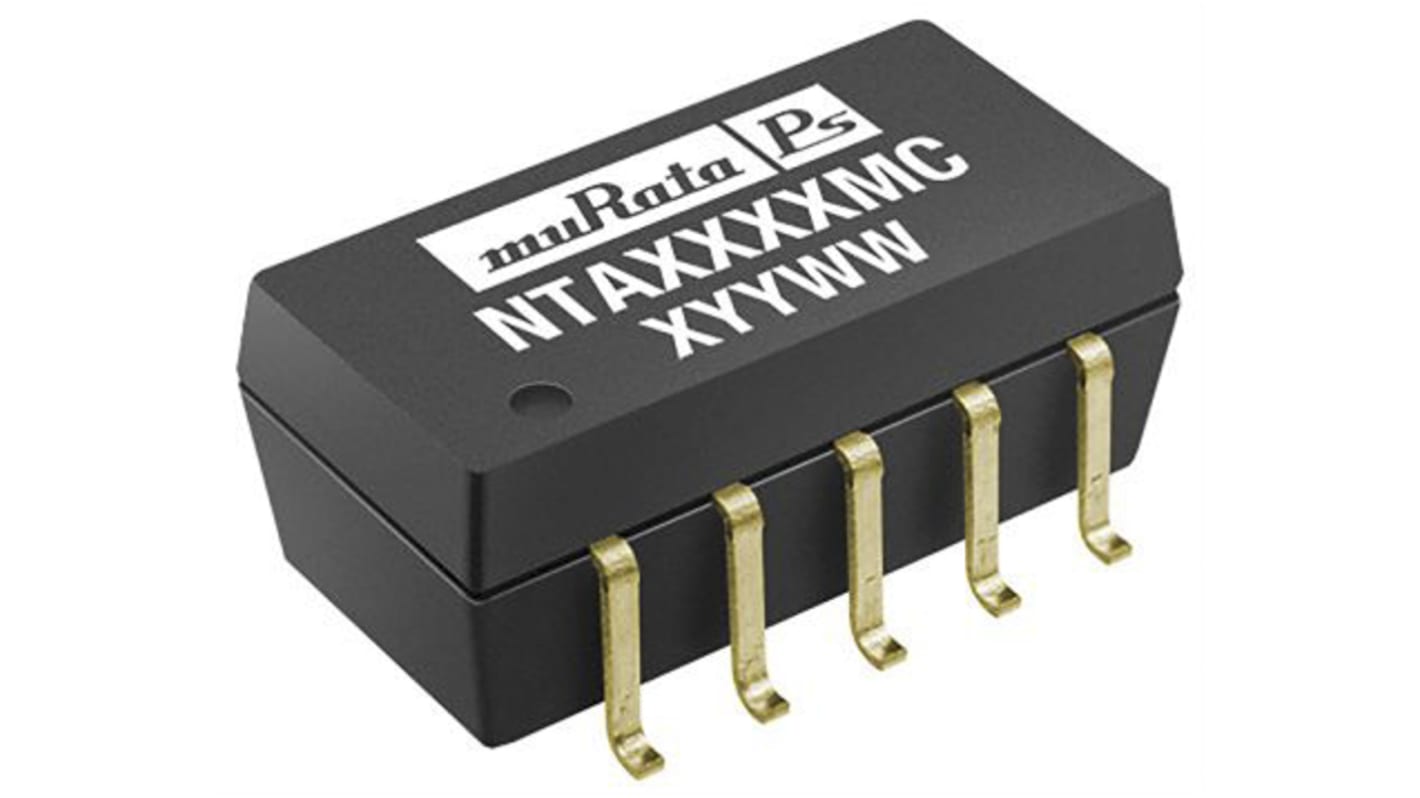

Murata 1W SMD Dual Output Unregulated Isolated DC-DC Converter - SMD NTA Series
Isolated SMT DIP10 plastic case
1kVdc isolation
Fully encapsulated
UL 94V-0 package material
1kVdc isolation
Fully encapsulated
UL 94V-0 package material
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 5 V dc |
| Output Current | ±100mA |
| Mounting Type | Surface Mount |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | MiniSMD |
| Isolation Voltage | 1kV dc |
| Depth | 6.35mm |
| Length | 15.24mm |
| Series | NTA |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
