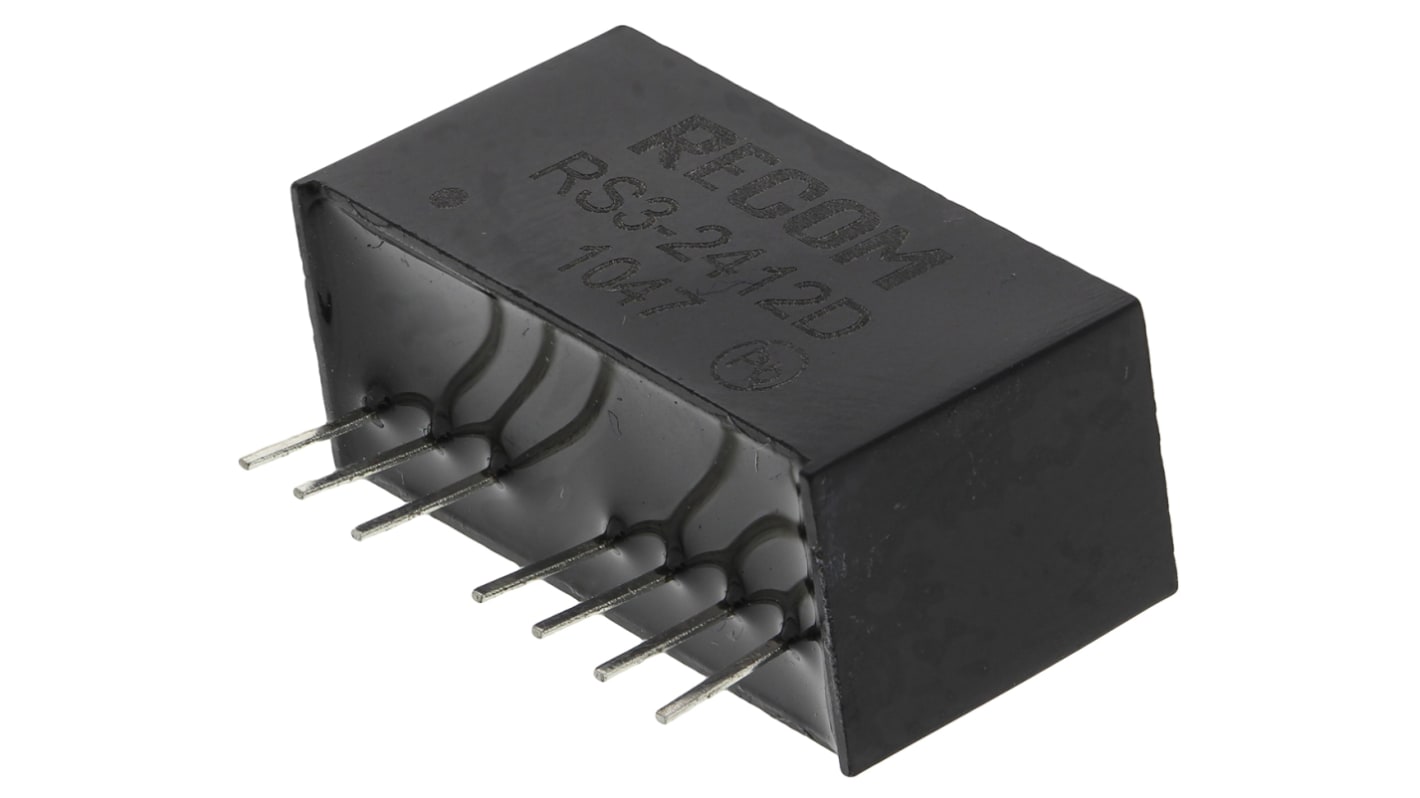

Recom RS3 DC/DC Converter, 12V, -12 V/, 36V dc Input, 18V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min Temp, 8-Pin

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 22 units)*

£323.33

(exc. VAT)

£388.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£323.33£14.697
5 - 9£313.63£14.256
10 - 24£303.93£13.815
25 - 49£294.23£13.374
50 +£284.53£12.933

*price indicative

RS Stock No.:
166-9105
Mfr. Part No.:
RS3-2412D
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

12, -12V

Product Type

DC/DC Converter

Minimum Input Voltage

18V

Maximum Input Voltage

36V dc

Output Current 2

125mA

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

2

MTBF

745000h

Output Voltage Adjustment Range

18/36 V

Ripple and Noise

50mV Pk-Pk

Number of Pins

8

Isolation Voltage

500V ac

Maximum Output Power

3W

Package Type

SIP

Width

9.2mm

Length

21.8mm

Series

RS3

Weight

4.7g

Standards/Approvals

RoHS, UR

Depth

11.1mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

81%

RECOM DC-DC Converter, ±1000μF Maximum Capacitive Load, 83% Efficiency - RS3 Series - RS3-2412D


Need powerful voltage conversion from a small package? This DC-DC converter from RECOM ticks the right boxes. Its power rating of 3W and Compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (H) mean it offers robust performance without crowding your setup. The unit takes unregulated inputs between 18 and 36V DC and produces a carefully regulated ±12V DC output, letting you reliably power through low-voltage applications. A maximum capacitive load of ±1000μF gets things started in just 1s, so you can quickly supply energy to devices in no-load conditions without damaging your converter.

• Efficiency of 83% means it releases minimal waste energy as heat, so you can put your heatsink away

• Isolation voltage of 1kV DC to protect your equipment against powerful surges

• Line and load regulation of ±0.5% lets you set input and output values precisely

Applications


• Smart lighting

• Small-scale electronics

• Renewable energy integration

• Medical devices

Does this converter also offer short-circuit protection?


Yes, this DC-DC converter's continuous short-circuit protection shields you and any connected devices from the damaging effects of excess current.

3W, Single/Dual Output, RS3 Series


Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS3 Series

2:1 input voltage range

Regulated output(s)

Low ripple and noise

UL94V-0 package material

1kV input/output isolation

Remote On/Off control

Continuous short-circuit protection

SIP-8 package

Note

Operating temperature range is quoted without derating.
