Recom RI DC-DC Converter, 15V dc/ 133mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-9052
- Mfr. Part No.:
- RI-1215S
- Brand:
- Recom
2 In stock - FREE next working day delivery available
Added
Price 1 Tube of 42
£286.32
(exc. VAT)
£343.58
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £286.32 | £6.817 |
5 - 9 | £277.73 | £6.613 |
10 - 24 | £269.14 | £6.408 |
25 - 49 | £260.56 | £6.204 |
50 + | £251.97 | £5.999 |
*price indicative |
- RS Stock No.:
- 166-9052
- Mfr. Part No.:
- RI-1215S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

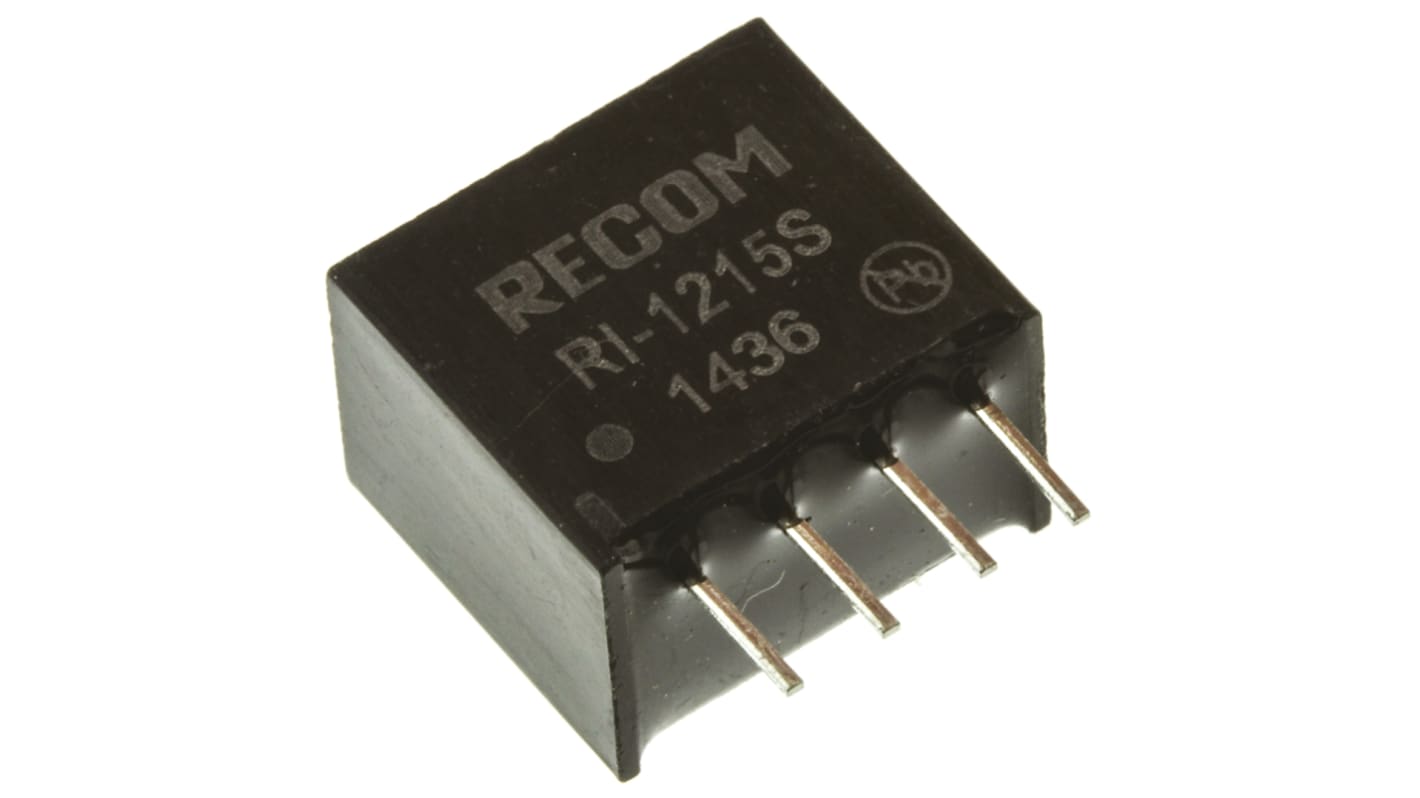

RECOM DC-DC Converter, Single Output, 1kV DC Isolation - RI Series - RI-1215S
In a tight spot when it comes to electrical isolation? This DC-DC converter from RECOM will take an input of 12V DC ±10% and output a 15V DC supply. It's isolated from the input to protect your people and sensitive components from dangerous voltages. What's more, it's housed in a compact SiP package measuring 11.5 (L) x 7.55 (W) x 10.2 (H) so it doesn't take up much space. As an unregulated converter, it outputs a constant amount of power based on voltage x current.
Features & Benefits
• Line regulation of 1.2% and load regulation of 10% give you a steady supply even where there are fluctuations in the input or the load
• Through-hole mounting forms a robust connection with your PCB
• Operating temperature range of -40°C to +85°C means it's safe to use in challenging environments
• No heatsink needed, helping you simplify your installation
• Efficiency of up to 87% minimises energy wastage
• Through-hole mounting forms a robust connection with your PCB
• Operating temperature range of -40°C to +85°C means it's safe to use in challenging environments
• No heatsink needed, helping you simplify your installation
• Efficiency of up to 87% minimises energy wastage
Applications
• Renewable energy
• Lighting systems
• Factory automation
• Lighting systems
• Factory automation
How many volts does this converter provide isolation against?
This DC-DC converter has an isolation voltage of 1kV DC, meaning it will isolate the output from voltage surges of up to 1,000 volts DC on the input.
Specifications
Attribute | Value |
---|---|
Output Voltage | 15V dc |
Input Voltage Range | 10.8 → 13.2 V dc |
Power Rating | 2W |
Input Voltage Nominal | 12 V dc |
Output Current | 133mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 1kV dc |
Depth | 10.2mm |
Length | 11.5mm |
Series | RI |
Load Regulation | ±10% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
