MPN

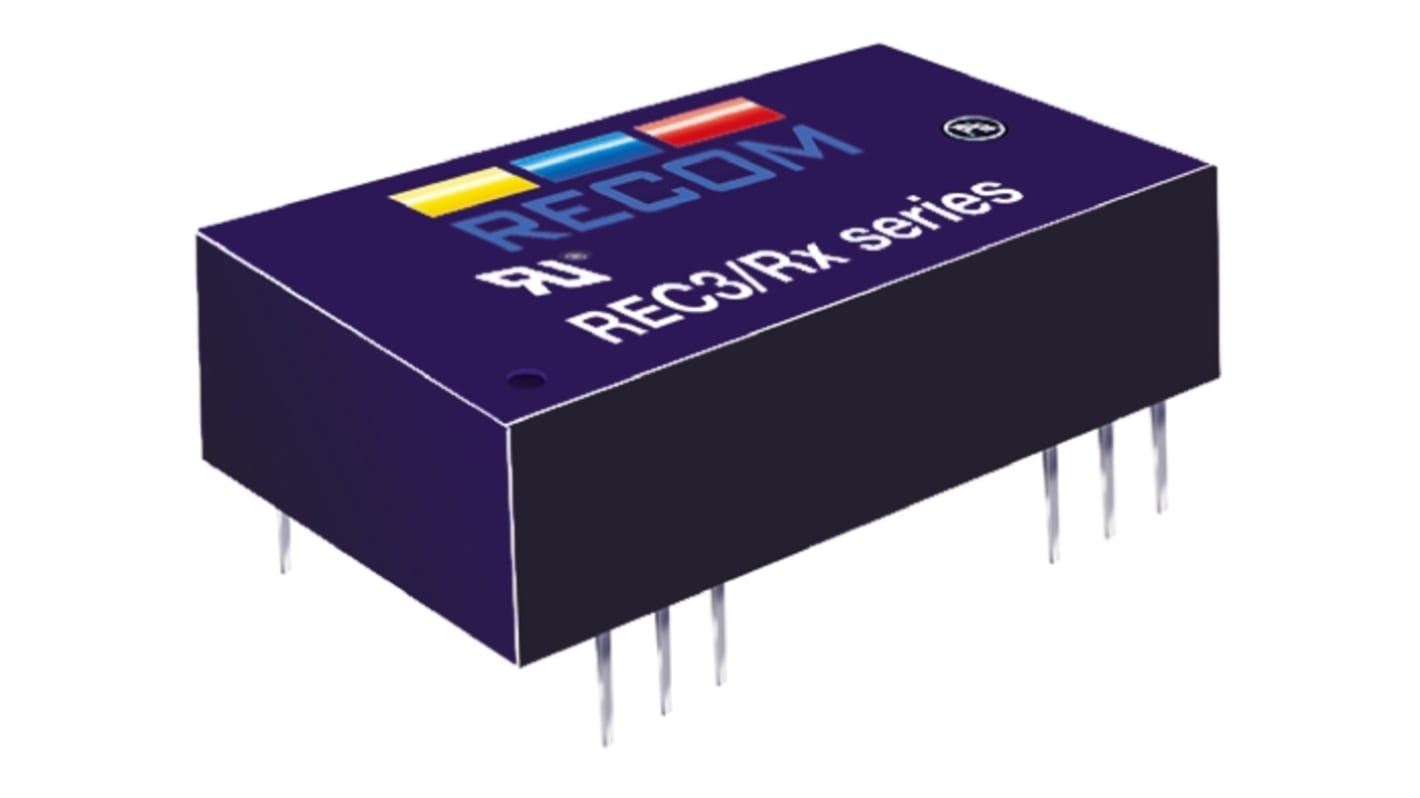

Recom REC3 DC/DC Converter, 15V dc/ 100 mA, 72V dc Input, 18V Input 3 W, Through Hole, 80 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 166-6652
Mfr. Part No.:: REC3-4815DRWZ/H2/A
Brand:: Recom

Recom REC3 DC/DC Converter, 15V dc/ 100 mA, 72V dc Input, 18V Input 3 W, Through Hole, 80 °C Max Temp -40 °C Min Temp,

Bulk discount available

View bulk pricing options

Subtotal (1 tube of 15 units)*

£377.18

(exc. VAT)

£452.62

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 12 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£377.18	£25.145
5 - 9	£365.87	£24.391
10 - 24	£354.55	£23.637
25 - 49	£343.24	£22.883
50 +	£331.92	£22.128

*price indicative

RS Stock No.:: 166-6652
Mfr. Part No.:: REC3-4815DRWZ/H2/A
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage 1	15V dc
	Product Type	DC/DC Converter
	Minimum Input Voltage	18V
	Maximum Input Voltage	72V dc
	Output Current 1	100mA
	Output Current 2	-100mA
	Output Voltage 2	-15V dc
	Mount Type	Through Hole
	Input Ratio	4:1
	MTBF	1043000h
	Number of Outputs	2
	Number of Pins	24
	Isolation Voltage	2kV dc
	Maximum Output Power	3W
	Package Type	DIP
	Depth	10.2mm
	Standards/Approvals	No
	Series	REC3
	Length	32mm
	Maximum Operating Temperature	80°C
	Minimum Operating Temperature	-40°C
	Efficiency	85%

	Select all
	Brand Recom
	Output Voltage 1 15V dc
	Product Type DC/DC Converter
	Minimum Input Voltage 18V
	Maximum Input Voltage 72V dc
	Output Current 1 100mA
	Output Current 2 -100mA
	Output Voltage 2 -15V dc
	Mount Type Through Hole
	Input Ratio 4:1
	MTBF 1043000h
	Number of Outputs 2
	Number of Pins 24
	Isolation Voltage 2kV dc
	Maximum Output Power 3W
	Package Type DIP
	Depth 10.2mm
	Standards/Approvals No
	Series REC3
	Length 32mm
	Maximum Operating Temperature 80°C
	Minimum Operating Temperature -40°C
	Efficiency 85%

REC3-S_DRW 3 Watt DIP24 & SMD Single & Dual Output DC/DC-Converter Data Sheet

COO (Country of Origin):: TW

Recom 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC3 Series

2kVDC (H2 suffix) 4kVdc (H4 suffix) or 6kVdc (H6 suffix) Isolation

Regulated outputs

2:1 or 4:1 (Z suffix) wide range input

Efficiency up to 85%

UL94V-0 package material

Short circuit protection, auto restarting

DIP24 miniature package

Note

Operating temperature is without derating.

Standards

EN60950-1, UL60950-1, EN60601-1
