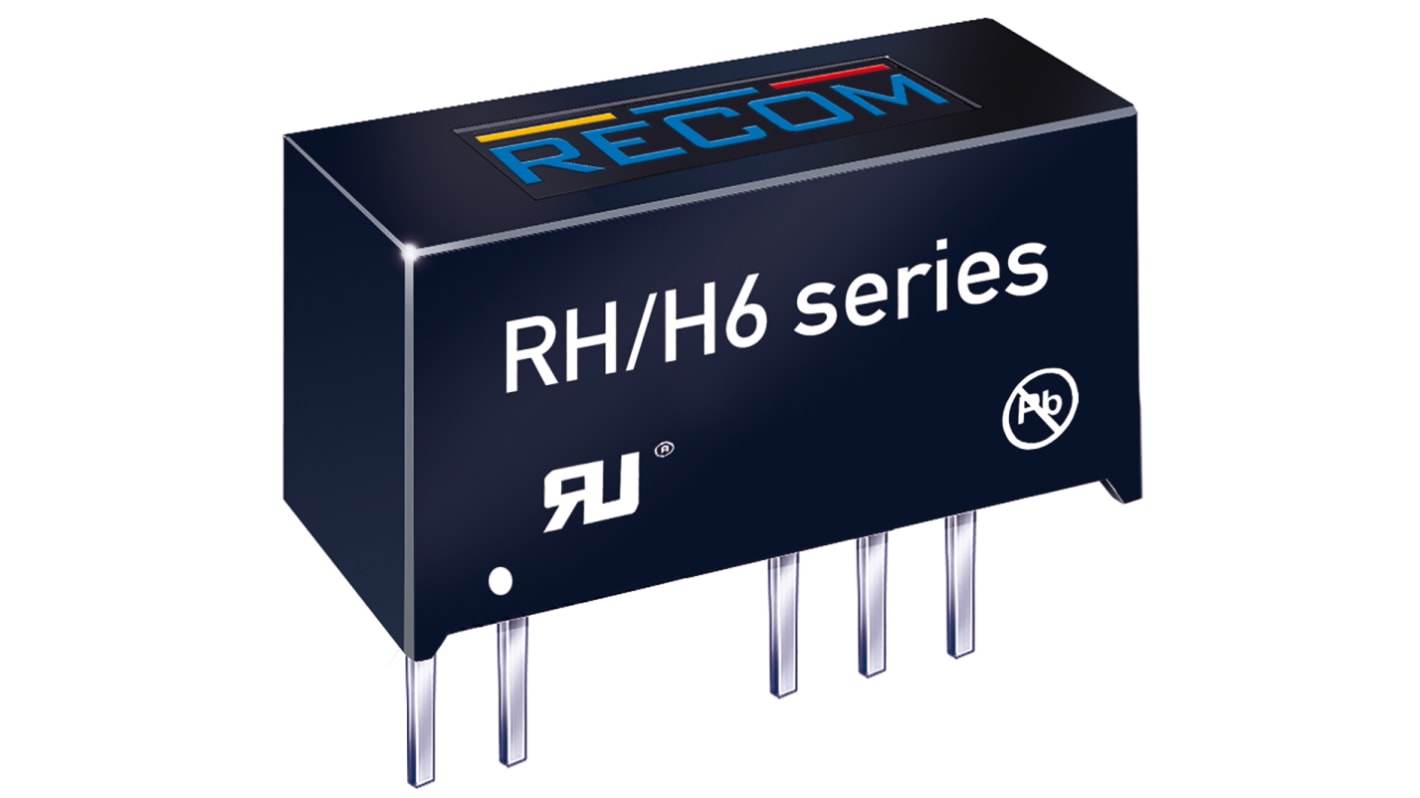

Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±21.6 V dc, ±26.4 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
- RS Stock No.:
- 166-6597
- Mfr. Part No.:
- RH-2415D/H6
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£218.64
(exc. VAT)
£262.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £218.64 | £8.746 |
| 5 - 9 | £212.09 | £8.484 |
| 10 - 24 | £205.53 | £8.221 |
| 25 - 49 | £198.97 | £7.959 |
| 50 + | £192.40 | £7.696 |
*price indicative
- RS Stock No.:
- 166-6597
- Mfr. Part No.:
- RH-2415D/H6
- Brand:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | ±21.6 V dc, ±26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | ±24 V dc | |
| Output Current | ±33mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | ±14.25 V dc, ±15.75V dc | |
| Package | SIP 7 | |
| Isolation Voltage | 4kV dc | |
| Width | 7.05mm | |
| Depth | 10.2mm | |
| Length | 19.65mm | |
| Series | RH | |
| Load Regulation | 0.1 | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 78 → 80% | |
| Standards Met | A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage ±15V dc | ||
Input Voltage Range ±21.6 V dc, ±26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal ±24 V dc | ||
Output Current ±33mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range ±14.25 V dc, ±15.75V dc | ||
Package SIP 7 | ||
Isolation Voltage 4kV dc | ||
Width 7.05mm | ||
Depth 10.2mm | ||
Length 19.65mm | ||
Series RH | ||
Load Regulation 0.1 | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
Efficiency 78 → 80% | ||
Standards Met A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 | ||
