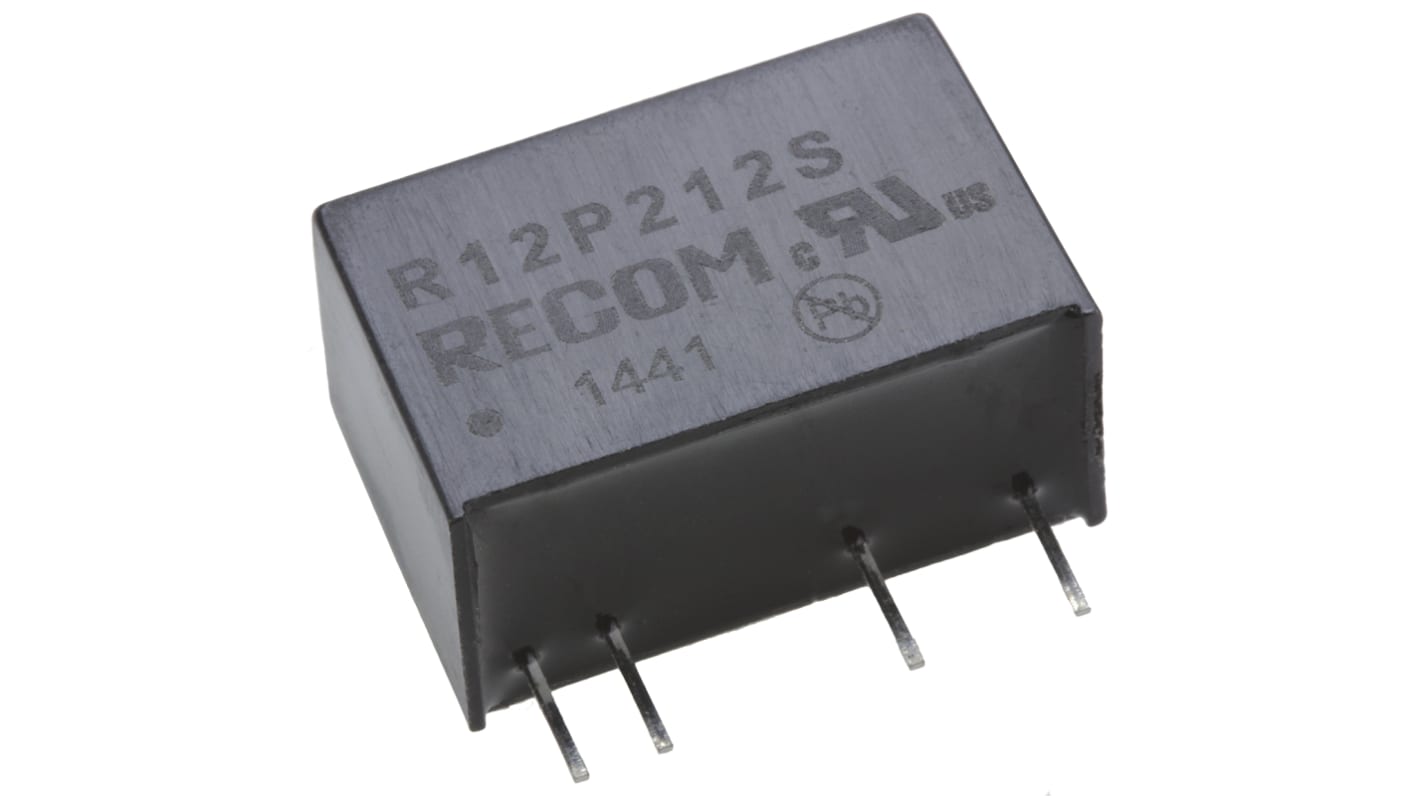

Recom R12P DC/DC Converter, 12V dc/ 167 mA, 12V dc Input, 10.8V Input 2 W, Through Hole, 95 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 25 units)*

£315.66

(exc. VAT)

£378.79

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£315.66£12.626
5 - 9£306.19£12.248
10 - 24£296.72£11.869
25 - 49£287.25£11.49
50 +£277.78£11.111

*price indicative

RS Stock No.:
166-6549
Mfr. Part No.:
R12P212S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

12V dc

Maximum Input Voltage

12V dc

Minimum Input Voltage

10.8V

Output Current 1

167mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

2113000h

Number of Pins

7

Isolation Voltage

2.6kV ac

Package Type

SIP

Maximum Output Power

2W

Series

R12P

Standards/Approvals

No

Depth

12.5mm

Length

19.5mm

Efficiency

70%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

95°C

COO (Country of Origin):
TW

Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxP2xx Series


UL/CSA and EN safety certified

Approved for Medical applications

Suitable for IGBT applications

Compact SIP7 package

Isolation 6.4K Vdc

Very low isolation capacitance

3 year warranty

Approvals

UL recognised

Standards

EN-60950-1, UL-60950-1, EN-60601-1
