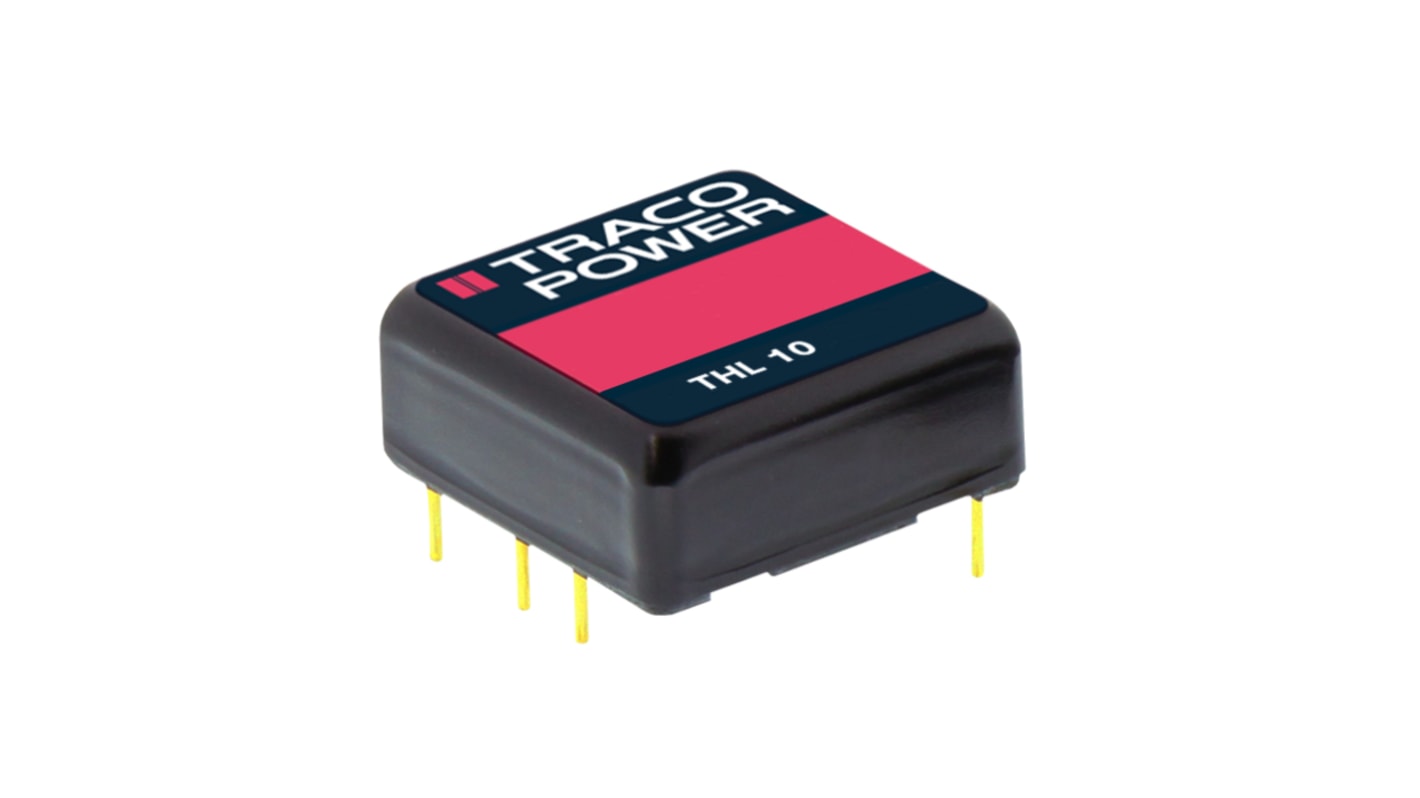

TRACOPOWER THL 10 DC-DC Converter, 12V dc/ 830mA Output, 36 → 75 V dc Input, 10W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 166-6363
- Mfr. Part No.:
- THL 10-4812
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£226.73
(exc. VAT)
£272.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £226.73 | £22.673 |
| 5 - 9 | £219.93 | £21.993 |
| 10 - 24 | £213.13 | £21.313 |
| 25 - 49 | £204.06 | £20.406 |
| 50 + | £194.99 | £19.499 |
*price indicative
- RS Stock No.:
- 166-6363
- Mfr. Part No.:
- THL 10-4812
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 830mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.2mm | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Series | THL 10 | |
| Load Regulation | 0.005 | |
| Efficiency | 87% | |
| Minimum Temperature | -40°C | |
| Standards Met | CB Scheme, CSA US, cULus, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 | |
| Maximum Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 830mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Length 25.4mm | ||
Width 25.4mm | ||
Series THL 10 | ||
Load Regulation 0.005 | ||
Efficiency 87% | ||
Minimum Temperature -40°C | ||
Standards Met CB Scheme, CSA US, cULus, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 | ||
Maximum Temperature +80°C | ||
