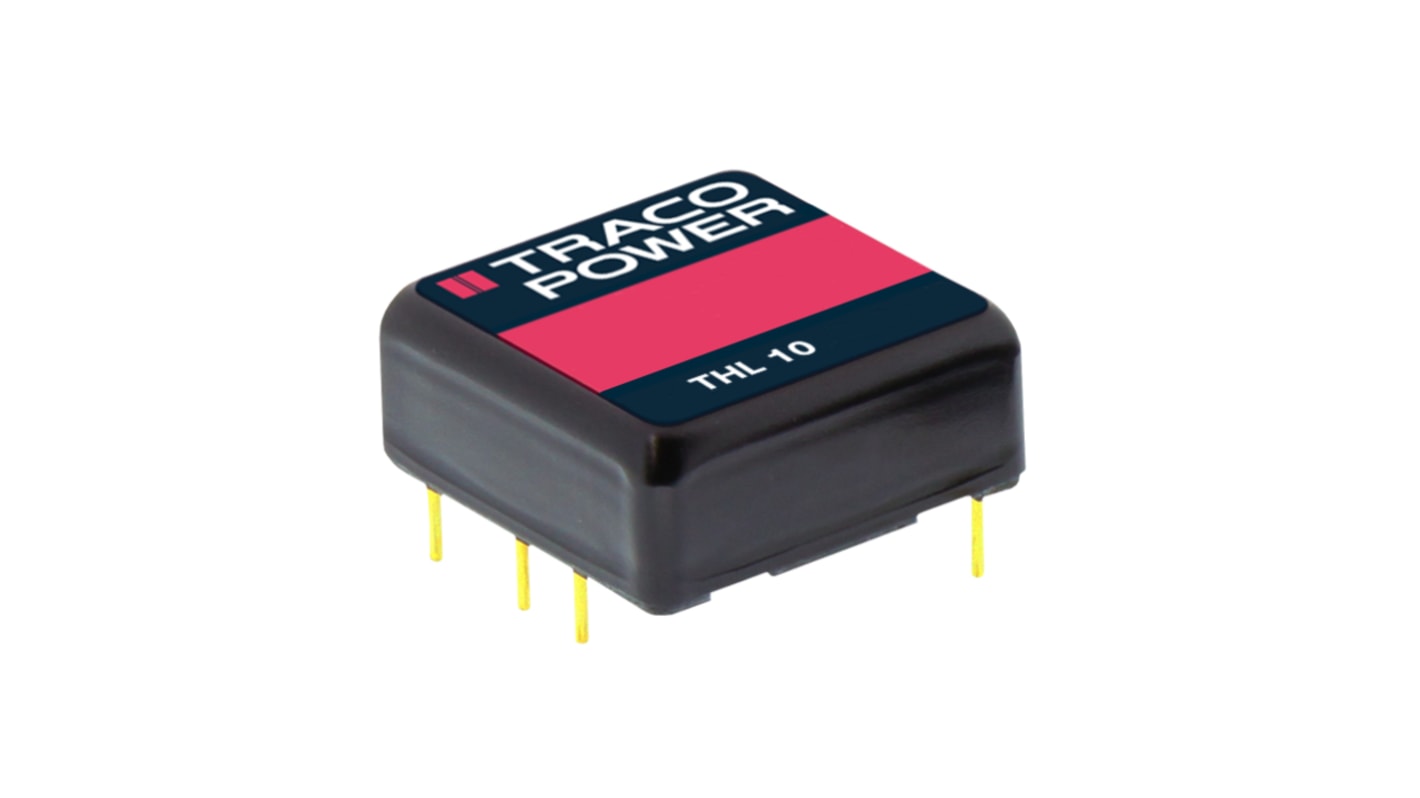

TRACOPOWER THL 10 DC-DC Converter, 3.3V dc/ 2.5A Output, 18 → 36 V dc Input, 10W, Through Hole, +80°C Max Temp

RS Stock No.:: 166-6358
Mfr. Part No.:: THL 10-2410
Brand:: TRACOPOWER

TRACOPOWER THL 10 DC-DC Converter, 3.3V dc/ 2.5A Output, 18 → 36 V dc Input, 10W, Through Hole, +80°C Max Temp

Available to back order for despatch 22/10/2024

Price 1 Tube of 10

£314.19

(exc. VAT)

£377.03

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£314.19	£31.419
5 - 9	£304.76	£30.476
10 - 24	£295.34	£29.534
25 - 49	£282.77	£28.277
50 +	£270.20	£27.02

*price indicative

RS Stock No.:: 166-6358
Mfr. Part No.:: THL 10-2410
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 10W Regulated Isolated DC-DC Converter - THL10 Series

The Traco Power THL 10 series is a range of general purpose 10W DC-DC converters, in a compact 1 x 1 inch case and are a pin to pin replacement for the popular 1 x 2 inch size products. These DC-DC converters also feature a remote On/Off control, short circuit, overvoltage protection and internal EMI-filter to meet EN 55022, class A. The THL 10 DC-DC converters are easy to design in and suitable to optimize costs in many existing and new designs. Typical applications for these converters are instrumentation, distributed power architectures in communication and industrial electronics.

Wide 2:1 input voltage range
High efficiency up to 87 %
I/O-isolation 1500 VDC
Input filter to meet EN 55022, class A
Remote On/Off
No minimum load required

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

Specifications

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	18 → 36 V dc
Power Rating	10W
Input Voltage Nominal	24 V dc
Output Current	2.5A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 1 in
Isolation Voltage	1.5kV dc
Depth	10.2mm
Width	25.4mm
Length	25.4mm
Series	THL 10
Load Regulation	0.005
Efficiency	83%
Maximum Temperature	+80°C
Standards Met	CB Scheme, CSA US, cULus, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1
Minimum Temperature	-40°C
