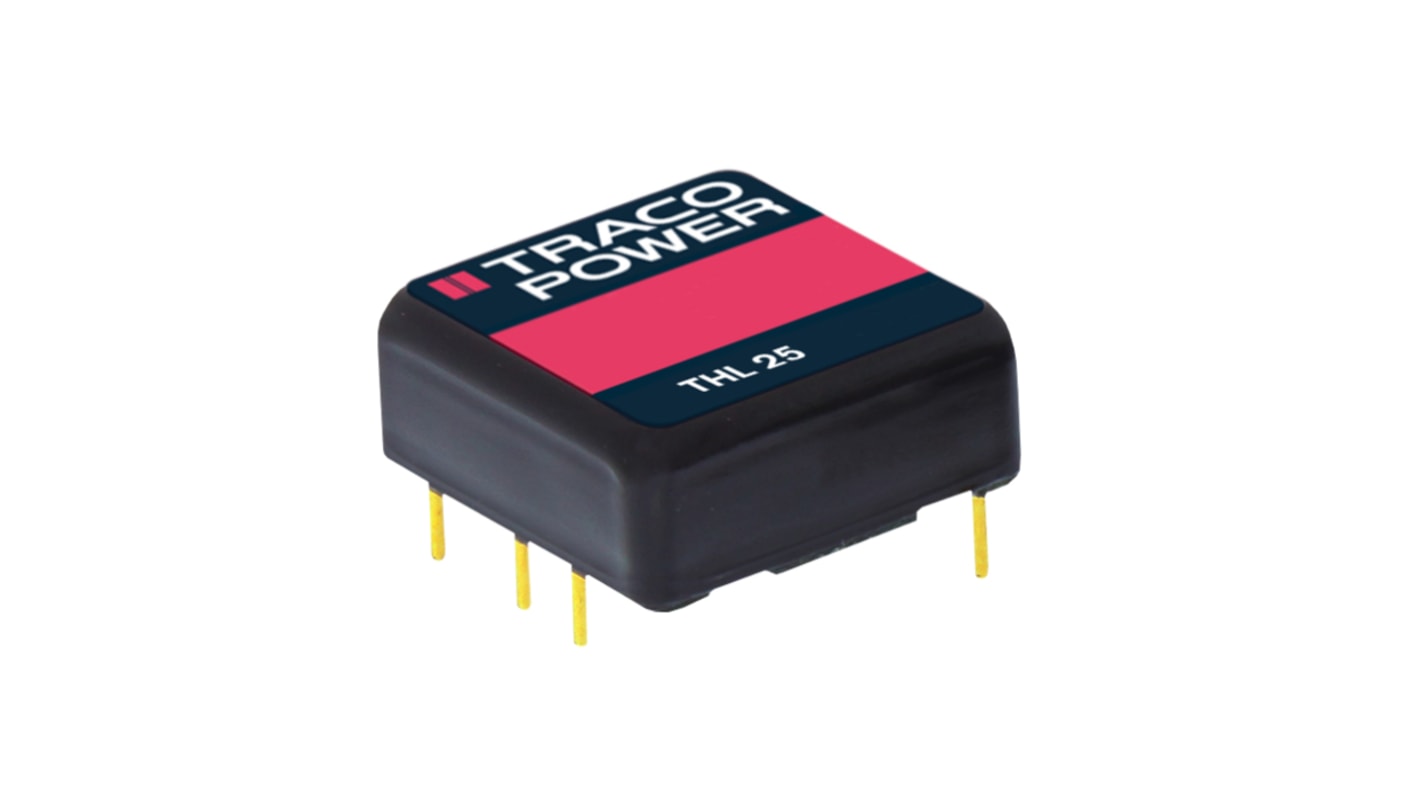

TRACOPOWER THL 25 DC/DC Converter, 15V dc/ 840 mA, 36V dc Input, 18V Input 25 W, PCB, 80 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£517.64

(exc. VAT)

£621.17

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£517.64£51.764
5 - 9£502.10£50.21
10 - 24£486.57£48.657
25 - 49£465.86£46.586
50 +£445.17£44.517

*price indicative

RS Stock No.:
166-6341
Mfr. Part No.:
THL 25-2423
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Minimum Input Voltage

18V

Maximum Input Voltage

36V dc

Output Current 1

840mA

Output Current 2

840mA

Mount Type

PCB

Output Voltage 2

-15V dc

Input Ratio

2:1

MTBF

313000h

Number of Outputs

2

Output Voltage Adjustment Range

±10 %

Number of Pins

6

Isolation Voltage

1.5kV dc

Maximum Output Power

25W

Package Type

Shielded Metal Case with Isolated Baseplate

Length

25.4mm

Standards/Approvals

No

Series

THL 25

Depth

10.2mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Efficiency

89%

COO (Country of Origin):
TW

Traco 25W Single/Dual Output Regulated Isolated DC-DC Converter - THL 25 Series


The Tracopower THL-25 comes in a metal case of very small dimensions, with high efficiency of up to 90% this isolated DC/DC converter is suited for use in temperature ranges of up to +80°C, or +85°C with optional mounted heat sink. The THL-25 range of DC/DC converters feature a wide 2:1 input voltage range and precisely regulated output voltages. Typical applications of these DC/DC converters are in mobile equipments, instrumentation, distributes power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.

Highest power density 25W converter

Ultra compact design

Shielded metal case with isolated baseplate

Wide 2:1 input voltage ranges

Very high efficiency up to 90%

Output voltage adjustable

Remote On/Off control

Operating temperature range –40°C up to +80°C, +85°C with heat-sink

I/O isolation voltage 1500 VDC

3-year product warranty

Standards

UL/cUL 60950-1
IEC/EN 60950-1
