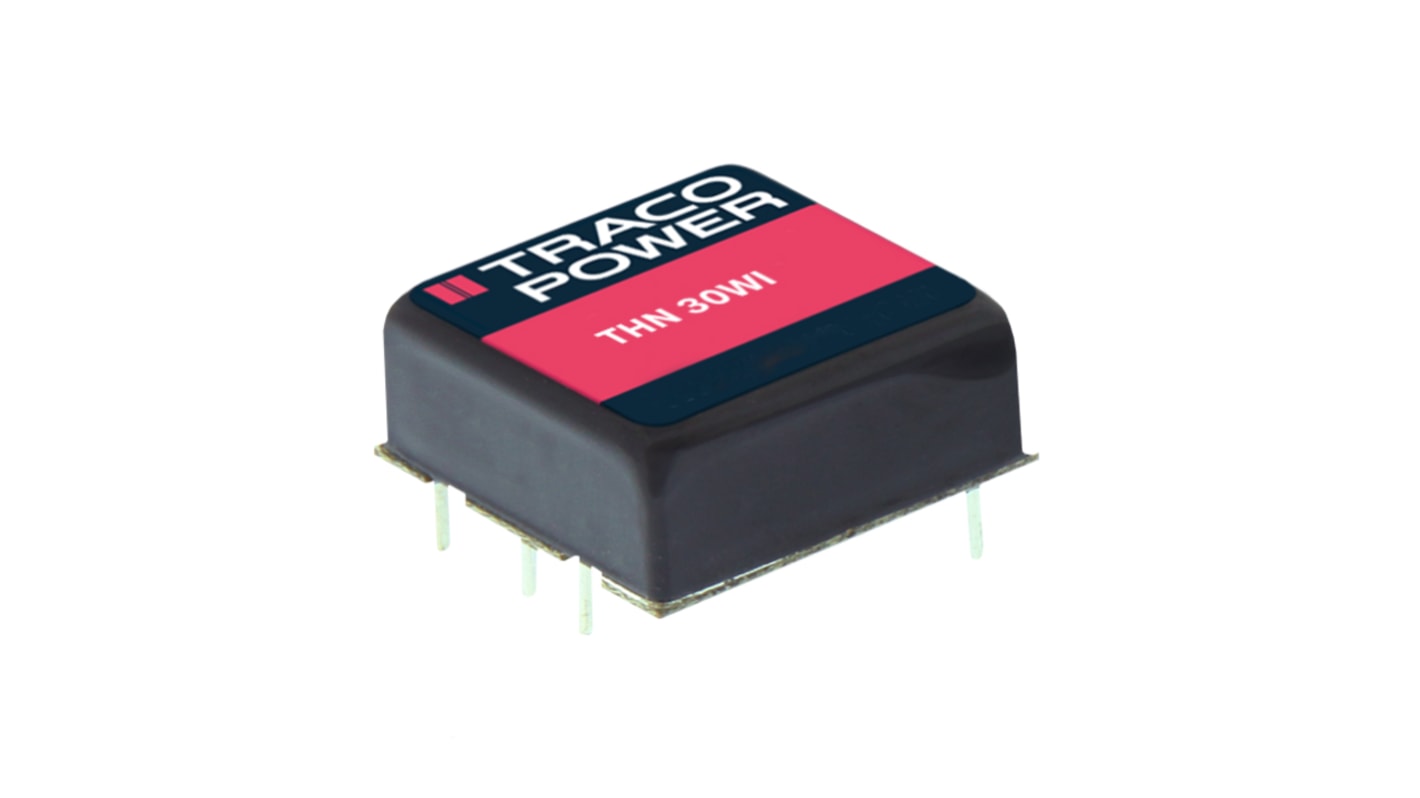

TRACOPOWER THN 30WI DC-DC Converter, ±15V dc/ ±1A Output, 18 → 75 V dc Input, 30W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-6324
- Mfr. Part No.:
- THN 30-4823WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£730.67
(exc. VAT)
£876.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £730.67 | £73.067 |
| 5 - 9 | £708.75 | £70.875 |
| 10 - 24 | £686.83 | £68.683 |
| 25 - 49 | £657.60 | £65.76 |
| 50 + | £628.38 | £62.838 |
*price indicative
- RS Stock No.:
- 166-6324
- Mfr. Part No.:
- THN 30-4823WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±1A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Series | THN 30WI | |
| Load Regulation | 1%, 5% | |
| Maximum Temperature | +85°C | |
| Efficiency | 92% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±1A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Series THN 30WI | ||
Load Regulation 1%, 5% | ||
Maximum Temperature +85°C | ||
Efficiency 92% | ||
Minimum Temperature -40°C | ||
