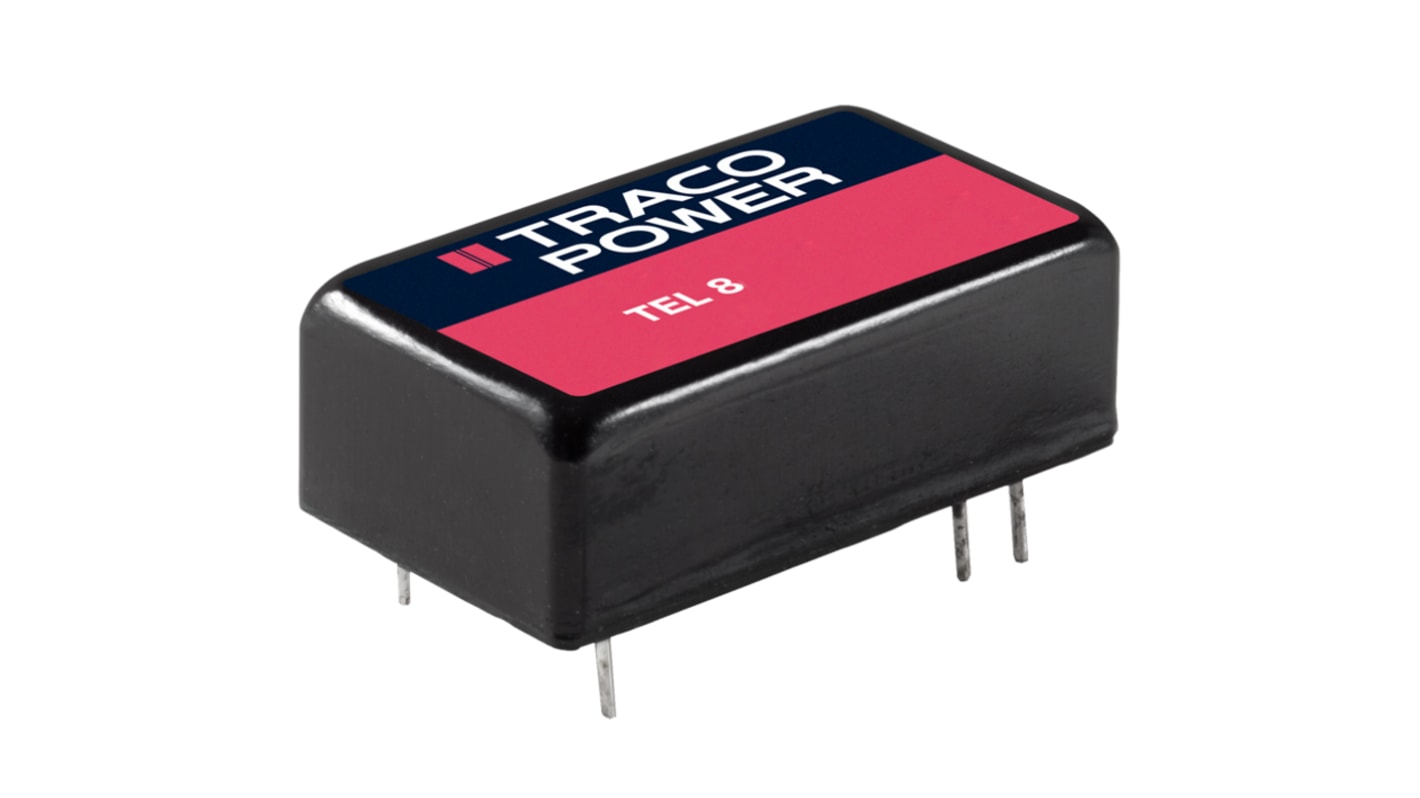

TRACOPOWER TEL 8 DC-DC Converter, 12V dc/ 665mA Output, 36 → 75 V dc Input, 8W, Through Hole, +80°C Max Temp

RS Stock No.:: 166-6316
Mfr. Part No.:: TEL 8-4812
Brand:: TRACOPOWER

TRACOPOWER TEL 8 DC-DC Converter, 12V dc/ 665mA Output, 36 → 75 V dc Input, 8W, Through Hole, +80°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£184.44

(exc. VAT)

£221.33

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£184.44	£18.444
5 - 9	£178.91	£17.891
10 - 24	£173.37	£17.337
25 - 49	£166.00	£16.60
50 +	£158.62	£15.862

*price indicative

RS Stock No.:: 166-6316
Mfr. Part No.:: TEL 8-4812
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco Isolated DC - DC Converter, TEL 8WI Series

From Tracopower the ultra-compact isolated 8WI series DIP-16 metal-packaged DC-DC converter with an ultra-wide 4:1 input voltage range. This DC-DC converter provides up to 86% efficiency allowing an operating temperature of up to +70°C at full load and and up to 80°C with 50% load. The Tracopower TEL 8WI series also comes equipped with an input filter, allowing the series to comply with EN55022 class A conducted emission.
The Tracopower TEL 8WI series is a cost-effective product, without compromise on performance. This series is suited to applications where space is at a premium, such as instrumentation, IT and industrial electronics.

Features and Benefits

• Ultra-compact design with a DIP-16 metal package
• Wide 4:1 input range.
• Fully regulated outputs
• Built in EN 55022 class A filter
• Operating temperature range of -40 to +80°C
• Equipped with industry standard safety features such as overload and short circuit protection.

Standards

EN55022 class A

Specifications

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	36 → 75 V dc
Power Rating	8W
Input Voltage Nominal	48 V dc
Output Current	665mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 16
Isolation Voltage	1.5kV dc
Length	23.8mm
Width	13.7mm
Depth	8mm
Series	TEL 8
Load Regulation	0.01
Minimum Temperature	-40°C
Standards Met	ANSI/UL No:60950-1, CAN, CSA C22.2 No:60950-1-07, EN 55022 Class A, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH
Maximum Temperature	+80°C
Efficiency	85%
