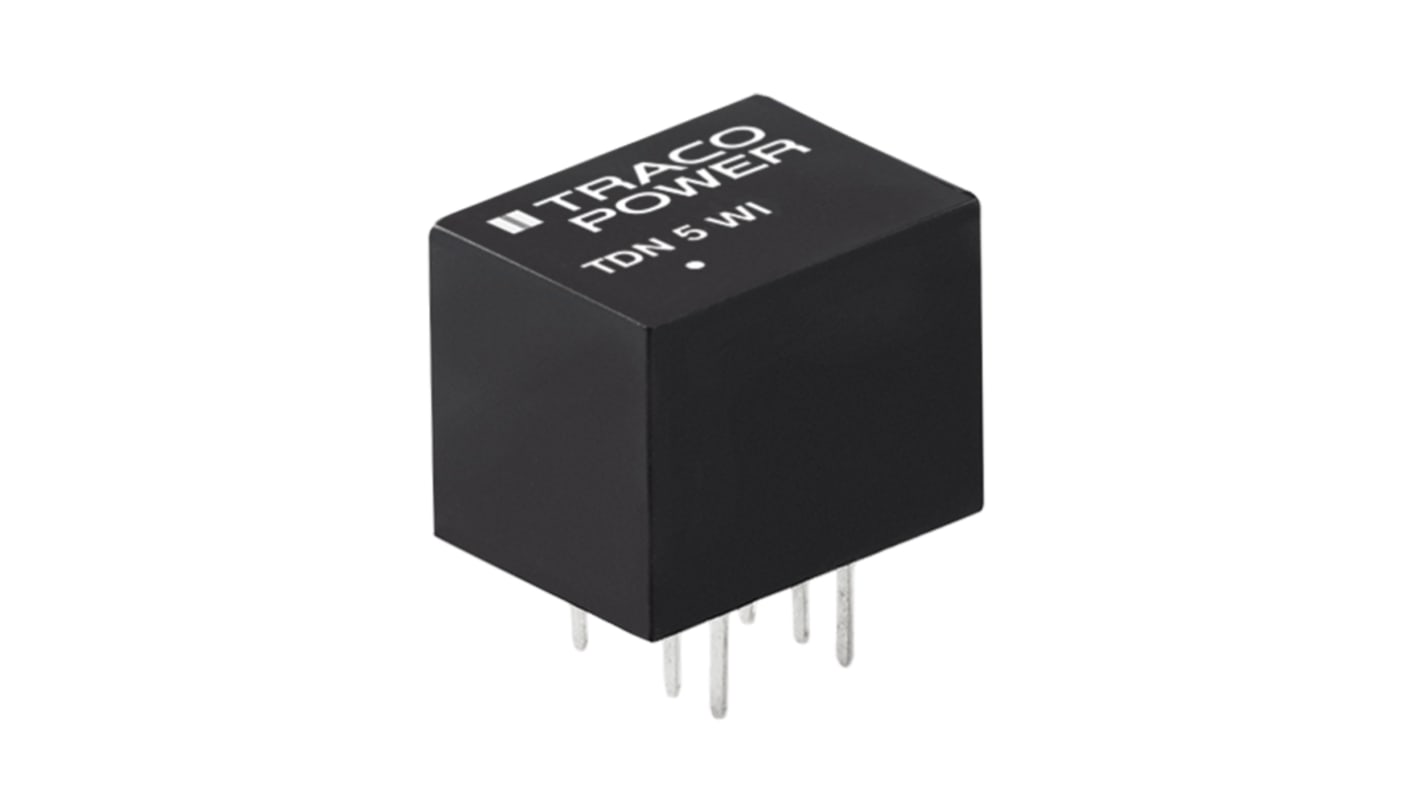

TRACOPOWER TDN 5WI DC/DC Converter, 24V dc/ 210 mA, 13.2V Input, 4.5V Input 5 W, PCB, 75 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£227.87

(exc. VAT)

£273.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£227.87£22.787
5 - 9£221.02£22.102
10 - 24£214.20£21.42
25 - 49£205.07£20.507
50 +£195.97£19.597

*price indicative

RS Stock No.:
166-6121
Mfr. Part No.:
TDN 5-0915WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Minimum Input Voltage

4.5V

Maximum Input Voltage

13.2V

Output Current 1

210mA

Mount Type

PCB

Input Ratio

4:1

Number of Outputs

1

MTBF

2960000h

Output Voltage Adjustment Range

-1 to 1 %

Isolation Voltage

1.5kV dc

Number of Pins

6

Package Type

DIP

Maximum Output Power

5W

Length

13.2mm

Depth

9.9mm

Width

9.1mm

Standards/Approvals

No

Series

TDN 5WI

Maximum Operating Temperature

75°C

Minimum Operating Temperature

-40°C

Efficiency

83%

COO (Country of Origin):
TW

Traco 5W SMD Single/Dual Output DC/DC Converter - TDN 5 Series


Range of high-performance DC-DC converters from Tracopower. The TDN 5 series changes the face of high-power density conversion. Offered in a cubical design with an ultra-compact DIP package to ensure compatibility with more space-restricted applications.

Input of the TDN 5 series is designed for use in wide voltage applications (4:1), with the added benefit of no need of a minimum load. Outputs are fully regulated with integral short circuit protection.

Features and Benefits

I/O Insulation regulated up to 1.5 kV

Nominal 4.5 - 12 v DC input voltage with output voltage options ranging from 3.3 to 15 v DC
