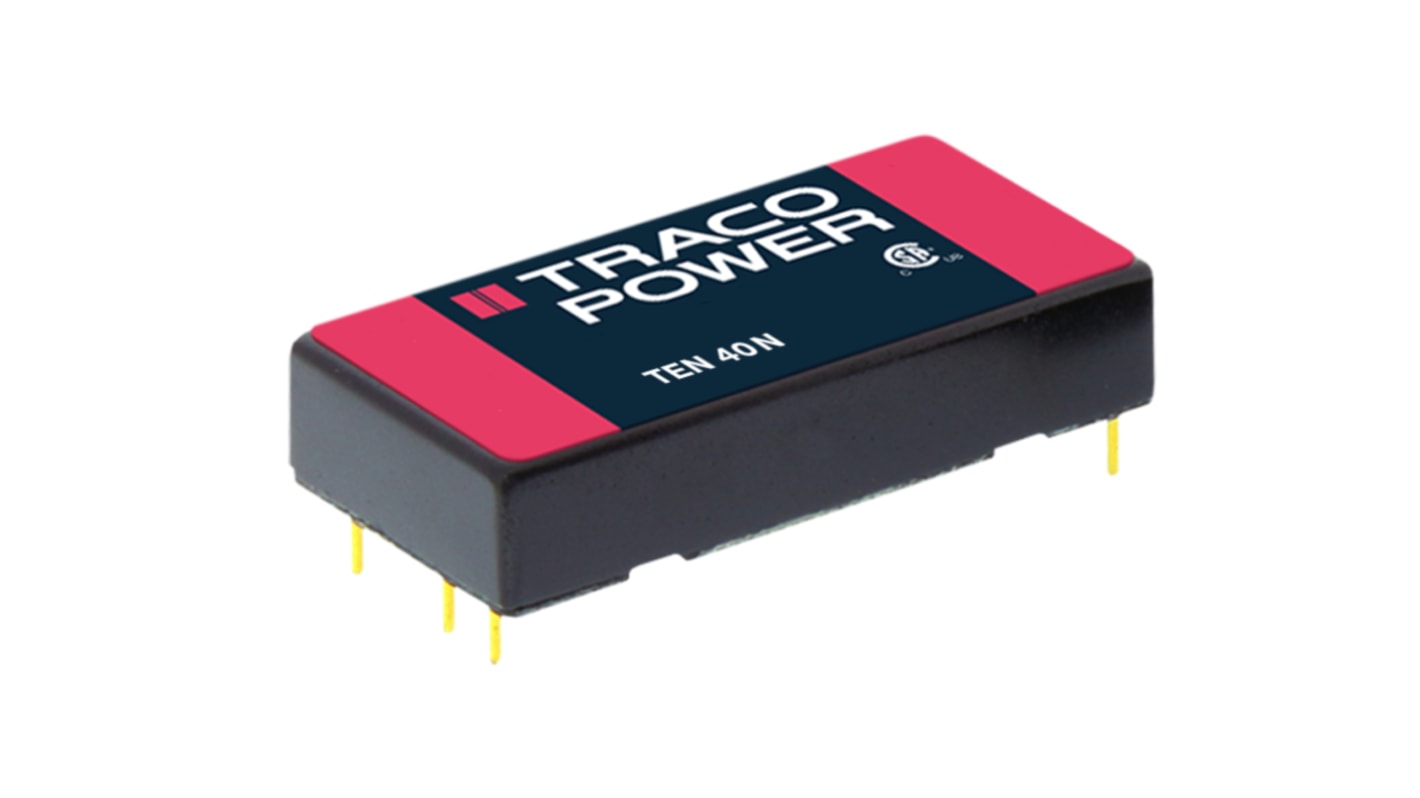

TRACOPOWER TEN 40N DC-DC Converter, 3.3V dc/ 8A Output, 9 → 18 V dc Input, 40W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 166-6036
- Mfr. Part No.:
- TEN 40-1210N
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£593.86
(exc. VAT)
£712.63
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £593.86 | £59.386 |
| 5 - 9 | £576.04 | £57.604 |
| 10 - 24 | £558.23 | £55.823 |
| 25 - 49 | £534.48 | £53.448 |
| 50 + | £510.72 | £51.072 |
*price indicative
- RS Stock No.:
- 166-6036
- Mfr. Part No.:
- TEN 40-1210N
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 8A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 11mm | |
| Length | 50.8mm | |
| Series | TEN 40N | |
| Load Regulation | ±1% | |
| Maximum Temperature | +80°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 89% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 8A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Depth 11mm | ||
Length 50.8mm | ||
Series TEN 40N | ||
Load Regulation ±1% | ||
Maximum Temperature +80°C | ||
Minimum Temperature -40°C | ||
Efficiency 89% | ||
