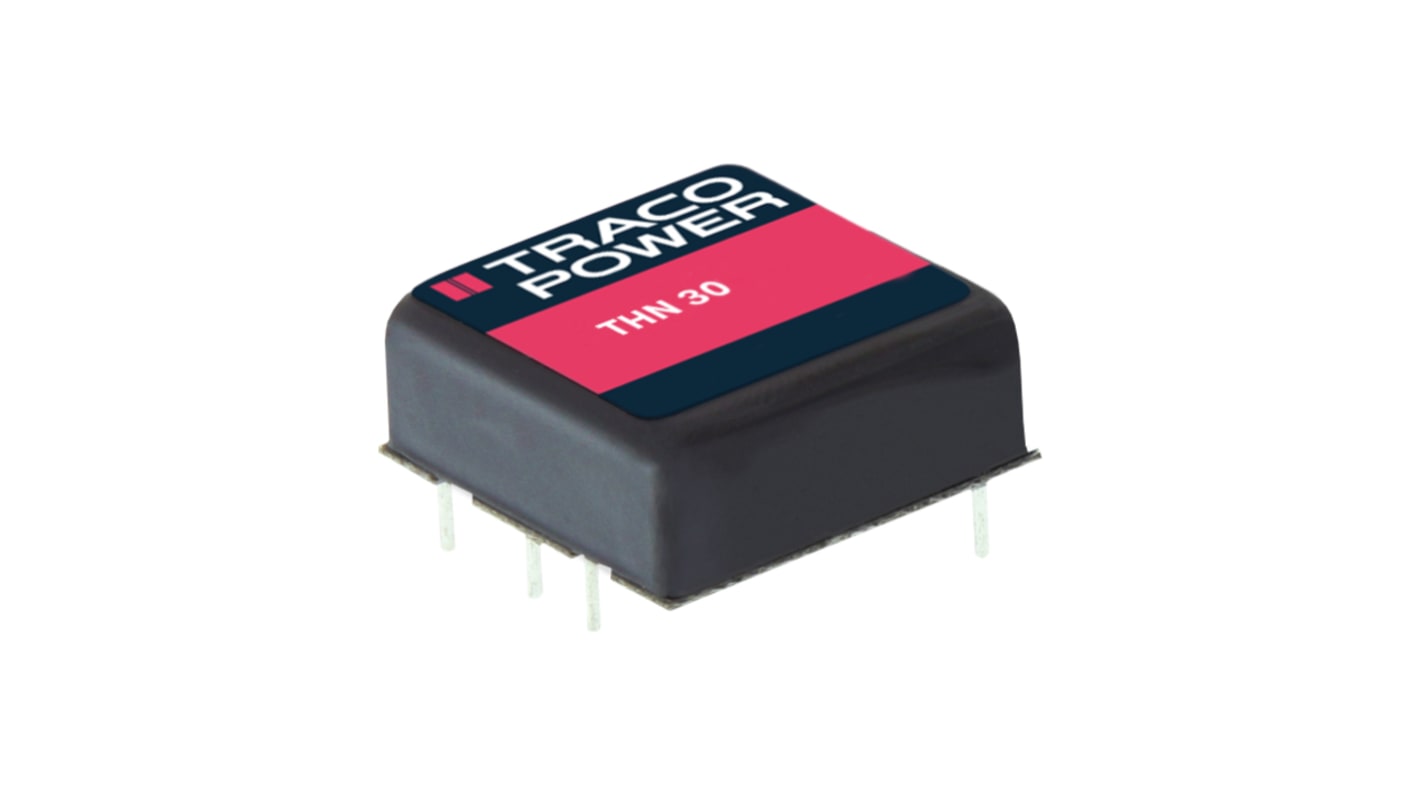

TRACOPOWER THN 30 DC-DC Converter, 5V dc/ 6A Output, 36 → 75 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-5936
- Mfr. Part No.:
- THN 30-4811
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£645.75
(exc. VAT)
£774.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £645.75 | £64.575 |
| 5 - 9 | £626.37 | £62.637 |
| 10 - 24 | £607.00 | £60.70 |
| 25 - 49 | £581.18 | £58.118 |
| 50 + | £555.35 | £55.535 |
*price indicative
- RS Stock No.:
- 166-5936
- Mfr. Part No.:
- THN 30-4811
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 6A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Series | THN 30 | |
| Load Regulation | 0.002 | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 89% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 6A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Series THN 30 | ||
Load Regulation 0.002 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 89% | ||
