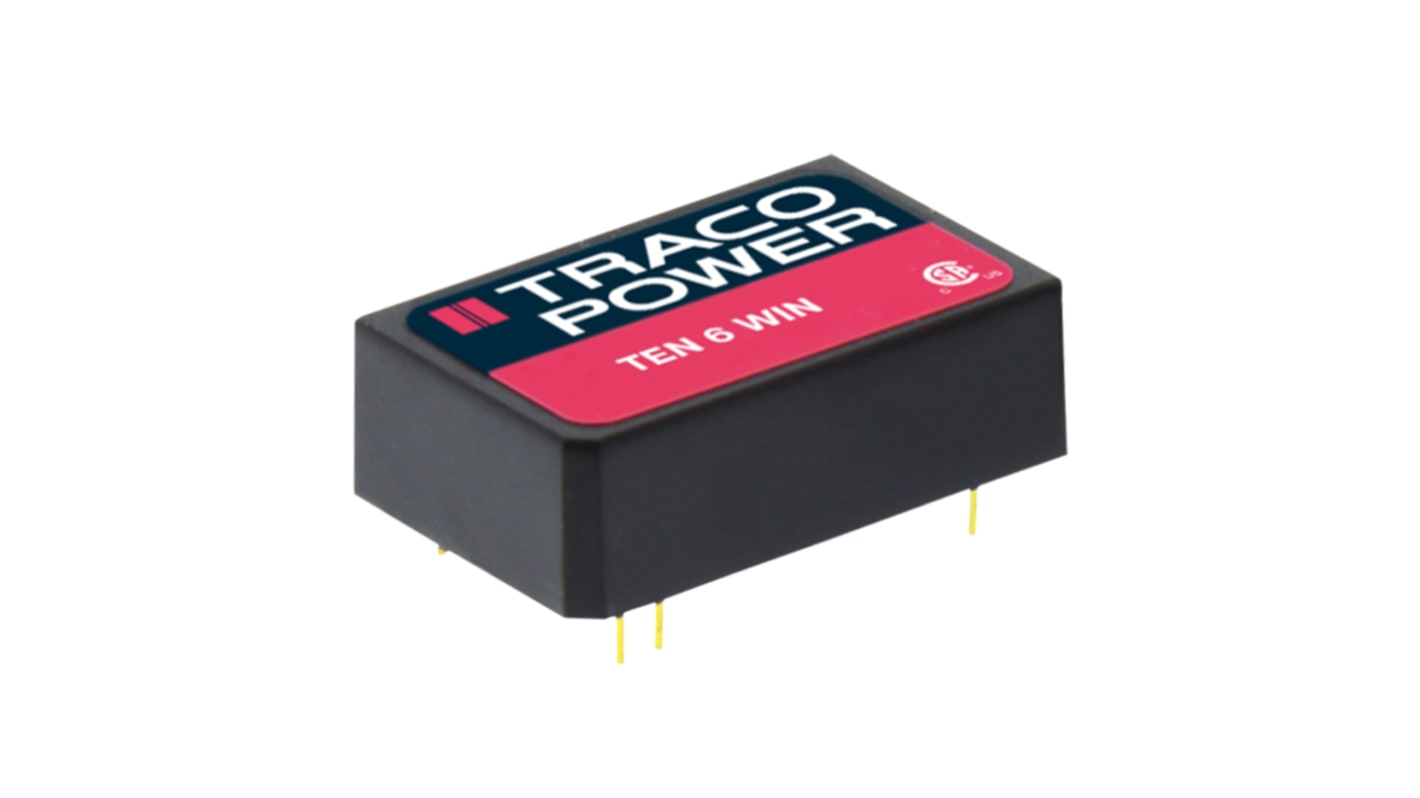

TRACOPOWER TEN 6WIN HI DC-DC Converter, 15V dc/ 400mA Output, 9 → 36 V dc Input, 6W, Through Hole, +85°C Max
- RS Stock No.:
- 166-5757
- Mfr. Part No.:
- TEN 6-2413WIN-HI
- Brand:
- TRACOPOWER
Available to back order for despatch 01/05/2026
Price 1 Tube of 10
£221.36
(exc. VAT)
£265.63
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £221.36 | £22.136 |
| 5 - 9 | £214.72 | £21.472 |
| 10 - 24 | £208.08 | £20.808 |
| 25 - 49 | £199.22 | £19.922 |
| 50 + | £190.37 | £19.037 |
| *price indicative | ||
- RS Stock No.:
- 166-5757
- Mfr. Part No.:
- TEN 6-2413WIN-HI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 6W Isolated DIP24 DC/DC Converters - TEN 6WIN Series
TEN 6WIN Series 6W isolated DIP24 DC/DC converters with a wide 4:1 input voltage range, an optimized cost/performance ratio and a high efficiency. These TEN 6WIN Series isolated DC/DC converters have a DIP-24 standard plastic package making them ideal for drop in replacements for cost critical applications.
4:1 input voltage range
High efficiency of up to 84%
Overload protection
No minimum load required
Internal filter to meet EN 55022 class A
1500 VDC and 3000 VDC (WIN-HI versions only) I/O isolation
Industry standard pinout
High efficiency of up to 84%
Overload protection
No minimum load required
Internal filter to meet EN 55022 class A
1500 VDC and 3000 VDC (WIN-HI versions only) I/O isolation
Industry standard pinout
Note
MTBF: MIL-HDBK-217F
Derating: 3.3 & 5Vdc models - 2.5 %/K above +60°C, other models 3.3 %/K above +70°C
The load regulation for dual output models will be 3.0% where a 50%/100% unbalanced load is drawn.
Derating: 3.3 & 5Vdc models - 2.5 %/K above +60°C, other models 3.3 %/K above +70°C
The load regulation for dual output models will be 3.0% where a 50%/100% unbalanced load is drawn.
Standards
UL/cUL 60950-1, IEC/EN 60950-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 6W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 400mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 3kV dc |
| Length | 31.8mm |
| Depth | 10.2mm |
| Series | TEN 6WIN HI |
| Load Regulation | ±1.2% |
| Minimum Temperature | -40°C |
| Efficiency | 84% |
| Maximum Temperature | +85°C |
