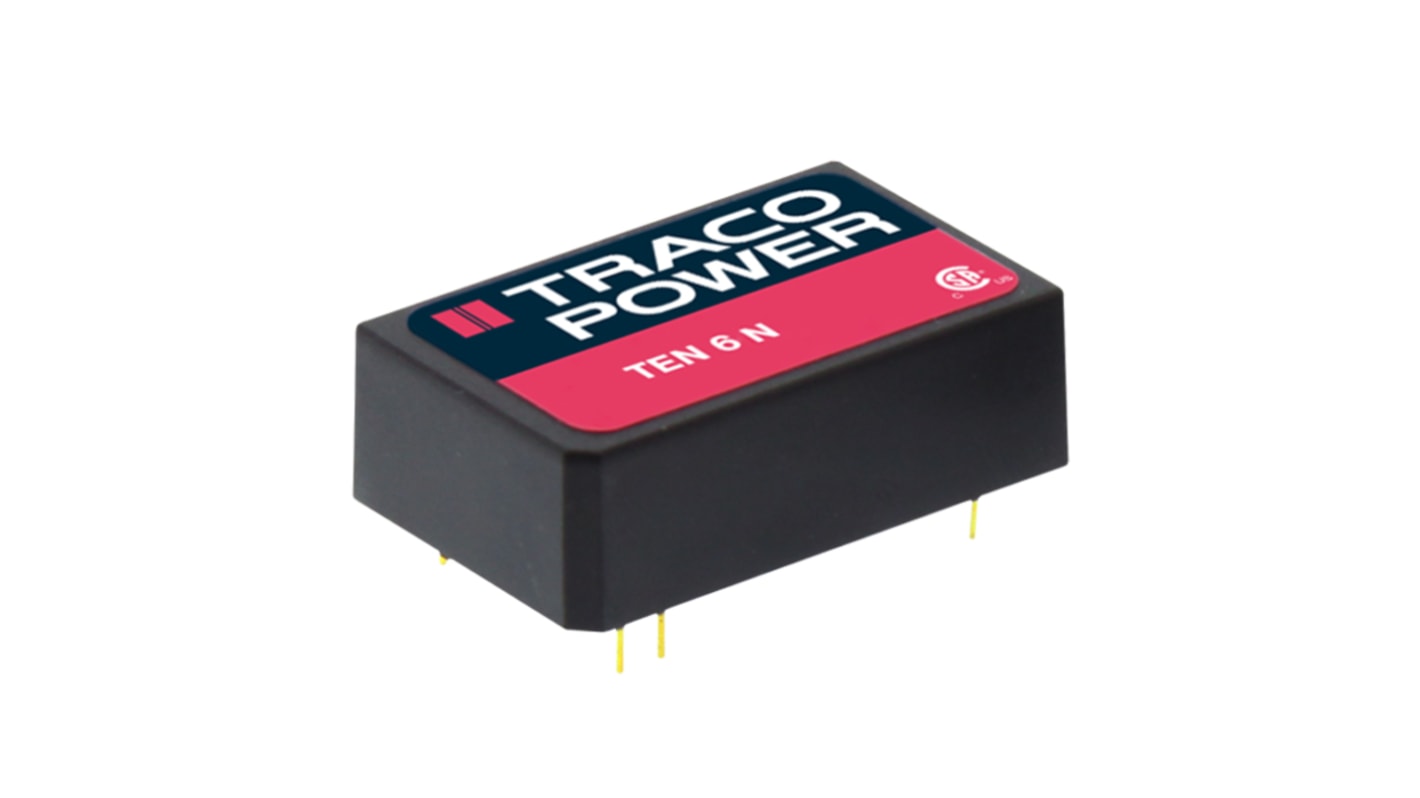

TRACOPOWER TEN 6N DC/DC Converter, 5V dc/ 1.2 A, 36V dc Input, 18V Input 6 W, Through Hole, 85 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£176.29

(exc. VAT)

£211.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£176.29£17.629
5 - 9£171.00£17.10
10 - 24£165.71£16.571
25 - 49£158.66£15.866
50 +£151.60£15.16

*price indicative

RS Stock No.:
166-5738
Mfr. Part No.:
TEN 6-2411N
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

1.2A

Mount Type

Through Hole

Number of Outputs

1

MTBF

1000000h

Isolation Voltage

1.5kV dc

Number of Pins

8

Maximum Output Power

6W

Package Type

DIP-24

Series

TEN 6N

Standards/Approvals

No

Depth

10.2mm

Length

31.8mm

Efficiency

80%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW

TRACOPOWER TEN 6N Series DC-DC Converter, 18 to 36V DC Input Voltage Range, 6W Power Rating - TEN 6-2411N


This DC-DC converter provides an efficient power solution for various electronic applications. It converts input voltages from 18V to 36V DC into a steady 5V DC output, delivering up to 6W of power. Its Compact DIP 24 packaging is suitable for PCB mount installations in devices like automation systems and electronic power components.

Features & Benefits


• High efficiency of 80% reduces energy loss

• Integrated overload protection for safe operation

• Offers I/O isolation up to 1.5kV for enhanced safety

• No minimum load requirements for flexible usage

Applications


• Powers sensors in automation systems

• Employed in control devices for industrial usage

• Suitable for electronic circuits needing a consistent 5V output

• Ideal for integrated systems that require a Compact power supply

How it can be install this device on a PCB?


It can be soldered onto the PCB using standard through-hole techniques.

Is this device safe for sensitive electronic equipment?


Yes, the isolation voltage of 1.5kV protects against interference.

Can it be used in outdoor applications?


It should be used with adequate protection if exposed to outdoor conditions.

What happens if the load exceeds the rated output?


The overload protection feature will automatically limit the current to prevent damage.
