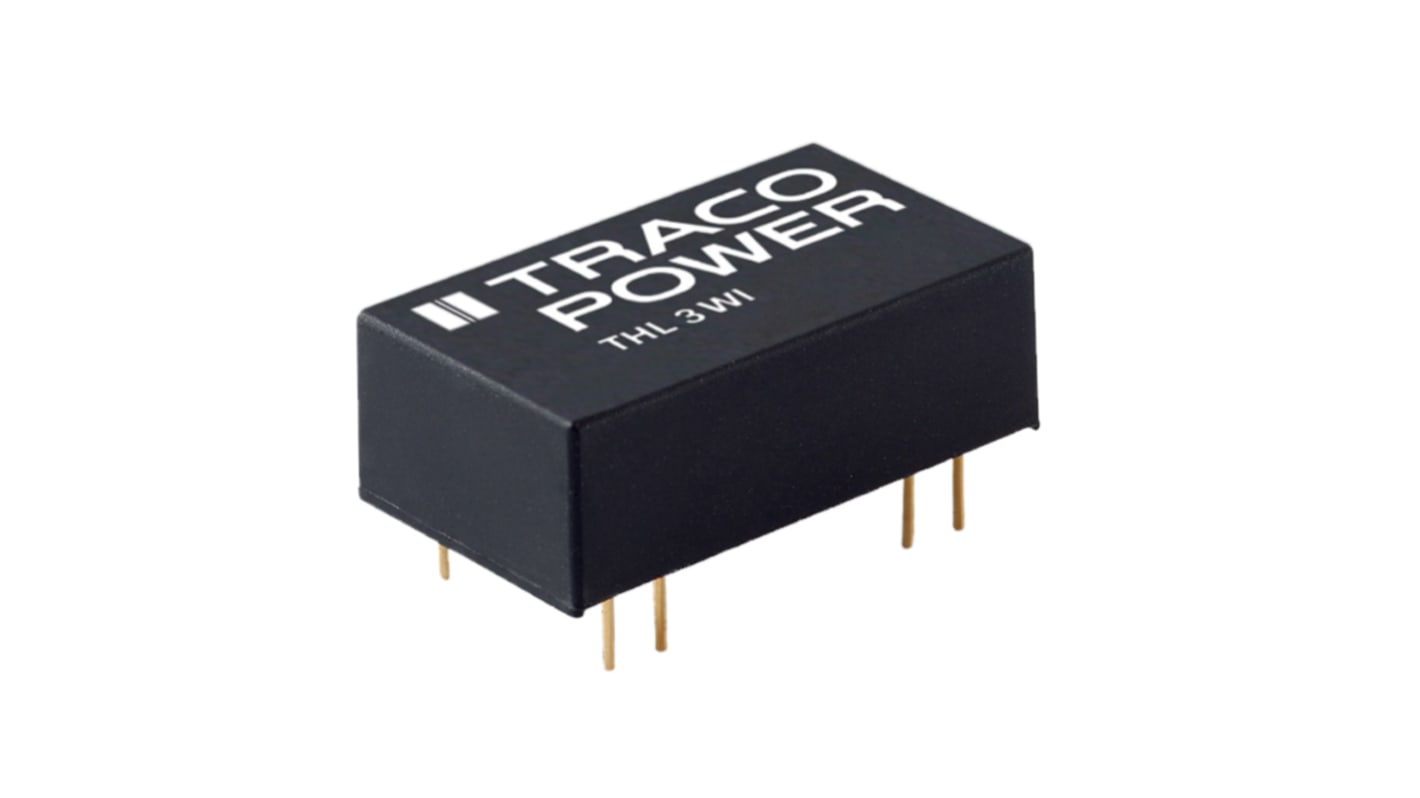

TRACOPOWER THL 3WI DC-DC Converter, 24V dc/ 125mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp

RS Stock No.:: 166-5729
Mfr. Part No.:: THL 3-2415WI
Brand:: TRACOPOWER

TRACOPOWER THL 3WI DC-DC Converter, 24V dc/ 125mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp

9 In stock - FREE next working day delivery available

Price 1 Tube of 10

£157.98

(exc. VAT)

£189.58

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£157.98	£15.798
5 - 9	£153.24	£15.324
10 - 24	£148.50	£14.85
25 - 49	£142.18	£14.218
50 +	£135.86	£13.586

*price indicative

RS Stock No.:: 166-5729
Mfr. Part No.:: THL 3-2415WI
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - THL 3WI Series

THL 3WISM series DIP 3W DC/DC converters with fully regulated outputs. These DIP 3W DC/DC converters have an ultra wide 4:1 input voltage range and an internal filter that meets EN55022 Class A without external components. Typical applications for these DC/DC converters include data and telecom applications, instrumentation and industrial electronics.

Compact DIP package
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
EMC protection EN55022 level A, FCC part 15, level A without external components

Note

MTBF to MIL-HDBK-217F (25°C).
Load derating: 2.5%/K above +65°C

Standards

IEC 60950-1, UL 60950-1

Specifications

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	9 → 36 V dc
Power Rating	3W
Input Voltage Nominal	24 V dc
Output Current	125mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP
Isolation Voltage	1.5kV dc
Depth	8mm
Length	23.8mm
Series	THL 3WI
Load Regulation	±1%
Minimum Temperature	-40°C
Maximum Temperature	+85°C
Efficiency	80%
