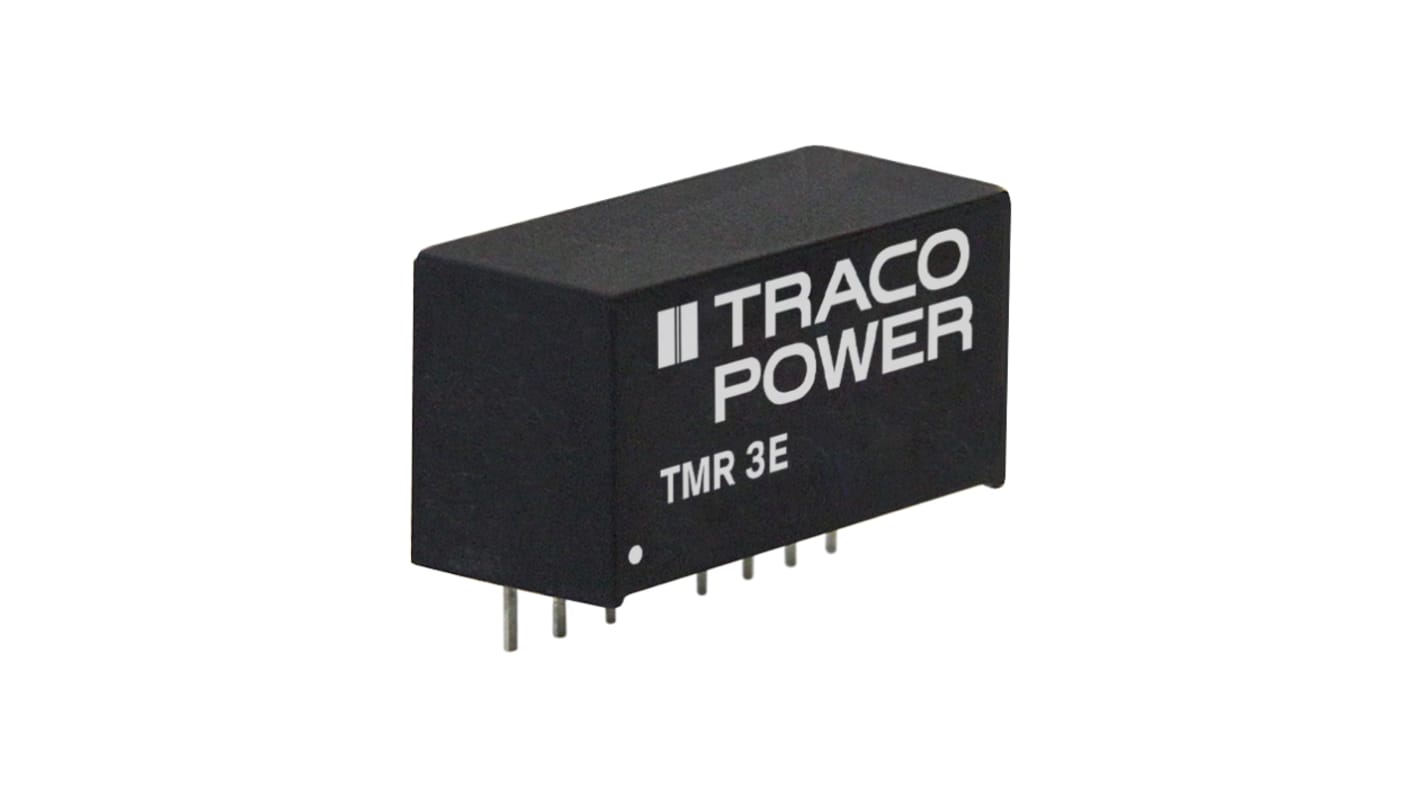

TRACOPOWER TMR 3E DC-DC Converter, 5V dc/ 600mA Output, 36 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5720
- Mfr. Part No.:
- TMR 3-4811E
- Brand:
- TRACOPOWER
Available to back order for despatch 28/08/2024
Added
Price 1 Tube of 10
£133.08
(exc. VAT)
£159.70
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £133.08 | £13.308 |
| 5 - 9 | £129.09 | £12.909 |
| 10 - 24 | £125.10 | £12.51 |
| 25 - 49 | £119.77 | £11.977 |
| 50 + | £114.45 | £11.445 |
| *price indicative | ||
- RS Stock No.:
- 166-5720
- Mfr. Part No.:
- TMR 3-4811E
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W SIP Single/Dual Output Regulated Isolated DC-DC Converter - TMR 3E Series
3W single/dual output DC/DC converters with a compact SIP-8 package, regulated output and a wide 2:1 input voltage range. These 3W single/dual output DC/DC converters are highly efficient allowing a -40 to +85°C operating temperature range. The compact size of these single/dual output DC/DC converters make them ideal for use in applications such as communication equipment, instrumentation and industrial electronics.
Compact SIP-8 package with 2 cm2 footprint
Wide 2:1 input voltage range
Remote On/Off control
Continuous short circuit protection
Wide 2:1 input voltage range
EMC compliance to EN55022 level A, FCC part 15 level A
Wide 2:1 input voltage range
Remote On/Off control
Continuous short circuit protection
Wide 2:1 input voltage range
EMC compliance to EN55022 level A, FCC part 15 level A
Note
MTBF to MIL-HDBK-217F (25°C)
Load derates at 3.3% / K above 70°C
Load derates at 3.3% / K above 70°C
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 36 → 75 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 8 |
| Isolation Voltage | 1.5kV dc |
| Depth | 11.2mm |
| Length | 21.8mm |
| Series | TMR 3E |
| Load Regulation | ±1% |
| Efficiency | 78% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
