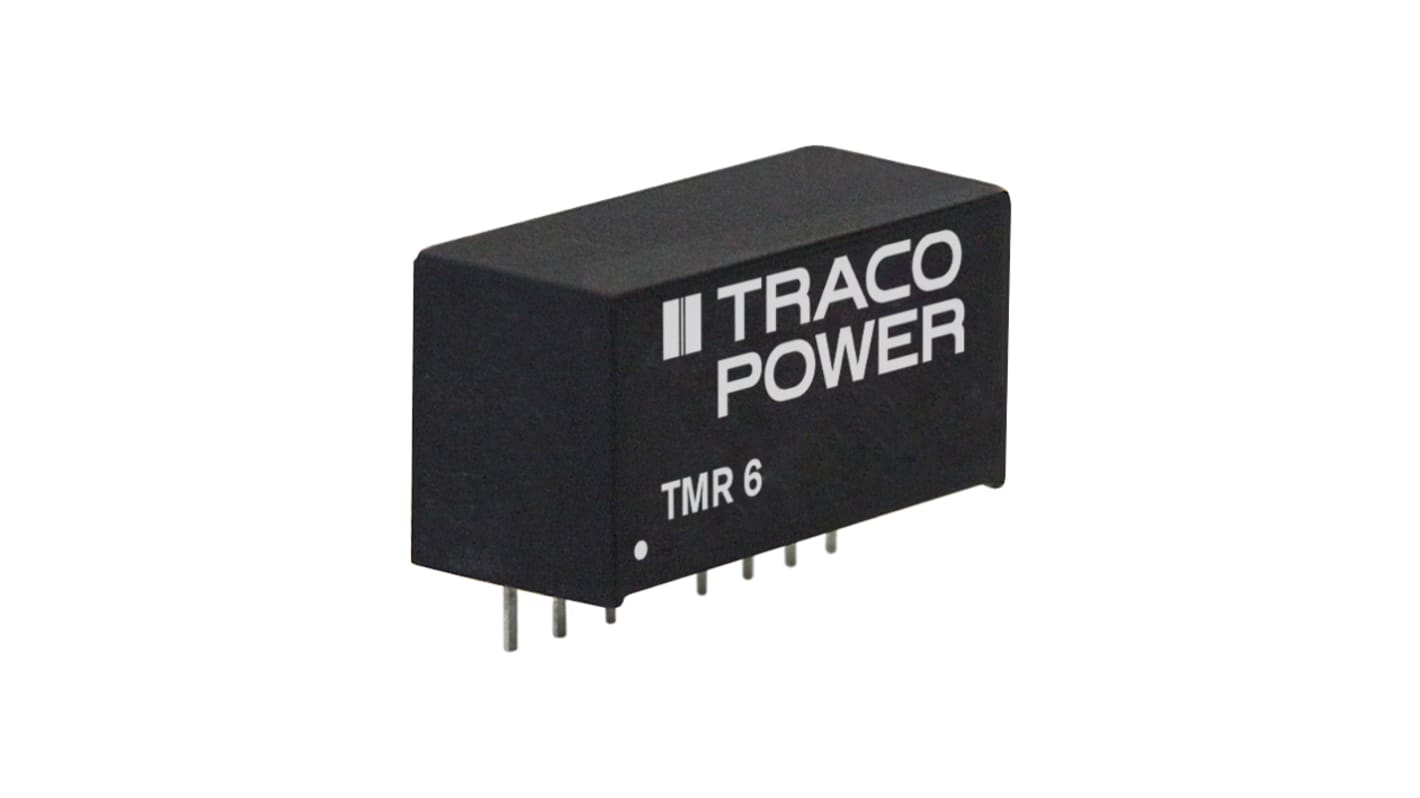

TRACOPOWER TMR 6 DC-DC Converter, 15V dc/ 400mA Output, 9 → 18 V dc Input, 6W, Through Hole, +70°C Max Temp
- RS Stock No.:
- 166-5680
- Mfr. Part No.:
- TMR 6-1213
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£180.45
(exc. VAT)
£216.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £180.45 | £18.045 |
| 5 - 9 | £175.04 | £17.504 |
| 10 - 24 | £169.62 | £16.962 |
| 25 - 49 | £162.40 | £16.24 |
| 50 + | £155.19 | £15.519 |
*price indicative
- RS Stock No.:
- 166-5680
- Mfr. Part No.:
- TMR 6-1213
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 400mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 11.2mm | |
| Length | 21.8mm | |
| Series | TMR 6 | |
| Load Regulation | ±1% | |
| Maximum Temperature | +70°C | |
| Efficiency | 83% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 400mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 11.2mm | ||
Length 21.8mm | ||
Series TMR 6 | ||
Load Regulation ±1% | ||
Maximum Temperature +70°C | ||
Efficiency 83% | ||
Minimum Temperature -40°C | ||
