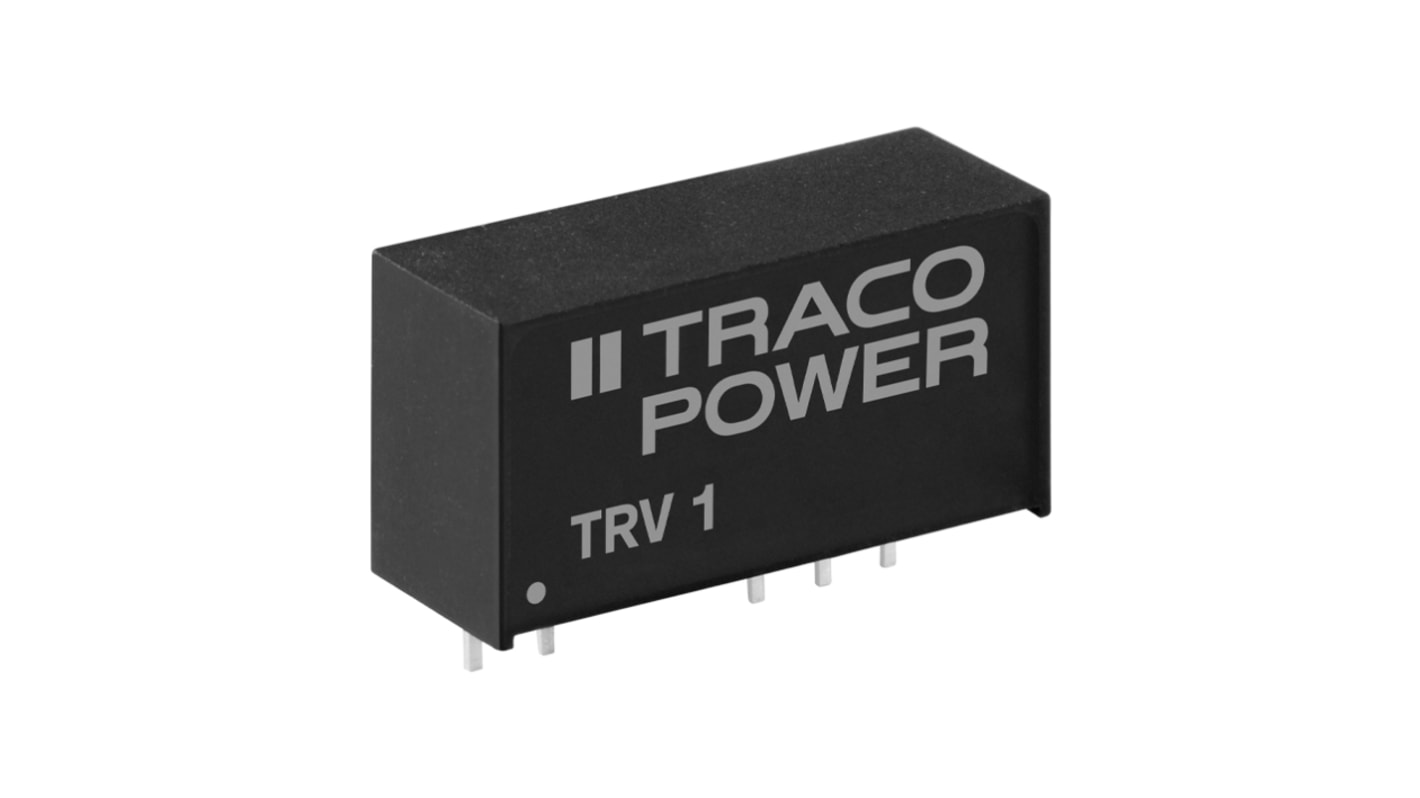

TRACOPOWER TRV 1 DC/DC Converter, 9V dc/ 110 mA, 24V Input, 24V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp, 4-Pin

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£74.76

(exc. VAT)

£89.71

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£74.76£7.476
5 - 9£72.52£7.252
10 - 24£70.28£7.028
25 - 49£67.29£6.729
50 +£64.29£6.429

*price indicative

RS Stock No.:
166-5653
Mfr. Part No.:
TRV 1-2419
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

9V dc

Maximum Input Voltage

24V

Minimum Input Voltage

24V

Output Current 1

110mA

Mount Type

PCB

MTBF

2000000h

Number of Outputs

5

Number of Pins

4

Isolation Voltage

3kV

Package Type

Plastic Case

Maximum Output Power

1W

Length

19.5mm

Depth

10.2mm

Series

TRV 1

Standards/Approvals

No

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

86%

COO (Country of Origin):
TW

Traco 1W SIP Single/Dual Output Semi-regulated Isolated DC-DC Converter - TRV 1 Series


1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 3000Vdc. These semi-regulated DC/DC converters are ideal for use within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change.

Ultra-miniature design with industry standard pinout

Semi-regulated output (load)

High input / output isolation voltage of 3000 Vdc

High efficiency of up to 87%

Note

MTBF to MIL-HDBK-217F (25°C)

Standards

IEC 60950-1, EN 60950-1
