MPN

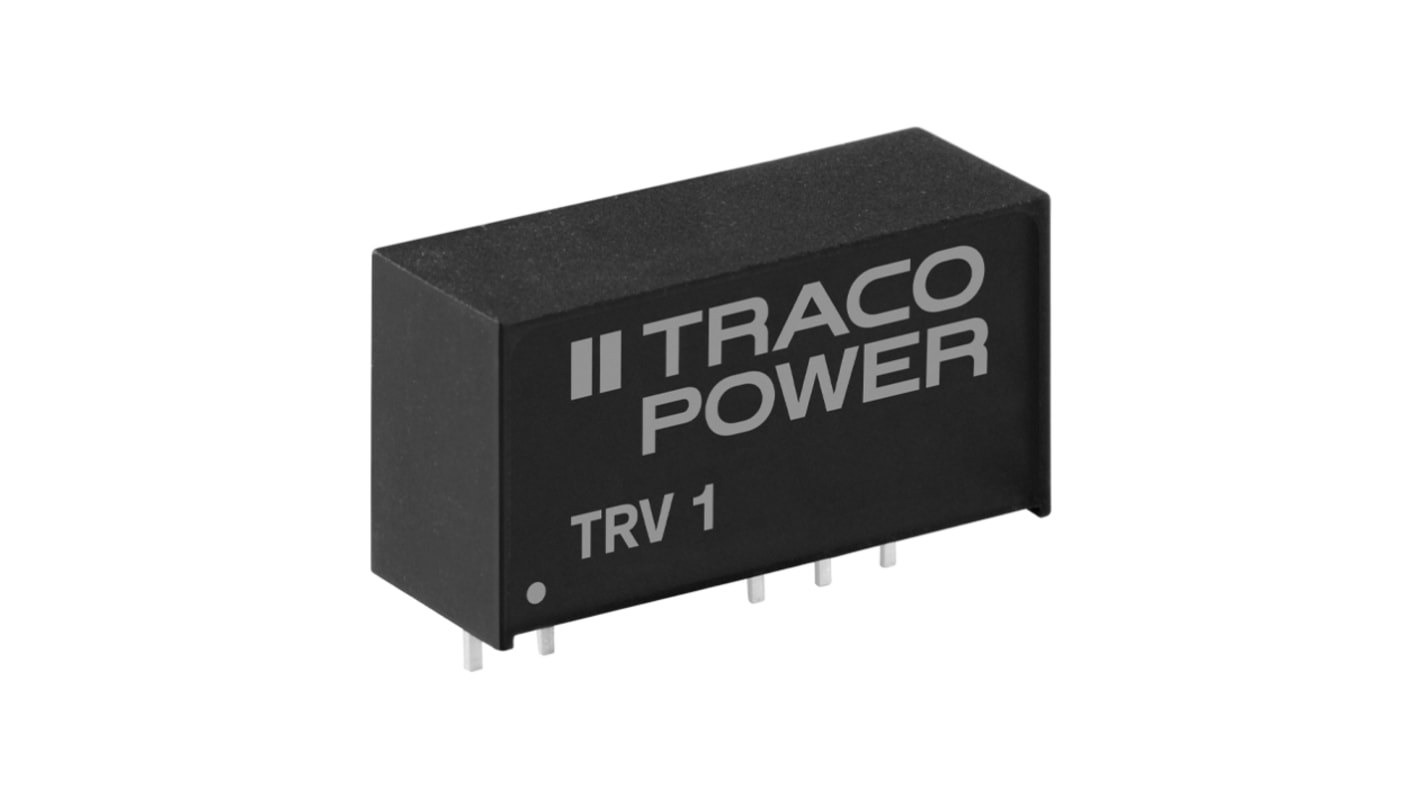

TRACOPOWER TRV 1 DC/DC Converter, 5V dc/ 200 mA, 12V Input, 12V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp, 4-Pin

RS Stock No.:: 166-5649
Mfr. Part No.:: TRV 1-1211
Brand:: TRACOPOWER

TRACOPOWER TRV 1 DC/DC Converter, 5V dc/ 200 mA, 12V Input, 12V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp, 4-Pin

Bulk discount available

View bulk pricing options

Subtotal (1 tube of 10 units)*

£64.77

(exc. VAT)

£77.72

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 08 January 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£64.77	£6.477
5 - 9	£62.82	£6.282
10 - 24	£60.88	£6.088
25 - 49	£58.29	£5.829
50 +	£55.70	£5.57

*price indicative

RS Stock No.:: 166-5649
Mfr. Part No.:: TRV 1-1211
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage 1	5V dc
	Product Type	DC/DC Converter
	Minimum Input Voltage	12V
	Maximum Input Voltage	12V
	Output Current 1	200mA
	Mount Type	PCB
	MTBF	2000000h
	Number of Outputs	5
	Number of Pins	4
	Isolation Voltage	3kV
	Package Type	Plastic Case
	Maximum Output Power	1W
	Series	TRV 1
	Length	19.5mm
	Depth	10.2mm
	Standards/Approvals	No
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Efficiency	84%

	Select all
	Brand TRACOPOWER
	Output Voltage 1 5V dc
	Product Type DC/DC Converter
	Minimum Input Voltage 12V
	Maximum Input Voltage 12V
	Output Current 1 200mA
	Mount Type PCB
	MTBF 2000000h
	Number of Outputs 5
	Number of Pins 4
	Isolation Voltage 3kV
	Package Type Plastic Case
	Maximum Output Power 1W
	Series TRV 1
	Length 19.5mm
	Depth 10.2mm
	Standards/Approvals No
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Efficiency 84%

Datasheet

COO (Country of Origin):: TW

Traco 1W SIP Single/Dual Output Semi-regulated Isolated DC-DC Converter - TRV 1 Series

1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 3000Vdc. These semi-regulated DC/DC converters are ideal for use within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change.

Ultra-miniature design with industry standard pinout

Semi-regulated output (load)

High input / output isolation voltage of 3000 Vdc

High efficiency of up to 87%

Note

MTBF to MIL-HDBK-217F (25°C)

Standards

IEC 60950-1, EN 60950-1
