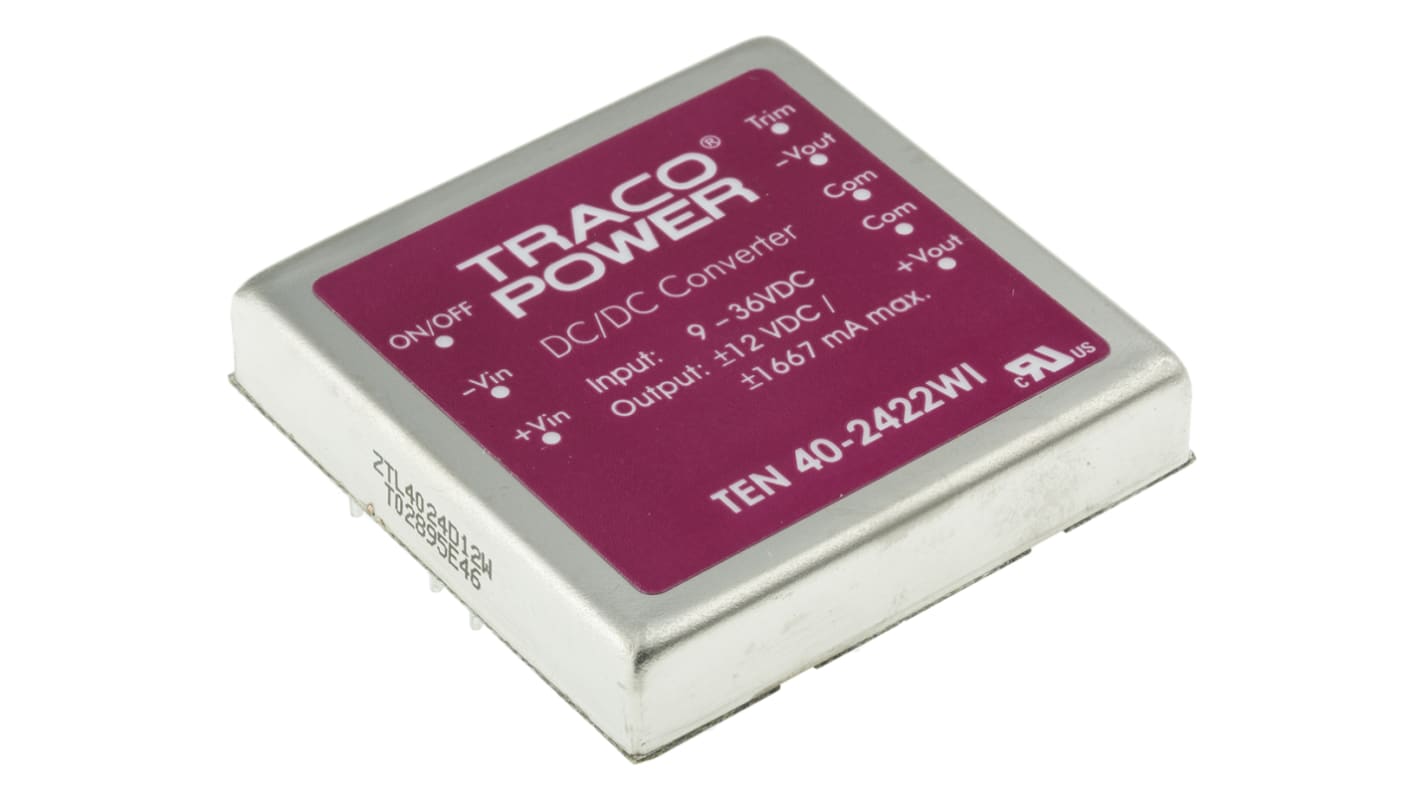

TRACOPOWER TEN 40WI DC/DC Converter, 12V dc/ 1670 mA, 36V dc Input, 9V Input 40 W, Through Hole, 85 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 5 units)*

£444.66

(exc. VAT)

£533.59

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£444.66£88.932
5 - 9£431.33£86.266
10 - 24£417.99£83.598
25 - 49£400.20£80.04
50 +£382.42£76.484

*price indicative

RS Stock No.:
166-5561
Mfr. Part No.:
TEN 40-2422WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

1670mA

Output Current 2

1670mA

Mount Type

Through Hole

Output Voltage 2

-12V dc

Input Ratio

4:1

Number of Outputs

2

MTBF

660000h

Output Voltage Adjustment Range

-10 to 10 %

Number of Pins

8

Isolation Voltage

1.5kV dc

Maximum Output Power

40W

Package Type

Shielded Metal Case with Insulated Baseplate

Length

50.8mm

Depth

10.2mm

Series

TEN 40WI

Standards/Approvals

No

Maximum Operating Temperature

85°C

Efficiency

86%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

Traco 40W Single/Dual Output Regulated Isolated DC-DC Converter - TEN-40WI Series


40W single/dual output regulated isolated DC-DC converters with a wide input voltage range and compact, low profile case. These isolated DC-DC converter modules have a high efficiency allowing an operating temperature range of -40°C to 85°C. Typical applications for these isolated DC-DC converter modules include battery operated equipment and distributed power architectures in communication and industrial electronics.

High power density in 51x51x10 mm metal package

Ultra-wide 4:1 input voltage range

1.5kV input / output isolation

Built-in filter meets EN 55022, Class A and FCC,Level A with external capacitor

Remote On/Off Control

Under voltage lockout, over voltage, over temperature and short circuit protection

Adjustable output voltage ±10%

Shielded metal case with insulated baseplate

Note

Derate above 55°C

Standards

UL 60950-1, EN 60950-1, IEC 60950-1 (Compliance up to 60Vdc input voltage, SELV limit)
