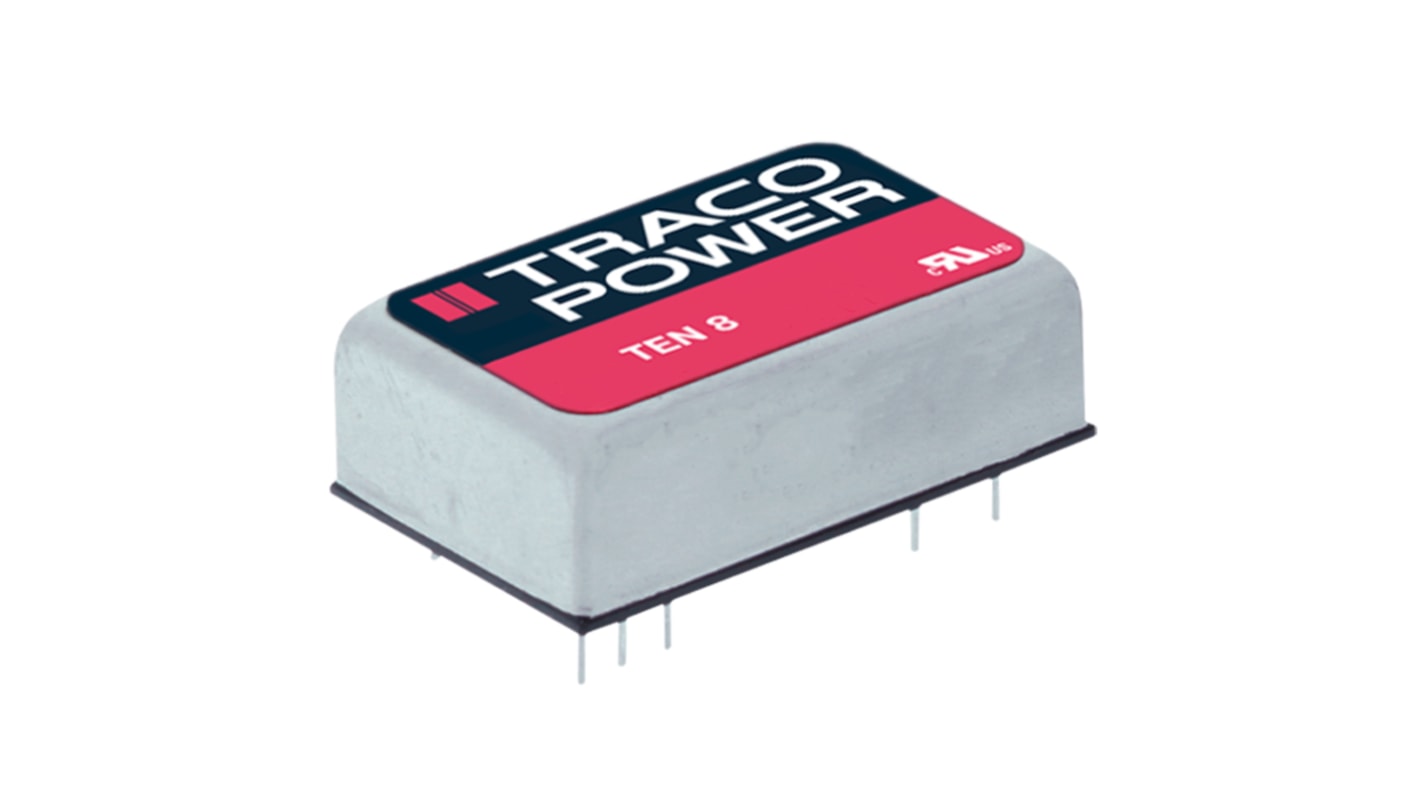

TRACOPOWER TEN 8 DC/DC Converter, 12V dc/ 333 mA, 18V dc Input, 9V Input 8 W, Through Hole, 85 °C Max Temp -40 °C Min
- RS Stock No.:
- 166-5459
- Mfr. Part No.:
- TEN 8-1222
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
£279.05
(exc. VAT)
£334.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £279.05 | £27.905 |
| 5 - 9 | £270.68 | £27.068 |
| 10 - 24 | £262.31 | £26.231 |
| 25 - 49 | £251.14 | £25.114 |
| 50 + | £239.98 | £23.998 |
*price indicative
- RS Stock No.:
- 166-5459
- Mfr. Part No.:
- TEN 8-1222
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 333mA | |
| Output Current 2 | 333mA | |
| Output Voltage 2 | -12V dc | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| MTBF | 3500000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | -1 to 1 % | |
| Number of Pins | 9 | |
| Isolation Voltage | 1.5kV dc | |
| Maximum Output Power | 8W | |
| Package Type | DIP-24 | |
| Series | TEN 8 | |
| Width | 20.3mm | |
| Depth | 10.2mm | |
| Length | 31.8mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 87% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 333mA | ||
Output Current 2 333mA | ||
Output Voltage 2 -12V dc | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
MTBF 3500000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range -1 to 1 % | ||
Number of Pins 9 | ||
Isolation Voltage 1.5kV dc | ||
Maximum Output Power 8W | ||
Package Type DIP-24 | ||
Series TEN 8 | ||
Width 20.3mm | ||
Depth 10.2mm | ||
Length 31.8mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 87% | ||
- COO (Country of Origin):
- TW
Traco Power TEN 8 Series DC-DC Converter, 87% Efficiency, Through Hole Mount - TEN 8-1222
This Traco Power DC-DC converter with a 12V input and DIP 24 package is a high efficiency solution designed for various industries. With features like isolated design and dual output capabilities, this converter provides reliable power conversion in a Compact form factor.
Features & Benefits
• Wide input voltage range allows for flexibility in different applications
• Isolated design ensures safety and protection for sensitive electronics
• High efficiency provides optimal power conversion with minimal energy loss
• 8W power rating offers sufficient power for various devices
• Through hole mounting provides simple installation process for PCB integration
• Dual output capability provides versatility in powering multiple components
Applications
• Battery operated equipment
• Instrumentation devices
• Communication systems
• Industrial electronics
What is the isolation voltage of the TEN 8-1222?
The converter has an isolation voltage of 1.5 kV.
What is the input voltage range for the TEN 8-1222 converter?
The input voltage range for this converter is 9-18 VDC.
What is the maximum output power of the TEN 8-1222?
The maximum output power of this converter is 8 watts.
Approvals
EN60950; UL1950
