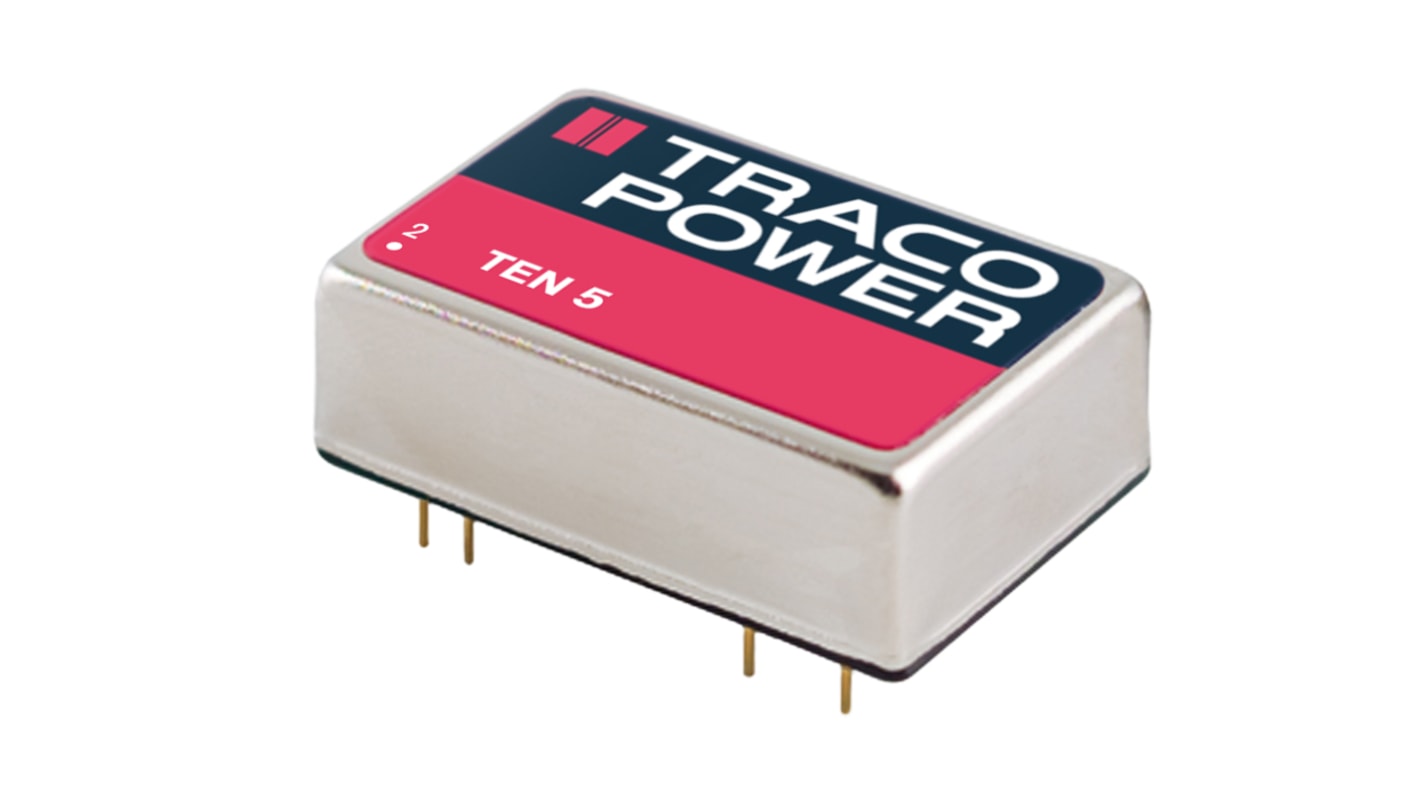

TRACOPOWER TEN 5 DC-DC Converter, 3.3V dc/ 1.2A Output, 9 → 18 V dc Input, 6W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5444
- Mfr. Part No.:
- TEN 5-1210
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£229.39
(exc. VAT)
£275.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 18 December 2025
- Plus 999,999,998 unit(s) shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £229.39 | £22.939 |
| 5 - 9 | £222.51 | £22.251 |
| 10 - 24 | £215.62 | £21.562 |
| 25 - 49 | £206.44 | £20.644 |
| 50 + | £197.28 | £19.728 |
*price indicative
- RS Stock No.:
- 166-5444
- Mfr. Part No.:
- TEN 5-1210
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 1.2A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Width | 20mm | |
| Depth | 10mm | |
| Length | 32mm | |
| Series | TEN 5 | |
| Load Regulation | ±1% | |
| Efficiency | 77% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 1.2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Width 20mm | ||
Depth 10mm | ||
Length 32mm | ||
Series TEN 5 | ||
Load Regulation ±1% | ||
Efficiency 77% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
