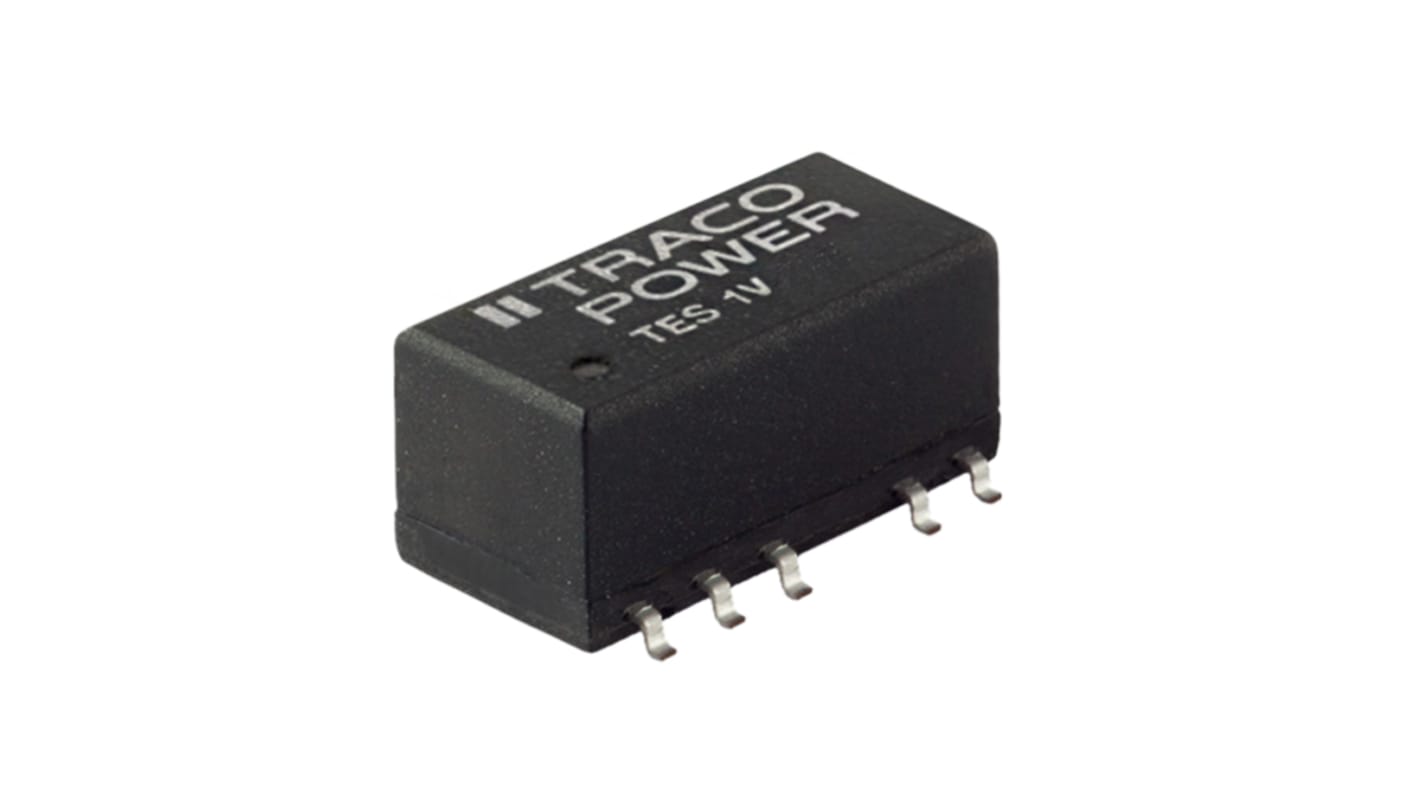

TRACOPOWER TES 1V DC/DC Converter, 5V dc/ 100 mA, 5.5V dc Input, 4.5V Input 1 W, Surface, 90 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£95.86

(exc. VAT)

£115.03

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 27 April 2026
  • Plus 1 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£95.86£9.586
5 - 9£92.98£9.298
10 - 24£90.12£9.012
25 - 49£86.28£8.628
50 +£82.45£8.245

*price indicative

RS Stock No.:
166-5374
Mfr. Part No.:
TES 1-0521V
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Maximum Input Voltage

5.5V dc

Minimum Input Voltage

4.5V

Output Current 1

100mA

Output Current 2

100mA

Output Voltage 2

-5V dc

Mount Type

Surface

Number of Outputs

2

Isolation Voltage

3kV dc

Maximum Output Power

1W

Package Type

Surface Mount

Standards/Approvals

No

Depth

7.67mm

Length

16.3mm

Series

TES 1V

Maximum Operating Temperature

90°C

Efficiency

75%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

Traco 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - TES 1V Series


Small SMD package with standard footprint

I/O isolation voltage 3000 Vdc

Single- and dual output models

High efficiency up to 80%

Operating temperature range –40°C to +85°C

High accuracy of pin co-planarity

Qualified for lead free reflow solder process according to IPC/JEDEC J-STD-020D
