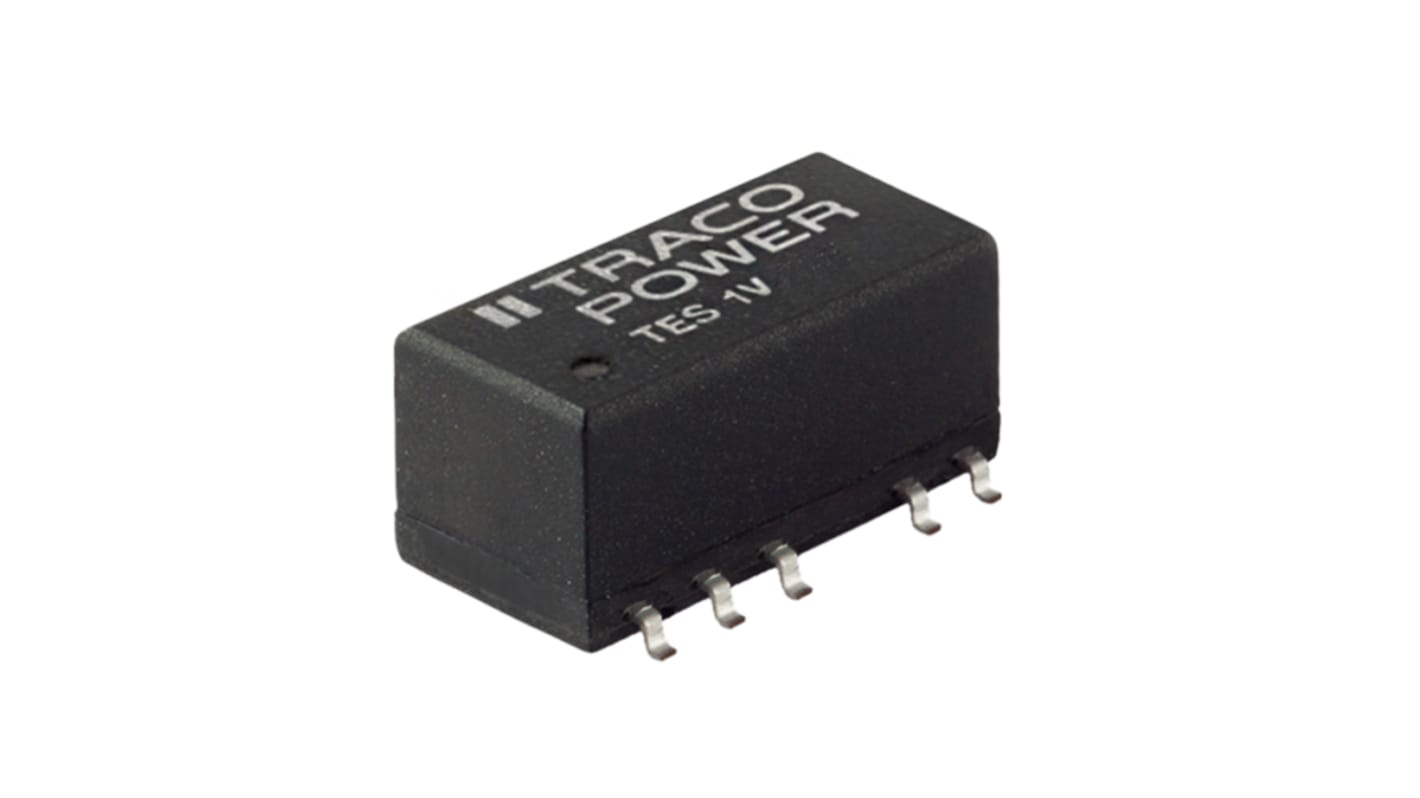

TRACOPOWER TES 1V DC-DC Converter, 15V dc/ 67mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +85°C Max Temp
- RS Stock No.:
- 166-5373
- Mfr. Part No.:
- TES 1-0513V
- Brand:
- TRACOPOWER
3 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£48.92
(exc. VAT)
£58.70
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 + | £48.92 | £4.892 |
*price indicative |
- RS Stock No.:
- 166-5373
- Mfr. Part No.:
- TES 1-0513V
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - TES 1V Series
Small SMD package with standard footprint
I/O isolation voltage 3000 Vdc
Single- and dual output models
High efficiency up to 80%
Operating temperature range –40°C to +85°C
High accuracy of pin co-planarity
Qualified for lead free reflow solder process according to IPC/JEDEC J-STD-020D
I/O isolation voltage 3000 Vdc
Single- and dual output models
High efficiency up to 80%
Operating temperature range –40°C to +85°C
High accuracy of pin co-planarity
Qualified for lead free reflow solder process according to IPC/JEDEC J-STD-020D
Specifications
Attribute | Value |
---|---|
Output Voltage | 15V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | 67mA |
Mounting Type | Surface Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 12 |
Isolation Voltage | 3kV dc |
Length | 16.3mm |
Depth | 7.67mm |
Series | TES 1V |
Load Regulation | ±10% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 80% |
