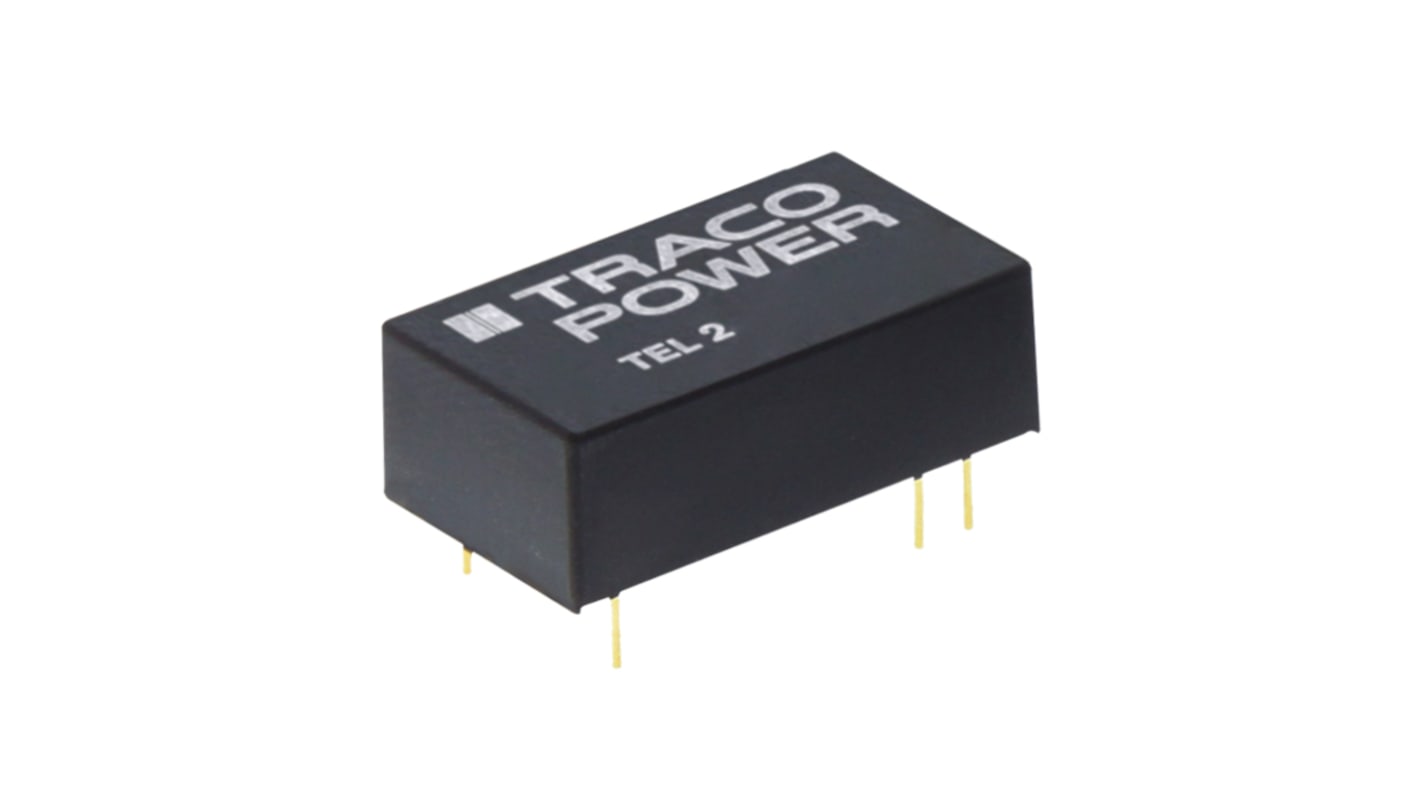

TRACOPOWER TEL 2 DC-DC Converter, ±12V dc/ ±85mA Output, 36 → 72 V dc Input, 2W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 166-5335
- Mfr. Part No.:
- TEL 2-4822
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£140.29
(exc. VAT)
£168.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £140.29 | £14.029 |
| 5 - 9 | £136.07 | £13.607 |
| 10 - 24 | £131.87 | £13.187 |
| 25 - 49 | £126.26 | £12.626 |
| 50 + | £120.64 | £12.064 |
*price indicative
- RS Stock No.:
- 166-5335
- Mfr. Part No.:
- TEL 2-4822
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 36 → 72 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±85mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 16 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 7.62mm | |
| Length | 23.8mm | |
| Series | TEL 2 | |
| Load Regulation | ±2% | |
| Efficiency | 77% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +75°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 36 → 72 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±85mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Depth 7.62mm | ||
Length 23.8mm | ||
Series TEL 2 | ||
Load Regulation ±2% | ||
Efficiency 77% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +75°C | ||
- COO (Country of Origin):
- TW
Traco 2W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-2 Series
The Traco Power TEL-2 series is a range of isolated, 2 Watt, DC-DC converters in a DIP-16 package. With their low profile these regulated converters require only 3.25 cm2 of space on the PCB providing a complete DC-DC converter without need of any external components. The TEL-2 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.
Ultracompact DIP-16 plastic package
Wide 2:1 input range
Regulated output
I/O isolation 1500V
Input filter meets EN55022, class A without ext. components
Low ripple and noise
Indefinite shortcircuit protection
Operating temperature range –40°C to +75°C (no derating)
Lead free design, RoHS compliant
Wide 2:1 input range
Regulated output
I/O isolation 1500V
Input filter meets EN55022, class A without ext. components
Low ripple and noise
Indefinite shortcircuit protection
Operating temperature range –40°C to +75°C (no derating)
Lead free design, RoHS compliant
Standards
UL/cUL 60950-1 , IEC/EN 60950-1
Approvals
CSA 60950-1-03 File no. 226037
