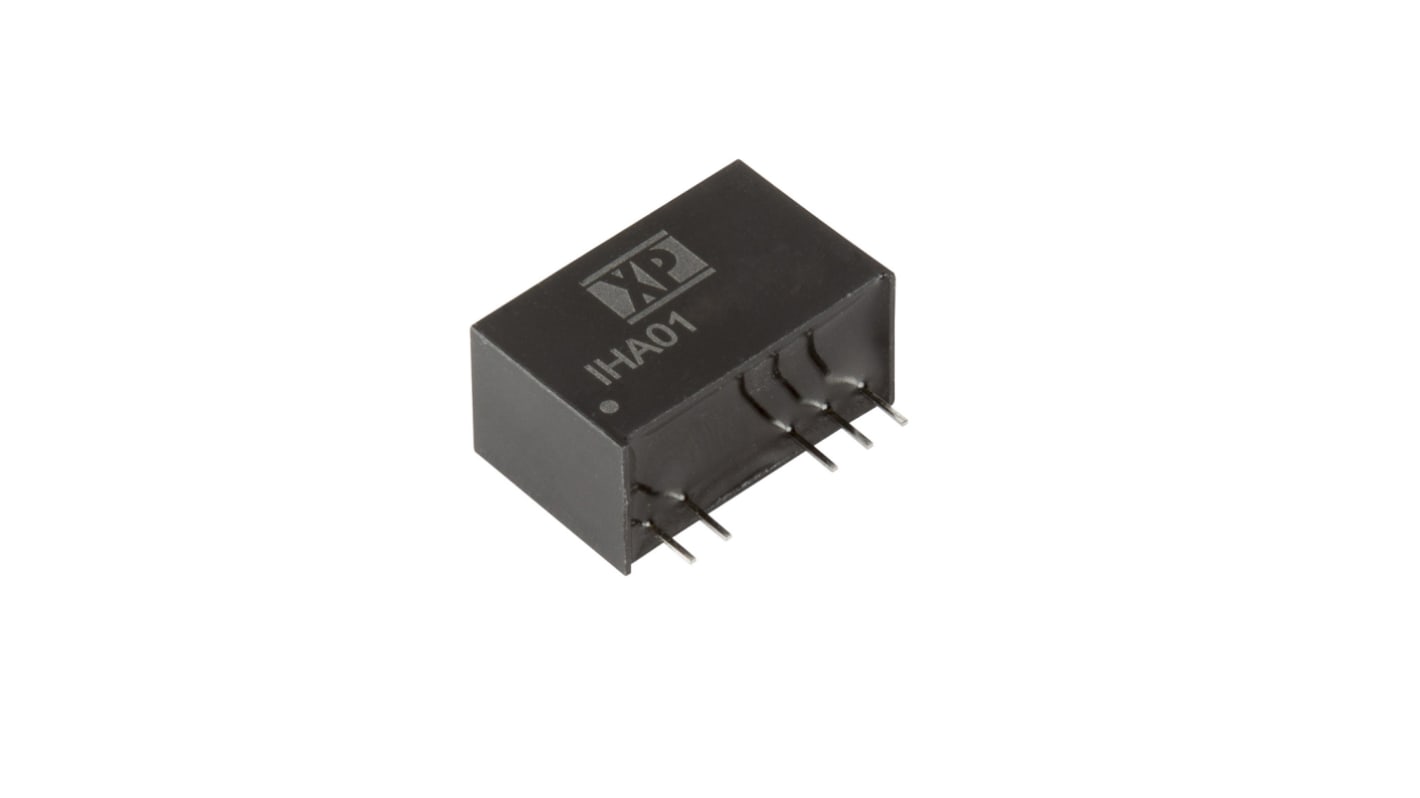

XP Power IHA01 DC-DC Converter, ±9V dc/ ±56mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp

RS Stock No.:: 165-7869
Mfr. Part No.:: IHA0115D09
Brand:: XP Power

XP Power IHA01 DC-DC Converter, ±9V dc/ ±56mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp

Bulk discount available

Price 1 Tube of 20**

£112.51

(exc. VAT)

£135.01

(inc. VAT)

Available to back order for despatch 18/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£112.51	£5.626
5 - 9	£109.14	£5.457
10 - 24	£105.77	£5.288
25 - 49	£102.38	£5.119
50 +	£99.01	£4.95

**price indicative

RS Stock No.:: 165-7869
Mfr. Part No.:: IHA0115D09
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±9V dc
Input Voltage Range	13.5 → 16.5 V dc
Power Rating	1W
Input Voltage Nominal	15 V dc
Output Current	±56mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	6kV dc
Length	19.5mm
Depth	12.5mm
Width	9.8mm
Series	IHA01
Load Regulation	0.1
Minimum Temperature	-40°C
Maximum Temperature	+85°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

XP Power IHA01 DC-DC Converter, ±9V dc/ ±56mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp

FREE delivery for orders over £50.00

XP Power Isolated DC-DC Converter - IHA Series
