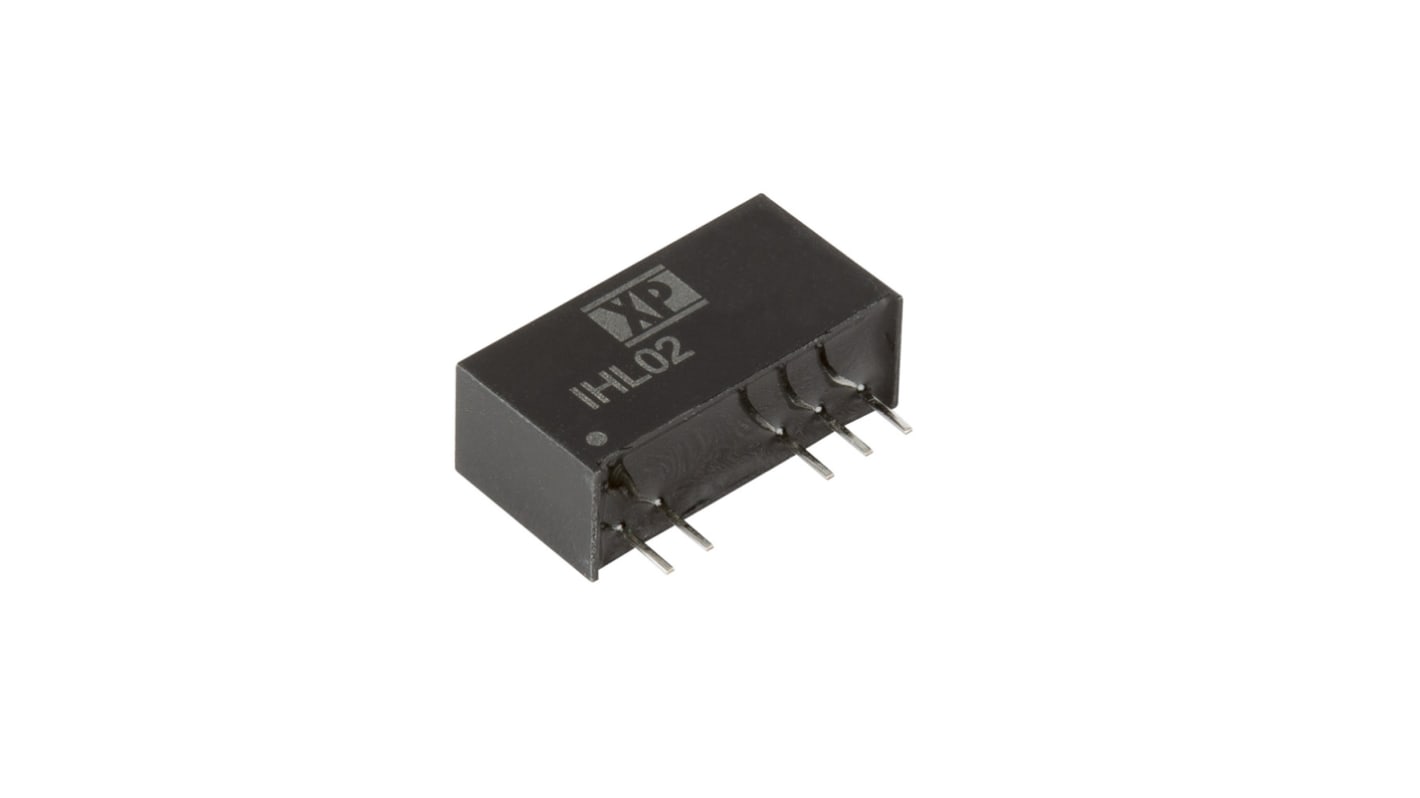

XP Power IHL02 DC-DC Converter, 9V dc/ 222mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +95°C Max Temp

RS Stock No.:: 165-7838
Mfr. Part No.:: IHL0224S09
Brand:: XP Power

XP Power IHL02 DC-DC Converter, 9V dc/ 222mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +95°C Max Temp

Available to back order for despatch 21/10/2024

Price 1 Tube of 20

£128.97

(exc. VAT)

£154.76

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£128.97	£6.448
5 - 9	£125.10	£6.255
10 - 24	£121.23	£6.062
25 - 49	£117.36	£5.868
50 +	£113.49	£5.674

*price indicative

RS Stock No.:: 165-7838
Mfr. Part No.:: IHL0224S09
Brand:: XP Power

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power - IHL Series of Isolated DC-DC Converters

XP Power IHA02 Series of DC-DC Converters offers a highly isolated solution to a wide range of applications. IHA02 Series provides 250 V ac working voltage, with single and dual output options enabling installations into a wide variety of single phase environments.
The IHA02 Series has been designed with new and existing applications in mind. XP Power has been designed utilising the industry standard SIP7 Package, making the IHA02 Series suitable for new or existing upgrades.

Features and Benefits
High Isolation of 5200 V, with working voltage of 250 V.
Offers single and dual output options.
Suitable for new and existing applications.
Utilises industry standard SIP 7 Package.
Wide operating range, with a full load of 65 °C.
Suitable for use with MOSFET and IGBT Drives, thanks to bipolar outputs.
MTBF rating of 2.5 MHrs.

XP Power Isolated DC-DC Converters

Specifications

Attribute	Value
Output Voltage	9V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	222mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP 7
Isolation Voltage	5.2kV dc
Length	19.5mm
Depth	10mm
Width	7.2mm
Series	IHL02
Load Regulation	0.1
Maximum Temperature	+95°C
Minimum Temperature	-40°C
Standards Met	EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
