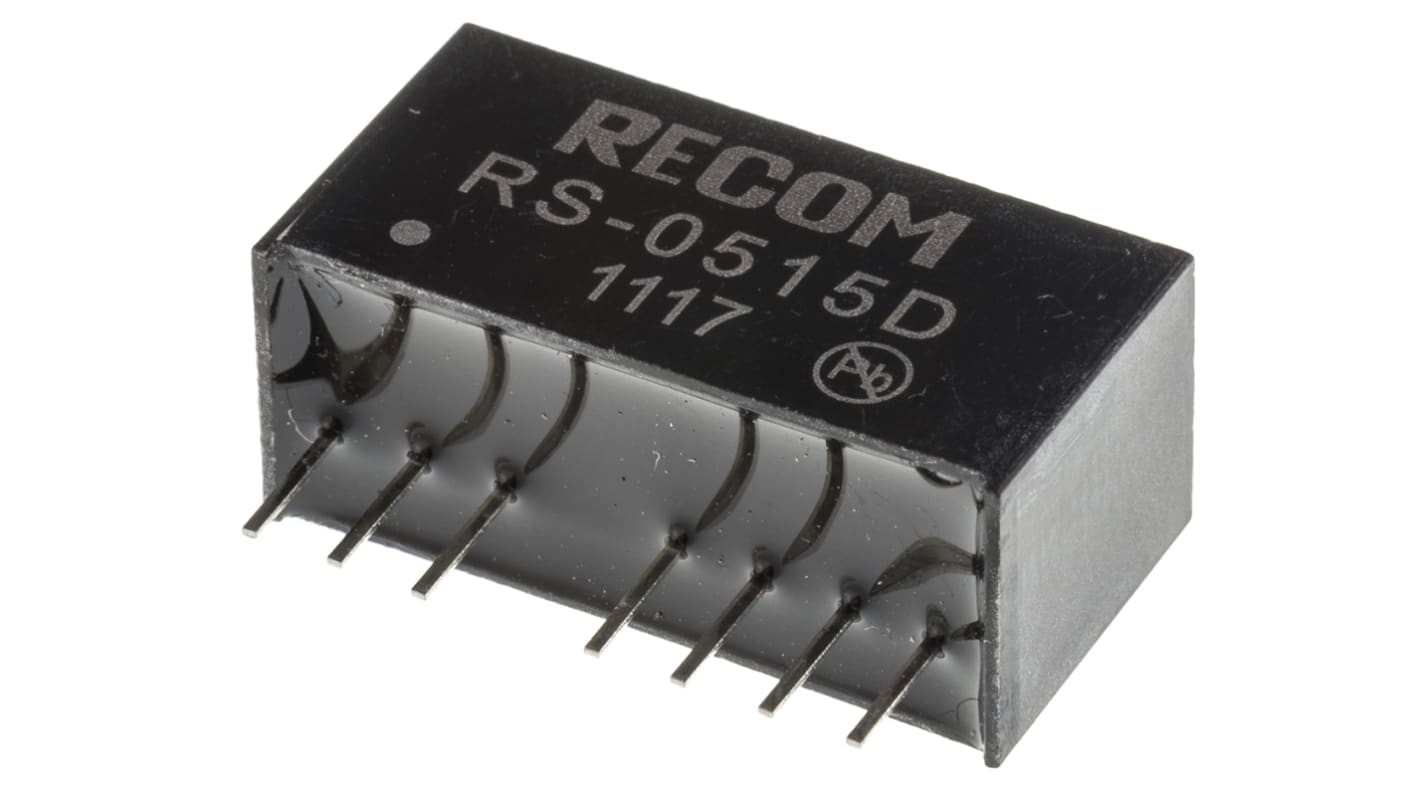

Recom RS DC/DC Converter, 15V, -15 V/ 67 mA, 9V dc Input, 4.5V Input 2 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 162-2756
Mfr. Part No.:: RS-0515D
Brand:: Recom

Recom RS DC/DC Converter, 15V, -15 V/ 67 mA, 9V dc Input, 4.5V Input 2 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

Subtotal (1 tube of 22 units)*

£306.68

(exc. VAT)

£368.02

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 31 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 +	£306.68	£13.94

*price indicative

RS Stock No.:: 162-2756
Mfr. Part No.:: RS-0515D
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage 1	15, -15V
	Product Type	DC/DC Converter
	Minimum Input Voltage	4.5V
	Maximum Input Voltage	9V dc
	Output Current 1	67mA
	Output Current 2	67mA
	Mount Type	Through Hole
	Input Ratio	2:1
	MTBF	1398h
	Number of Outputs	2
	Number of Pins	8
	Isolation Voltage	500V ac
	Package Type	SIP
	Maximum Output Power	2W
	Length	21.8mm
	Series	RS
	Depth	11.1mm
	Width	9.2mm
	Standards/Approvals	No
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Efficiency	80%

	Select all
	Brand Recom
	Output Voltage 1 15, -15V
	Product Type DC/DC Converter
	Minimum Input Voltage 4.5V
	Maximum Input Voltage 9V dc
	Output Current 1 67mA
	Output Current 2 67mA
	Mount Type Through Hole
	Input Ratio 2:1
	MTBF 1398h
	Number of Outputs 2
	Number of Pins 8
	Isolation Voltage 500V ac
	Package Type SIP
	Maximum Output Power 2W
	Length 21.8mm
	Series RS
	Depth 11.1mm
	Width 9.2mm
	Standards/Approvals No
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Efficiency 80%

Datasheet

COO (Country of Origin):: TW

RECOM DC-DC Converter, 1kV Isolation Voltage, 2 Outputs - RS Series - RS-0515D

Put the brakes on direct current flow in your electrical circuit with this DC-DC converter from RECOM. Its 1kV DC isolation puts a barrier between input and output power, which minimises the chance of ground loops and voltage interference. A wide temperature range without derating between -40°C and +75°C makes the unit reliable in demanding locations. As this converter is regulated, it provides a tight tolerance over its output voltage of 15V DC, even in a wide range of operating conditions. This makes it a good choice for complex industrial machines.

Features & Benefits

• Flame-retardant housing for safety that won't catch alight in the event of a fire

• Low noise, so helps to keep your environment comfortable

• Power rating of 2W to meet the needs of demanding systems

• Typical efficiency of 83% means minimal power is lost during switching

Applications

• Industrial automation

• Mining and minerals processing

• Oil refineries

• Automotive manufacturing

Is this DC-DC converter protected against short circuits?

Yes, to minimise the chance of electrical faults causing damage to your equipment, the unit is continually protected against short circuits.
