Artesyn / Advanced Energy AXA DC-DC Converter, 5V dc/ 2A Output, 9 → 36 V dc Input, 10W, Through Hole, +80°C Max
- RS Stock No.:
- 162-1939
- Mfr. Part No.:
- AXA02A18-L
- Brand:
- Artesyn / Advanced Energy
Bulk discount available
Subtotal (1 tube of 10 units)*
£452.21
(exc. VAT)
£542.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £452.21 | £45.221 |
| 5 - 9 | £434.12 | £43.412 |
| 10 - 24 | £420.55 | £42.055 |
| 25 - 49 | £397.95 | £39.795 |
| 50 + | £370.81 | £37.081 |
*price indicative
- RS Stock No.:
- 162-1939
- Mfr. Part No.:
- AXA02A18-L
- Brand:
- Artesyn / Advanced Energy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Artesyn / Advanced Energy | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 2A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.16mm | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Series | AXA | |
| Load Regulation | -0.5 → +0.5% | |
| Maximum Temperature | +80°C | |
| Standards Met | CB Scheme, CSA Certificate, cUL/UL 60950-1, EN55022, FCC, IEC/EN 60950-1 | |
| Efficiency | 84% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Artesyn / Advanced Energy | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.16mm | ||
Length 25.4mm | ||
Width 25.4mm | ||
Series AXA | ||
Load Regulation -0.5 → +0.5% | ||
Maximum Temperature +80°C | ||
Standards Met CB Scheme, CSA Certificate, cUL/UL 60950-1, EN55022, FCC, IEC/EN 60950-1 | ||
Efficiency 84% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- CN

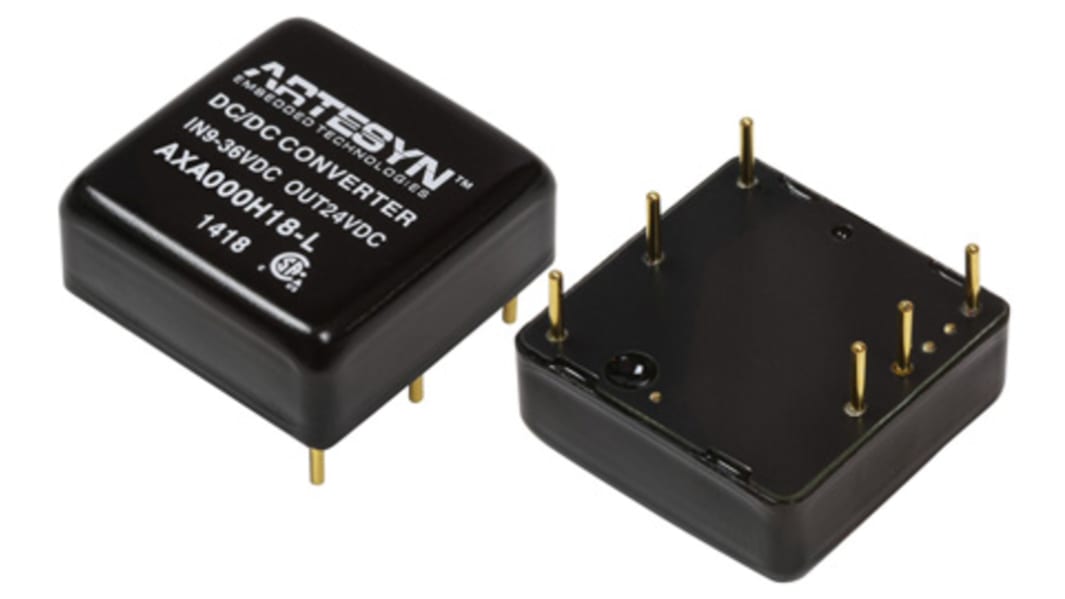

Artesyn AXA Series Isolated DC / DC Converter
Artesyn AXA series of isolated DC / DC converters offer an ultra compact DIP or SIP package, with a low profile of 8 mm. The series offers a highly efficient option of up to 87% with an ultra-wide 4:1 input range. The AXA series alows offers a remote on/off functionality, adding an extra layer of customisation for your application.
The AXA series is also qualified for lead-free reflow solder process according to IPC/JEDEC J-STD-020D.
The AXA series is also qualified for lead-free reflow solder process according to IPC/JEDEC J-STD-020D.
Features and Benefits
Single & dual output.
Ultra compact DIP & SIP options.
Metal cased with isolated baseplate.
Remote on/off functionality.
Input filter adheres to EN55022, class A & FCC level A.
Standards
UL/cUL 60950-1, IEC/EN 60950-1
Artesyn Isolated DC / DC Converter
