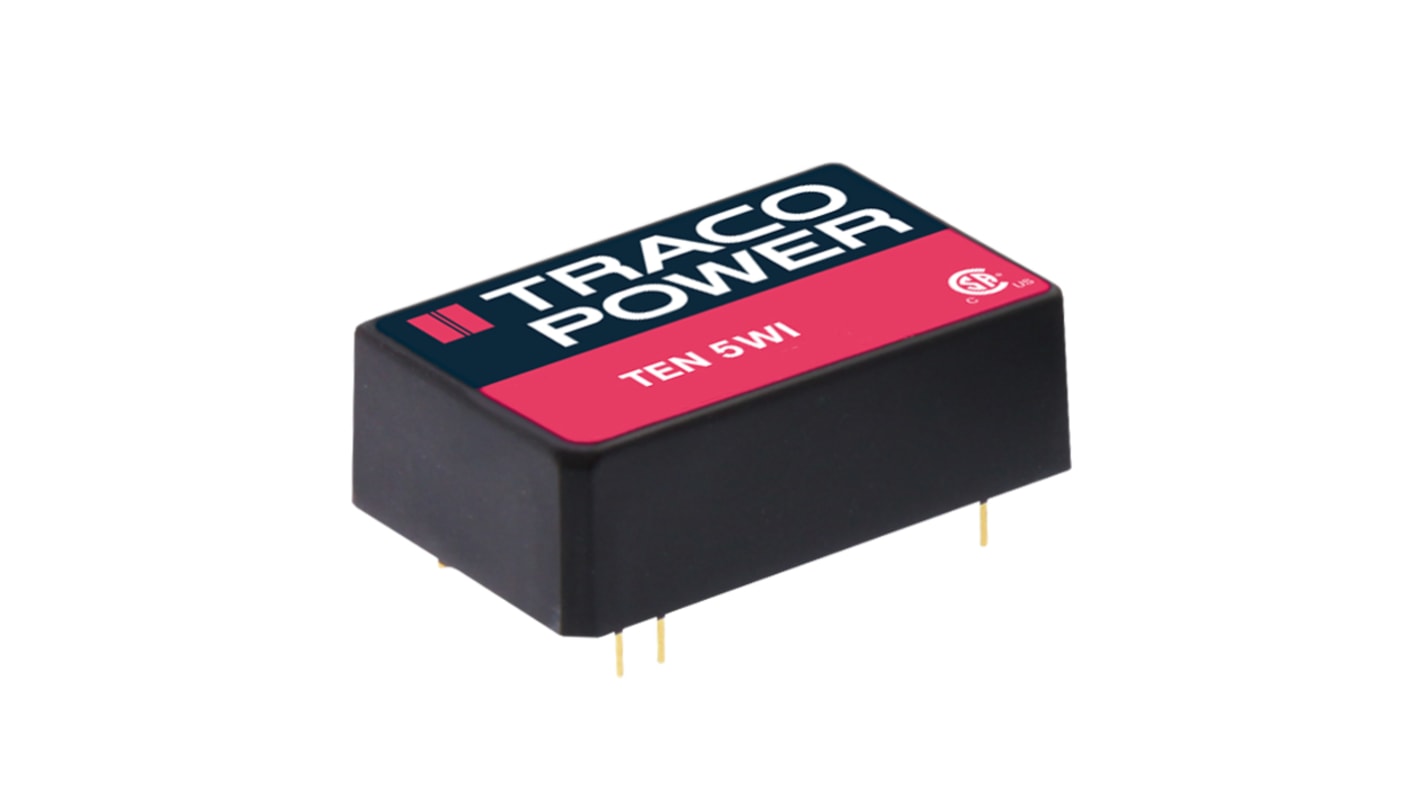

TRACOPOWER TEN 5WI DC-DC Converter, ±5V dc/ ±500mA Output, 9 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-9725
- Mfr. Part No.:
- TEN 5-2421WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£256.10
(exc. VAT)
£307.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £256.10 | £25.61 |
5 - 9 | £248.42 | £24.842 |
10 - 24 | £240.73 | £24.073 |
25 - 49 | £230.49 | £23.049 |
50 + | £220.24 | £22.024 |
*price indicative
- RS Stock No.:
- 161-9725
- Mfr. Part No.:
- TEN 5-2421WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±5V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 6W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±500mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 24 | |
Isolation Voltage | 1.5kV dc | |
Depth | 10mm | |
Width | 20mm | |
Length | 32mm | |
Series | TEN 5WI | |
Load Regulation | ±5% | |
Maximum Temperature | +85°C | |
Efficiency | 79% | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±500mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10mm | ||
Width 20mm | ||
Length 32mm | ||
Series TEN 5WI | ||
Load Regulation ±5% | ||
Maximum Temperature +85°C | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 1.5kV Isolation Voltage, 78% Efficiency - TEN 5WI Series - TEN 5-2421WI
Choose this DC-DC converter from Traco Power for smooth power delivery to your PCB-linked parts. It takes an input voltage ranging between 9 and 36V DC and steps it down to a stabilised ±5V DC that's safe for use in everything from wind turbines to hybrid vehicles. The unit features over-voltage protection, ensuring that sensitive electric components aren't damaged during a power spike. With compact dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D), this device won't take up much space on a busy board.
Features & Benefits
• Mean time between failures of more than 800,000 hours at +25°C for long-lasting performance
• Comes in a DIP-24 format that's easy to integrate into various systems
• Non-conductive FR4 baseplate material acts as an insulator between your board and the unit's housing
• Integrated input filter cuts out the risk of EMI in sensitive electronic equipment
• 5W power rating for use in medium-duty applications
• Comes in a DIP-24 format that's easy to integrate into various systems
• Non-conductive FR4 baseplate material acts as an insulator between your board and the unit's housing
• Integrated input filter cuts out the risk of EMI in sensitive electronic equipment
• 5W power rating for use in medium-duty applications
Applications
• Manufacturing facilities
• Solar arrays
• Military technology
• Solar arrays
• Military technology
Can this unit handle surge voltages?
Yes, it puts an isolation barrier of up to 1.5kV DC between its input and outputs, so your equipment doesn't get damaged by power surges.
