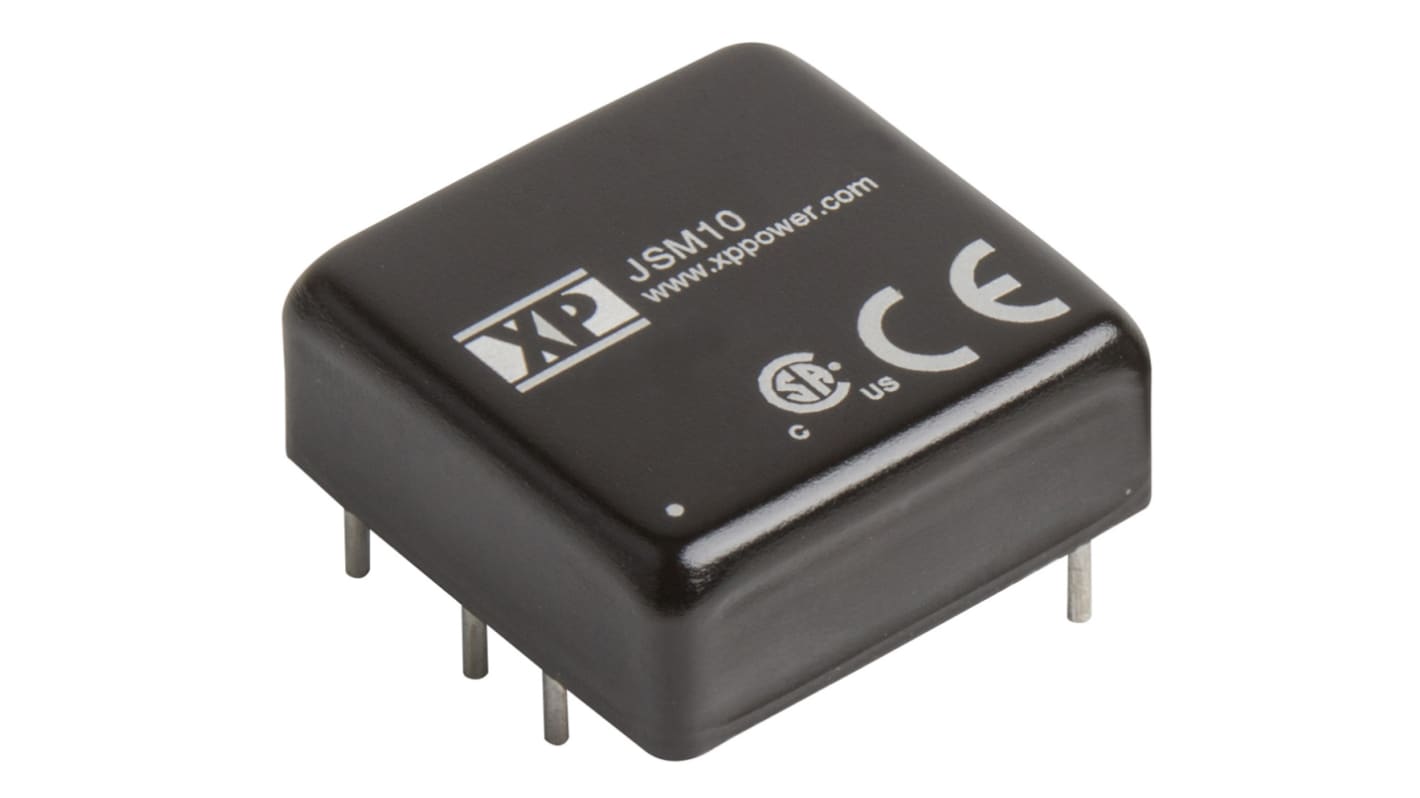

XP Power JSM10 DC-DC Converter, 3.3V dc/ 2.5A Output, 36 → 75 V dc Input, 10W, Through Hole, +100°C Max Temp

RS Stock No.:: 161-9004
Mfr. Part No.:: JSM1048S3V3
Brand:: XP Power

Technical Reference

XP Power JSM10 DC-DC Converter, 3.3V dc/ 2.5A Output, 36 → 75 V dc Input, 10W, Through Hole, +100°C Max Temp

View this category

Available to back order for despatch 14/01/2025

Price 1 Tube of 10

£235.10

(exc. VAT)

£282.12

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£235.10	£23.51
5 - 9	£228.05	£22.805
10 - 24	£220.99	£22.099
25 - 49	£213.94	£21.394
50 +	£206.89	£20.689

*price indicative

RS Stock No.:: 161-9004
Mfr. Part No.:: JSM1048S3V3
Brand:: XP Power

COO (Country of Origin):: TW

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	36 → 75 V dc
Power Rating	10W
Input Voltage Nominal	48 V dc
Output Current	2.5A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 1 in
Isolation Voltage	1.5kV dc
Depth	10.16mm
Width	25.4mm
Length	25.4mm
Series	JSM10
Load Regulation	±0.5%
Minimum Temperature	-40°C
Maximum Temperature	+100°C
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1

XP Power JSM10 DC-DC Converter, 3.3V dc/ 2.5A Output, 36 → 75 V dc Input, 10W, Through Hole, +100°C Max Temp

Technical Reference

XP Power - JSM10 Series of Isolated DC-DC Converters
