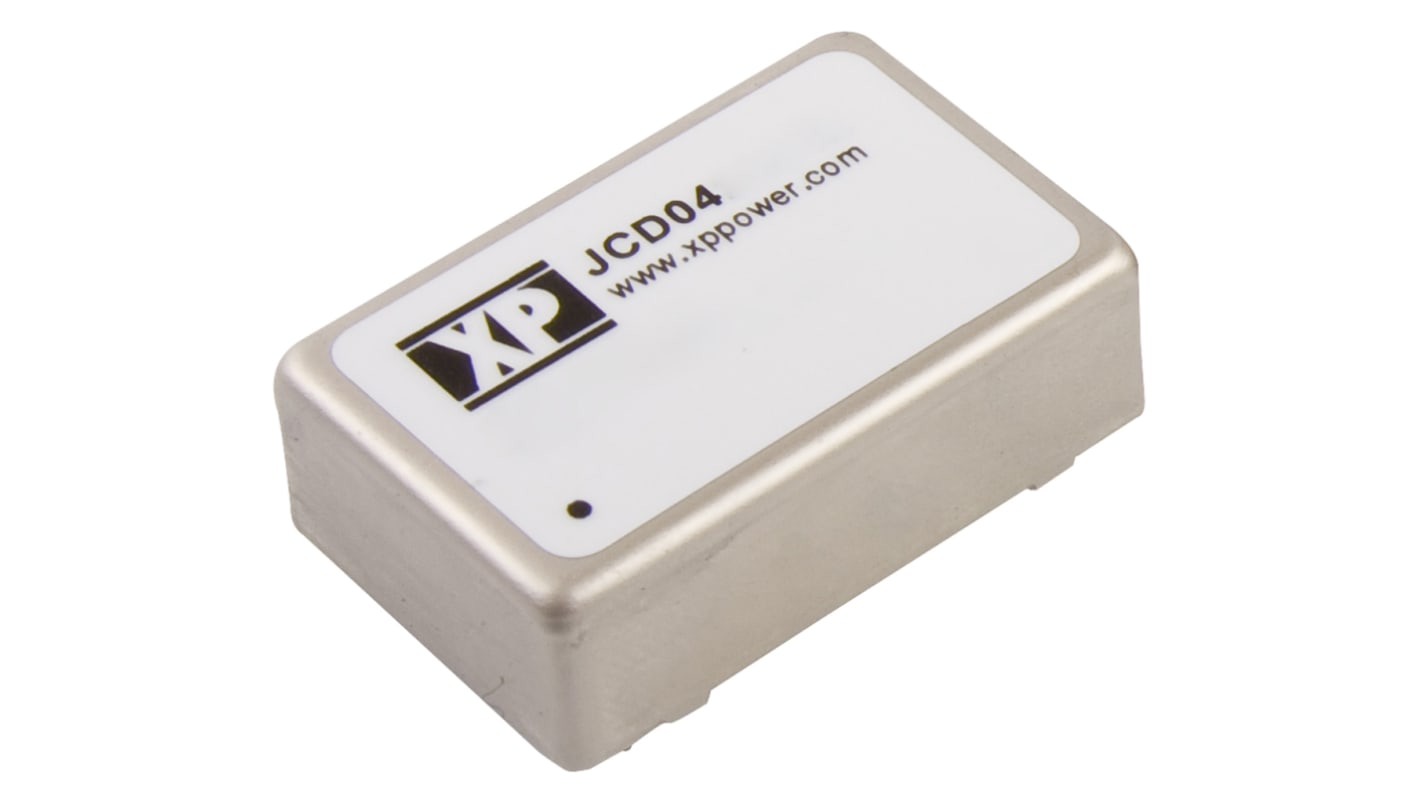

XP Power JCD DC/DC Converter, 9V dc/ 220 mA, 18V dc Input, 9V dc Input 4 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£155.00

(exc. VAT)

£186.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£155.00£15.50
5 - 9£150.35£15.035
10 - 24£145.70£14.57
25 - 49£141.05£14.105
50 +£136.40£13.64

*price indicative

RS Stock No.:
161-8906
Mfr. Part No.:
JCD0412D09
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

9V dc

Minimum Input Voltage

9V dc

Maximum Input Voltage

18V dc

Output Current 1

220mA

Output Current 2

220mA

Mount Type

Through Hole

Output Voltage 2

-9V dc

Input Ratio

2:1

MTBF

1100000h

Number of Outputs

2

Output Voltage Adjustment Range

±8.91 V dc, ±9.09 V dc

Number of Pins

8

Isolation Voltage

1.6kV dc

Maximum Output Power

4W

Package Type

DIP

Width

20.32mm

Series

JCD

Length

31.75mm

Depth

10.4mm

Standards/Approvals

RoHS

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

Efficiency

80%

COO (Country of Origin):
TW

XP Power - JCD Series of 4 W to 6 W Isolated DC-DC Converters


The JCD series from XP Power offers a highly reliable range of single and dual output, 4 W to 6 W, isolated DC-DC converters. The range attributes 1600 VDC in isolation, continuous short circuit protection and a high efficiency of up to 85%. The series also has a 2:1 input range and is available in a compact, industry standard package.

4 W to 6 W, isolated DC-DC converters

Compact, industry standard package

2:1 input range

1600 VDC in isolation

Single and dual output

High efficiency up to 85%

Continuous short circuit protection

Board mount

-40 °C to +100 °C Operating temperature

XP Power - Isolated DC-DC Converters
