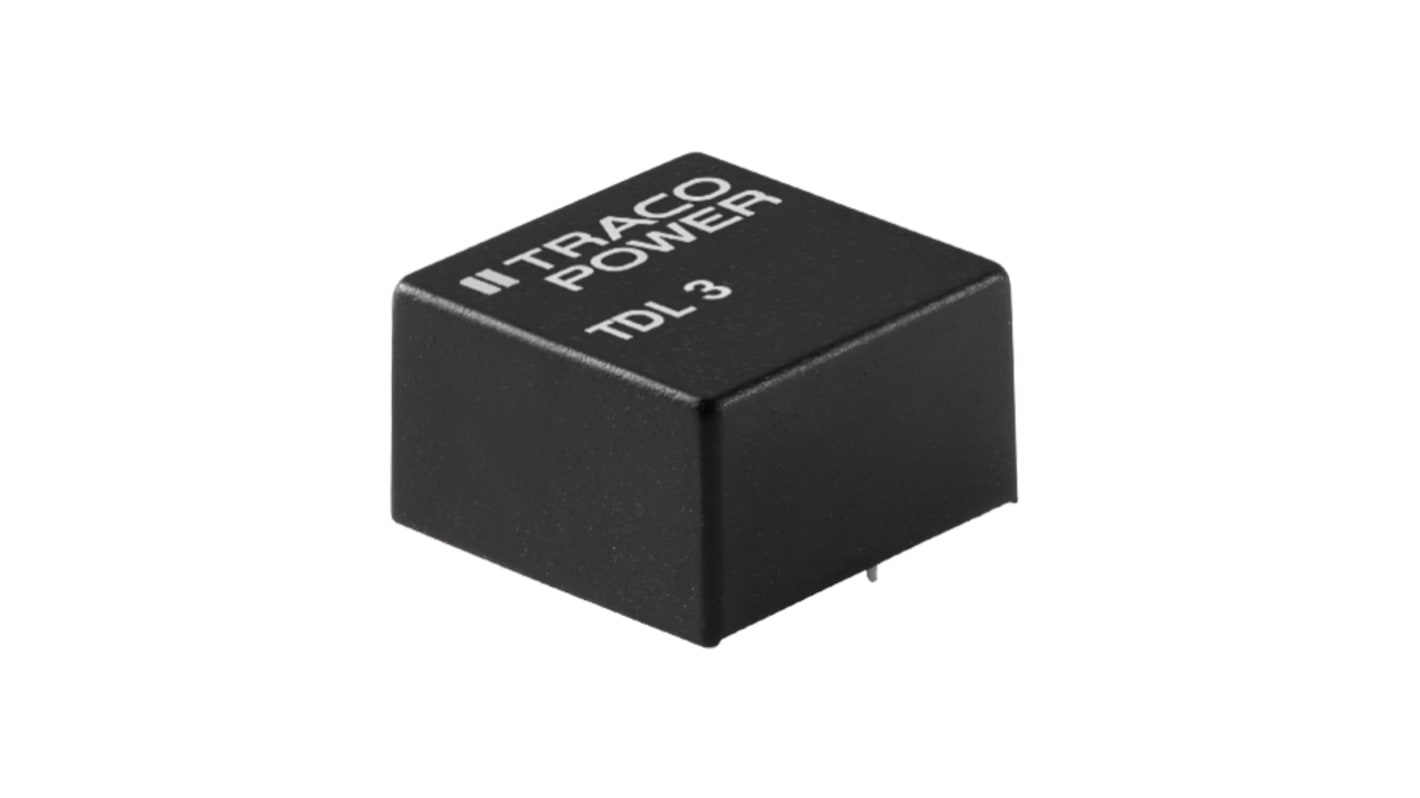

TRACOPOWER TDL 3 DC-DC Converter, ±12V dc/ ±125mA Output, 9 → 18 V dc Input, 3W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 161-6688
- Mfr. Part No.:
- TDL 3-1222
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£191.05
(exc. VAT)
£229.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £191.05 | £19.105 |
| 5 - 9 | £185.32 | £18.532 |
| 10 - 24 | £179.59 | £17.959 |
| 25 - 49 | £171.95 | £17.195 |
| 50 + | £164.31 | £16.431 |
*price indicative
- RS Stock No.:
- 161-6688
- Mfr. Part No.:
- TDL 3-1222
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±125mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 7.87mm | |
| Length | 13.97mm | |
| Width | 13.97mm | |
| Series | TDL 3 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +80°C | |
| Standards Met | cULus Recognised | |
| Efficiency | 86% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 7.87mm | ||
Length 13.97mm | ||
Width 13.97mm | ||
Series TDL 3 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +80°C | ||
Standards Met cULus Recognised | ||
Efficiency 86% | ||
