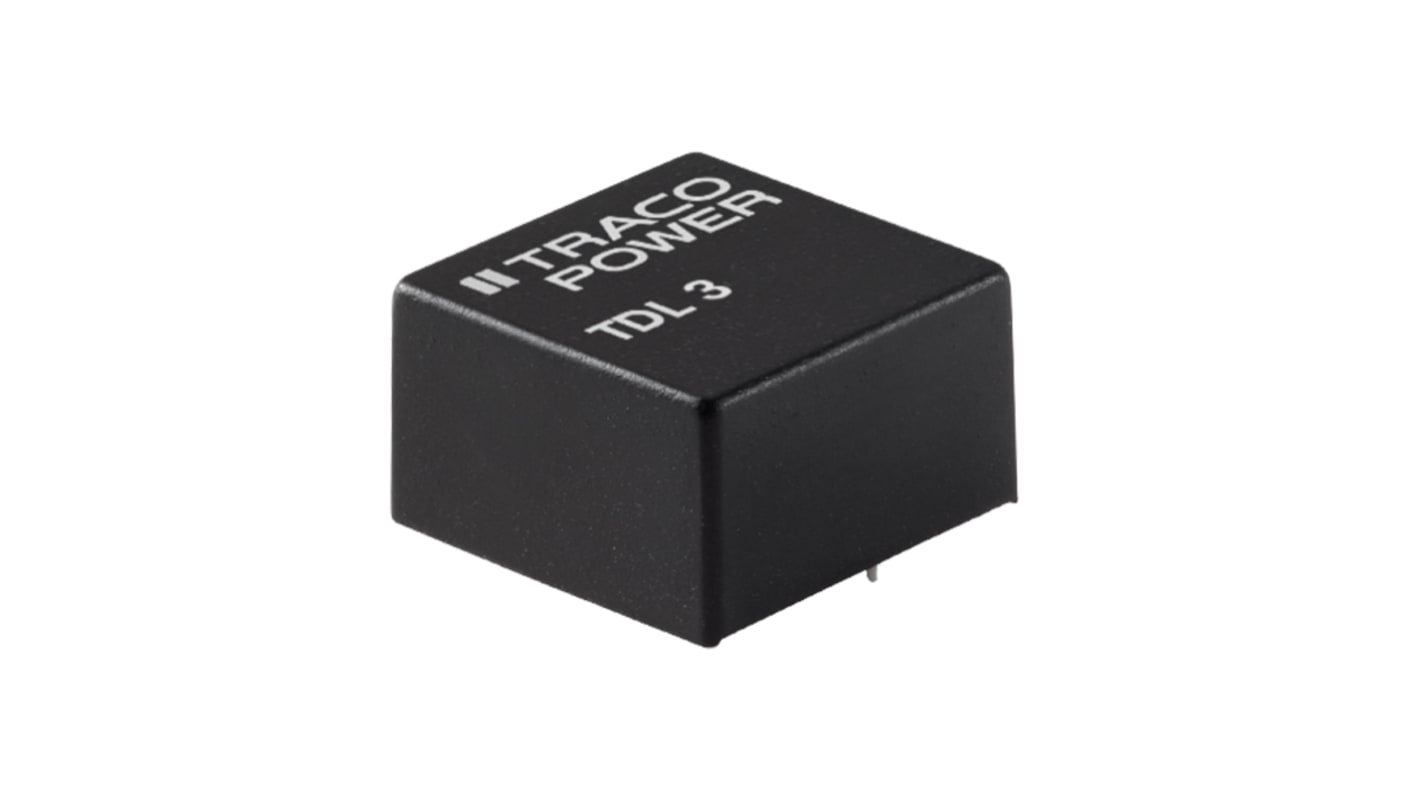

TRACOPOWER TDL 3 DC-DC Converter, ±5V dc/ ±300mA Output, 4.5 → 10 V dc Input, 3W, Through Hole, +80°C Max Temp

RS Stock No.:: 161-6676
Mfr. Part No.:: TDL 3-0521
Brand:: TRACOPOWER

TRACOPOWER TDL 3 DC-DC Converter, ±5V dc/ ±300mA Output, 4.5 → 10 V dc Input, 3W, Through Hole, +80°C Max Temp

Available to back order for despatch 28/08/2024

Added

Price 1 Tube of 10

£183.65

(exc. VAT)

£220.38

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£183.65	£18.365
5 - 9	£178.14	£17.814
10 - 24	£172.63	£17.263
25 - 49	£165.29	£16.529
50 +	£157.94	£15.794
*price indicative

RS Stock No.:: 161-6676
Mfr. Part No.:: TDL 3-0521
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TDL 3 Series

Range of fully isolated DC-DC converters from Tracopower provides a compact DIP packaged solution. The TDL 3 series offers a 2:1 input voltage range, with various 3 W options. Can be used in various applications, such as space-restricted applications and can be remotely switched on, or off.

Specifications

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	4.5 → 10 V dc
Power Rating	3W
Input Voltage Nominal	5 V dc
Output Current	±300mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP
Isolation Voltage	1.5kV dc
Depth	7.87mm
Width	13.97mm
Length	13.97mm
Series	TDL 3
Efficiency	82%
Minimum Temperature	-40°C
Standards Met	cULus Recognised
Maximum Temperature	+80°C
