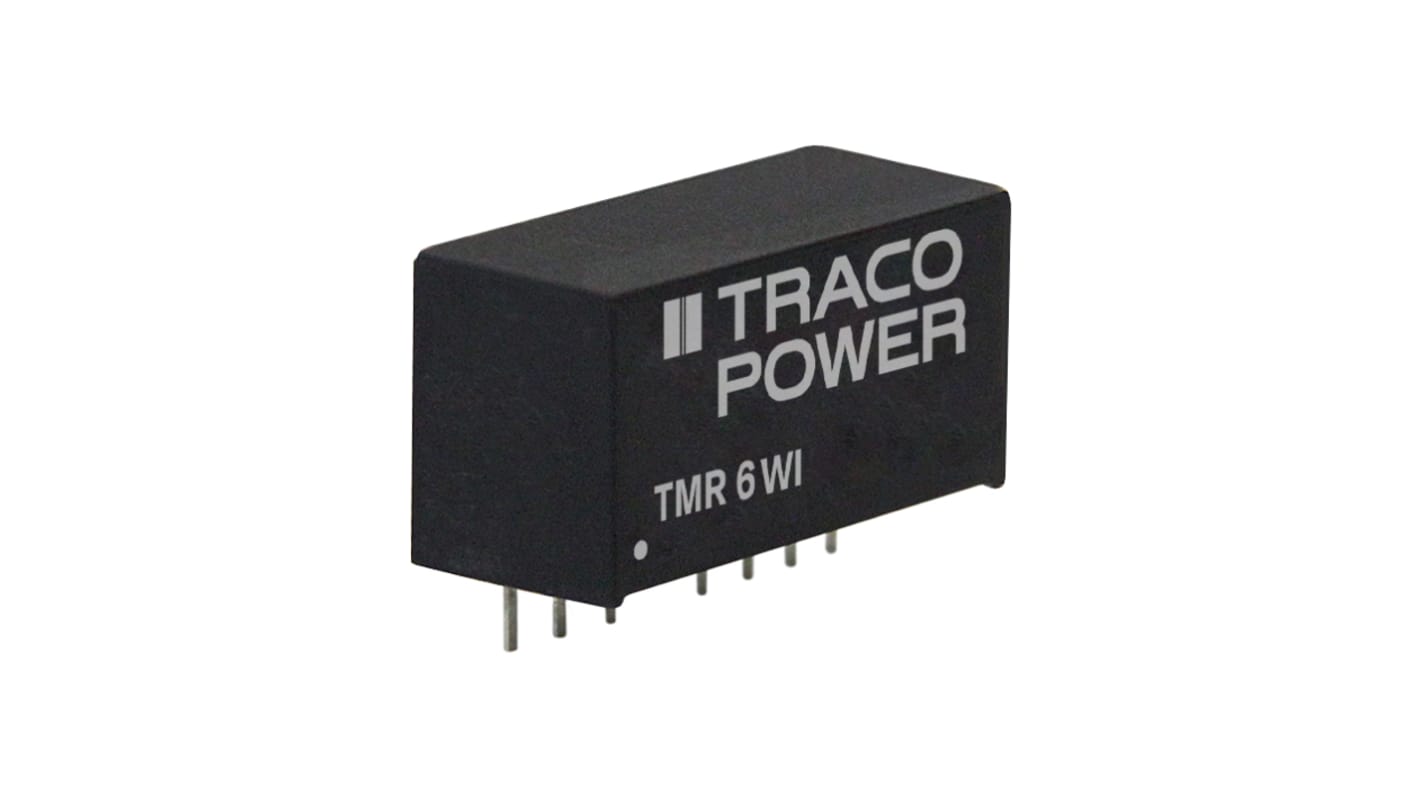

TRACOPOWER TMR 6WI DC-DC Converter, 24V dc/ 250mA Output, 18 → 36 V dc Input, 6W, Through Hole, +65°C Max Temp
- RS Stock No.:
- 161-6635
- Mfr. Part No.:
- TMR 6-2415WI
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£173.48
(exc. VAT)
£208.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 23 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £173.48 | £17.348 |
*price indicative
- RS Stock No.:
- 161-6635
- Mfr. Part No.:
- TMR 6-2415WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 11.2mm | |
| Length | 21.8mm | |
| Series | TMR 6WI | |
| Load Regulation | 0.01 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +65°C | |
| Efficiency | 85% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 11.2mm | ||
Length 21.8mm | ||
Series TMR 6WI | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +65°C | ||
Efficiency 85% | ||
