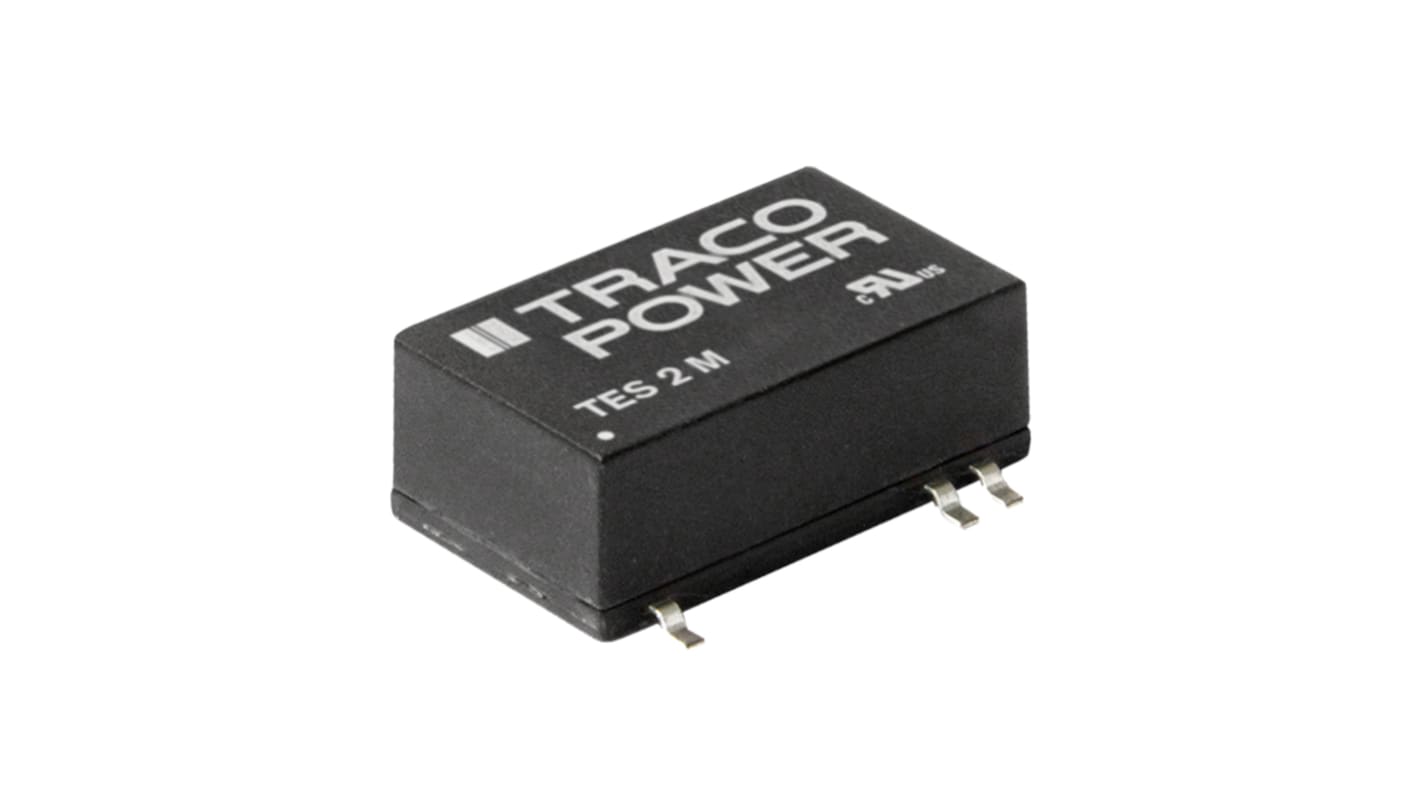

TRACOPOWER TES 2M DC-DC Converter, 15V dc/ 133mA Output, 21.6 → 26.4 V dc Input, 2W, Surface Mount, +71°C Max
- RS Stock No.:
- 161-6604
- Mfr. Part No.:
- TES 2-2413M
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£242.13
(exc. VAT)
£290.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £242.13 | £24.213 |
| 5 - 9 | £234.87 | £23.487 |
| 10 - 24 | £227.61 | £22.761 |
| 25 - 49 | £217.92 | £21.792 |
| 50 + | £208.24 | £20.824 |
*price indicative
- RS Stock No.:
- 161-6604
- Mfr. Part No.:
- TES 2-2413M
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 133mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SMD | |
| Isolation Voltage | 4kV ac | |
| Depth | 8.75mm | |
| Width | 13.7mm | |
| Length | 24mm | |
| Series | TES 2M | |
| Railway Approved | No | |
| Load Regulation | ±10% | |
| Efficiency | 66% | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +71°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 133mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SMD | ||
Isolation Voltage 4kV ac | ||
Depth 8.75mm | ||
Width 13.7mm | ||
Length 24mm | ||
Series TES 2M | ||
Railway Approved No | ||
Load Regulation ±10% | ||
Efficiency 66% | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Maximum Temperature +71°C | ||
