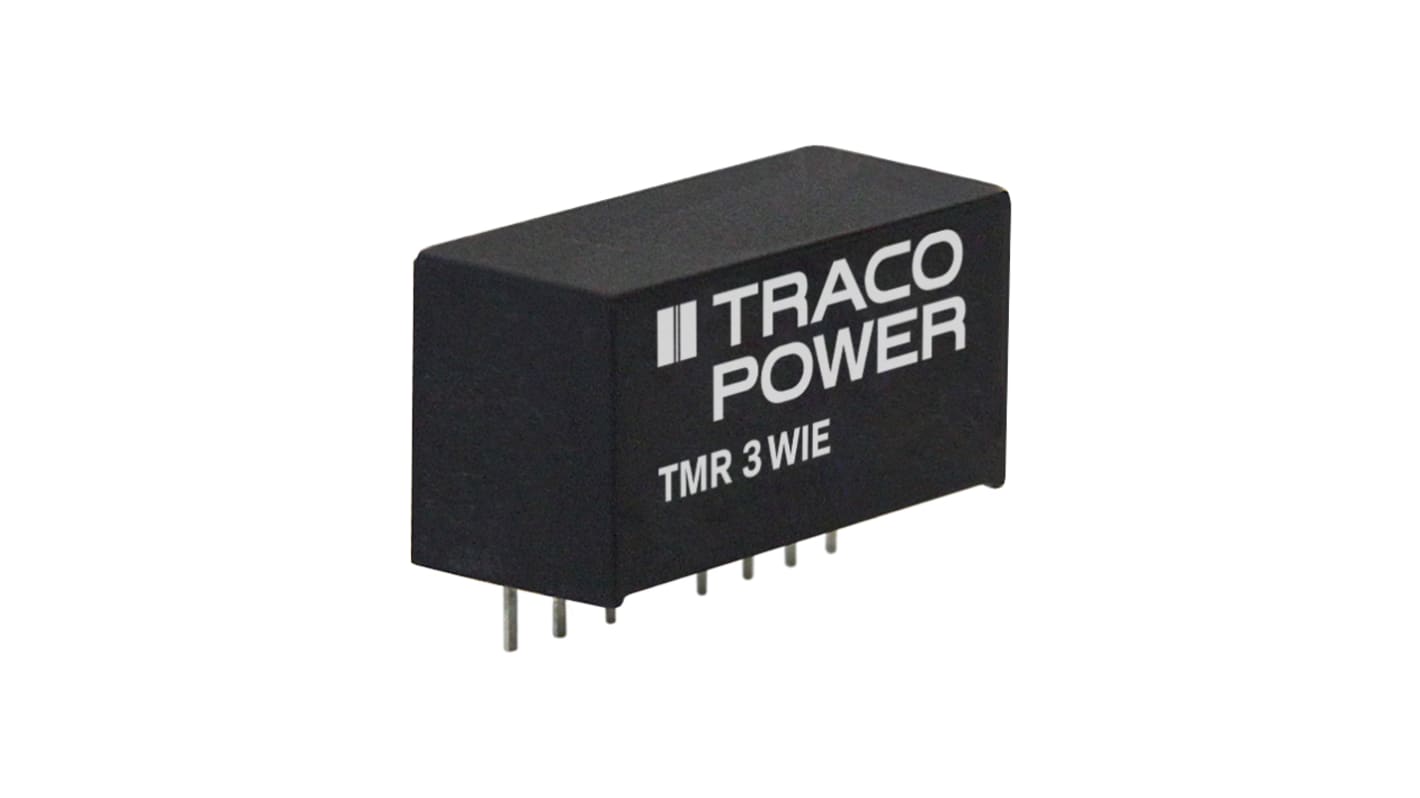

TRACOPOWER TMR 3WIE DC-DC Converter, 15V dc/ 200mA Output, 4.5 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6580
- Mfr. Part No.:
- TMR 3-1213WIE
- Brand:
- TRACOPOWER
Available to back order for despatch 19/08/2024
Added
Price 1 Tube of 10
£136.51
(exc. VAT)
£163.81
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £136.51 | £13.651 |
| 5 - 9 | £132.41 | £13.241 |
| 10 - 24 | £128.32 | £12.832 |
| 25 - 49 | £122.86 | £12.286 |
| 50 + | £117.40 | £11.74 |
| *price indicative | ||
- RS Stock No.:
- 161-6580
- Mfr. Part No.:
- TMR 3-1213WIE
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W SIP Single/Dual Output Regulated Isolated DC-DC Converter - TMR 3WIE Series
The TMR-3WIE series is a family of 3W single/dual output DC/DC converters with a compact SIP-8 package, regulated output and a wide 4:1 input voltage range. These Traco Power 3W single/dual output DC/DC converters are highly efficient allowing a -40 to +85°C operating temperature range. The compact size of these single/dual output DC/DC converters make them ideal for use in applications such as communication equipment, instrumentation and industrial electronics.
Wide 4:1 input voltage range
Compact SIP_8 package
Cost optimized design
Temperature range -40℃ to + 85℃
I/O isolation 1600 VDC
Remote On/Off control
3 year product warranty
Compact SIP_8 package
Cost optimized design
Temperature range -40℃ to + 85℃
I/O isolation 1600 VDC
Remote On/Off control
3 year product warranty
Standards
UL/cUL 60950-1, EN 60950-1, IEC 60950-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 4.5 → 18 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 200mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 8 |
| Isolation Voltage | 1.5kV dc |
| Depth | 11.2mm |
| Length | 21.8mm |
| Series | TMR 3WIE |
| Load Regulation | 0.01 |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Efficiency | 80% |
