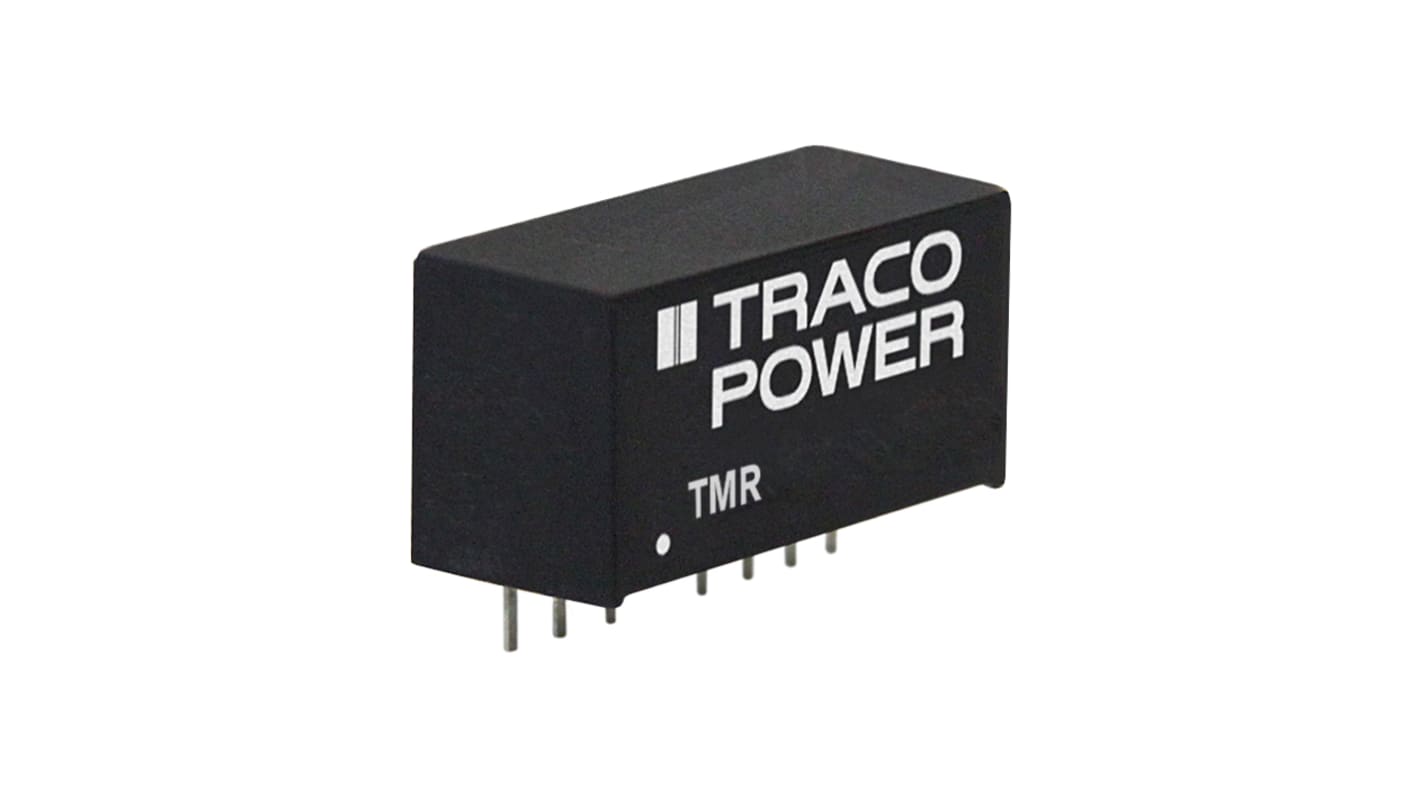

TRACOPOWER TMR 2 DC-DC Converter, ±15V dc/ ±65mA Output, 9 → 18 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6540
- Mfr. Part No.:
- TMR 1223
- Brand:
- TRACOPOWER
Save 14% when you buy 50 units
Subtotal (1 tube of 10 units)*
£139.06
(exc. VAT)
£166.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £139.06 | £13.906 |
| 5 - 9 | £134.89 | £13.489 |
| 10 - 24 | £130.72 | £13.072 |
| 25 - 49 | £125.15 | £12.515 |
| 50 + | £119.59 | £11.959 |
*price indicative
- RS Stock No.:
- 161-6540
- Mfr. Part No.:
- TMR 1223
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±65mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP 8 | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 11.1mm | |
| Width | 9.2mm | |
| Length | 21.8mm | |
| Series | TMR 2 | |
| Load Regulation | ±1% | |
| Efficiency | 84% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±65mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP 8 | ||
Isolation Voltage 1.6kV dc | ||
Depth 11.1mm | ||
Width 9.2mm | ||
Length 21.8mm | ||
Series TMR 2 | ||
Load Regulation ±1% | ||
Efficiency 84% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
