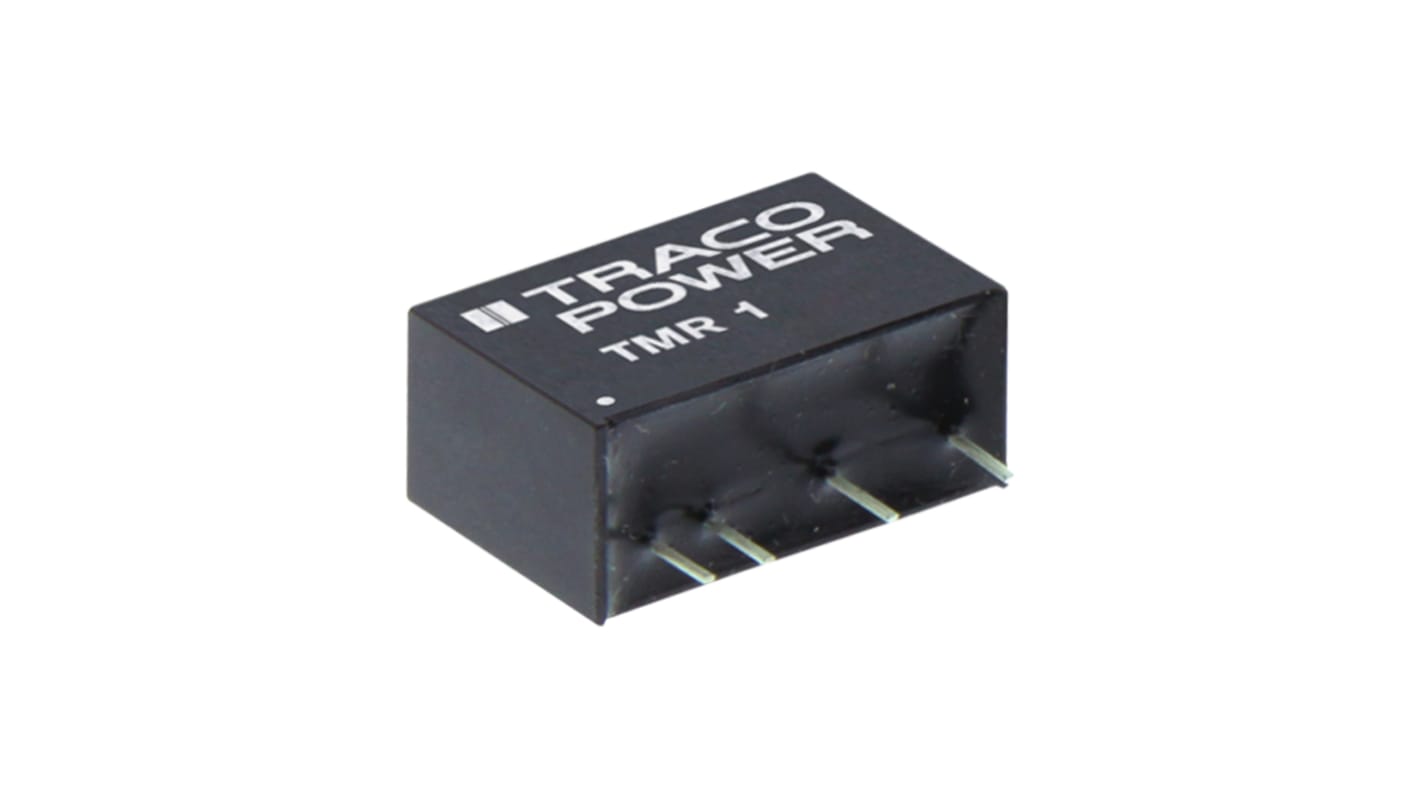

TRACOPOWER TMR 1 DC-DC Converter, 24V dc/ 42mA Output, 36 → 75 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6534
- Mfr. Part No.:
- TMR 1-4815
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£83.39
(exc. VAT)
£100.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £83.39 | £8.339 |
| 5 - 9 | £80.90 | £8.09 |
| 10 - 24 | £78.38 | £7.838 |
| 25 - 49 | £75.05 | £7.505 |
| 50 + | £71.72 | £7.172 |
*price indicative
- RS Stock No.:
- 161-6534
- Mfr. Part No.:
- TMR 1-4815
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 42mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1.5kV dc | |
| Length | 17mm | |
| Depth | 7.62mm | |
| Series | TMR 1 | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +85°C | |
| Efficiency | 78% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 42mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Length 17mm | ||
Depth 7.62mm | ||
Series TMR 1 | ||
Load Regulation 0.01 | ||
Maximum Temperature +85°C | ||
Efficiency 78% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, SIP-6 Format, 78% Efficiency - TMR 1 Series - TMR 1-4815
For efficient power distribution where space is limited, reach for this DC-DC converter from Traco Power. An ultra-compact SIP-6 format means it has a small footprint – dimensions of 17 (L) x 7.62 (W) x 11mm (D) ensure the unit won't crowd your PCB. It accepts a wide 2:1 range of input voltages between 36 and 75V DC, dialling them down to a fully regulated 24V DC output. Integral short-circuit protection stops power faults in their tracks and cuts out the risk of electric shocks.
Features & Benefits
• 1.5kV DC isolation voltage protects equipment from spikes
• Stands firm against industrial vibration thanks to stable through-hole mounting
• Broad operating temperature range between -40°C and +95°C makes it suitable for use in extreme conditions
• Maximum ripple and noise of 110mVp-p keeps your system humming along without interference
• Stands firm against industrial vibration thanks to stable through-hole mounting
• Broad operating temperature range between -40°C and +95°C makes it suitable for use in extreme conditions
• Maximum ripple and noise of 110mVp-p keeps your system humming along without interference
Applications
• Mechanical engineering
• Industrial process controls
• Data servers
• Industrial process controls
• Data servers
How efficient is this DC-DC converter?
The unit hits 78% efficiency at full load, so saves energy and doesn't produce excess heat.
How much does this device weigh?
It tips the scales at just 3.1g, making it an ultra-lightweight choice that won't strain your board.
