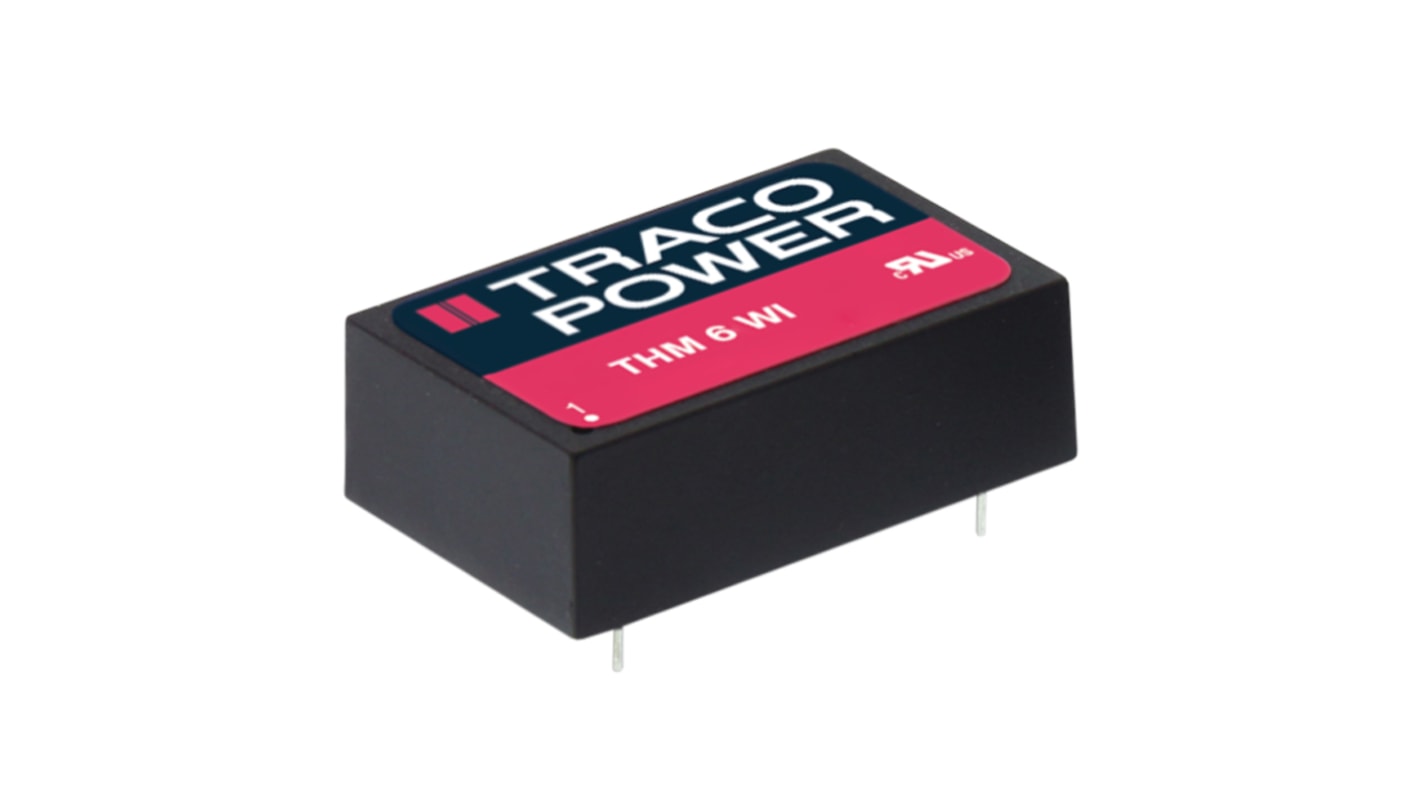

TRACOPOWER THM 6WI DC-DC Converter, 24V dc/ 250mA Output, 18 → 75 V dc Input, 6W, Through Hole, +88°C Max Temp
- RS Stock No.:
- 161-6499
- Mfr. Part No.:
- THM 6-4815WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£454.90
(exc. VAT)
£545.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £454.90 | £45.49 |
| 5 - 9 | £441.25 | £44.125 |
| 10 - 24 | £427.60 | £42.76 |
| 25 - 49 | £409.41 | £40.941 |
| 50 + | £391.21 | £39.121 |
*price indicative
- RS Stock No.:
- 161-6499
- Mfr. Part No.:
- THM 6-4815WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 5kV ac | |
| Depth | 10.2mm | |
| Length | 31.8mm | |
| Series | THM 6WI | |
| Railway Approved | No | |
| Load Regulation | 0.002 | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +88°C | |
| Efficiency | 88% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 5kV ac | ||
Depth 10.2mm | ||
Length 31.8mm | ||
Series THM 6WI | ||
Railway Approved No | ||
Load Regulation 0.002 | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Maximum Temperature +88°C | ||
Efficiency 88% | ||
