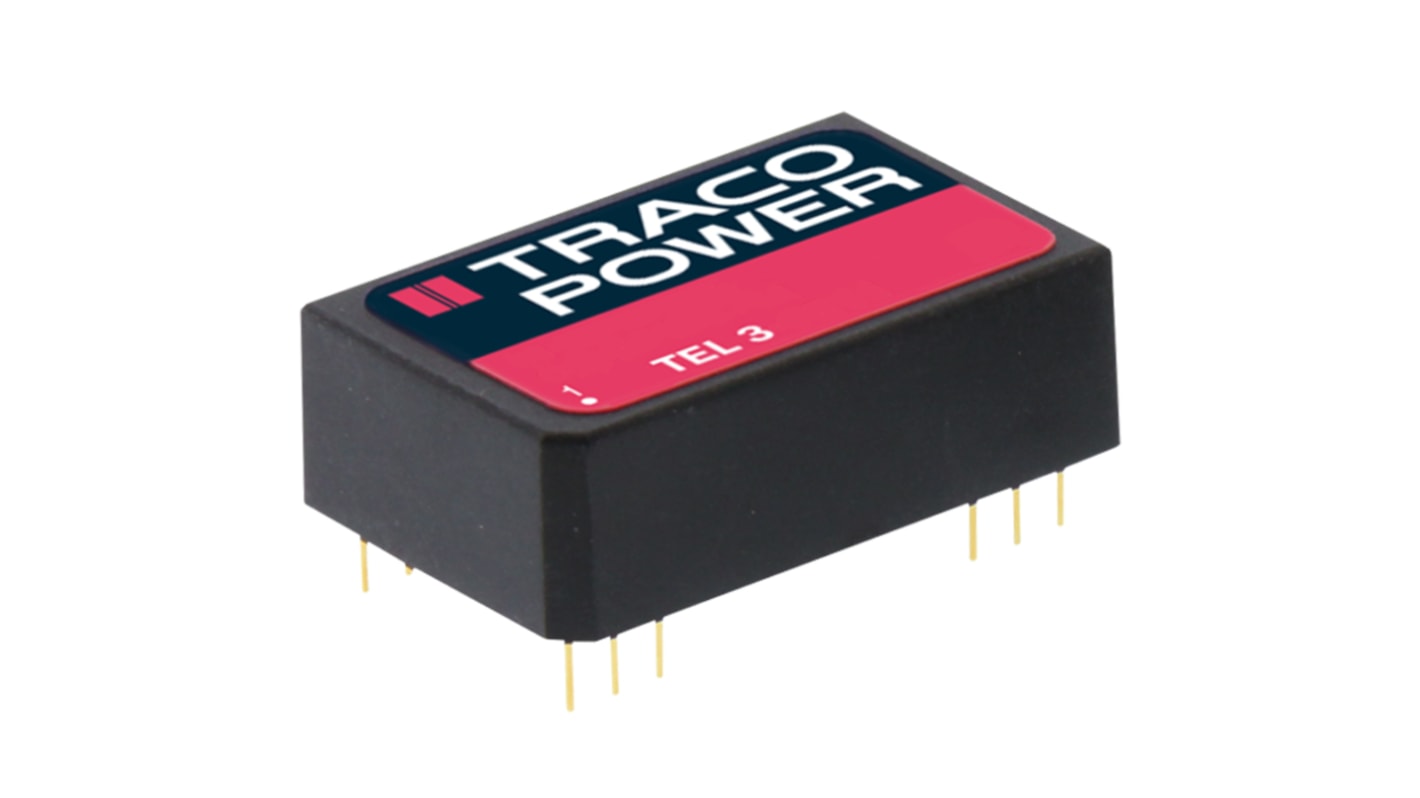

TRACOPOWER TEL 3 DC-DC Converter, 5V dc/ 600mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-6474
- Mfr. Part No.:
- TEL 3-1211
- Brand:
- TRACOPOWER
4 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£123.77
(exc. VAT)
£148.52
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £123.77 | £12.377 |
| 5 - 9 | £120.06 | £12.006 |
| 10 - 24 | £116.34 | £11.634 |
| 25 - 49 | £111.39 | £11.139 |
| 50 + | £106.44 | £10.644 |
| *price indicative | ||
- RS Stock No.:
- 161-6474
- Mfr. Part No.:
- TEL 3-1211
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, ±0.5% Load Regulation, 32 (L) x 20 (W) x 10.2mm (D) - TEL 3 Series - TEL 3-1211
Looking to take DC inputs from a wide range and turn them into a tightly regulated output voltage? This DC-DC converter from Traco Power will do the job. It accepts input voltages anywhere between 9 and 18V DC, converting them into a clean and stable 5V DC output. Tight load regulation of ±0.5% means you can rely on a consistent output voltage – no matter what the power demands of the load are.
Features & Benefits
• Through-hole mounting makes a robust connection with a PCB
• Safe to use in tough environments, thanks to a wide operating temperature range between -40°C and +85°C
• Indefinite short-circuit protection gives you peace of mind your components won't be damaged by faults
• 1500V DC isolation voltage keeps your downstream equipment safe from power surges on the supply side
• Safe to use in tough environments, thanks to a wide operating temperature range between -40°C and +85°C
• Indefinite short-circuit protection gives you peace of mind your components won't be damaged by faults
• 1500V DC isolation voltage keeps your downstream equipment safe from power surges on the supply side
Applications
• Industrial automation
• Renewable energy
• Data storage
• Renewable energy
• Data storage
How much ripple and noise can I expect with this unit?
The converter outputs ripple and noise of less than 60mV pk-pk. This gives you a stable and reliable voltage to help your appliances perform at their best.
Approvals
UL Recognised; EN60950; UL1950
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 1.5kV dc |
| Depth | 10.2mm |
| Width | 20mm |
| Length | 32mm |
| Series | TEL 3 |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Efficiency | 76% |
| Minimum Temperature | -40°C |
